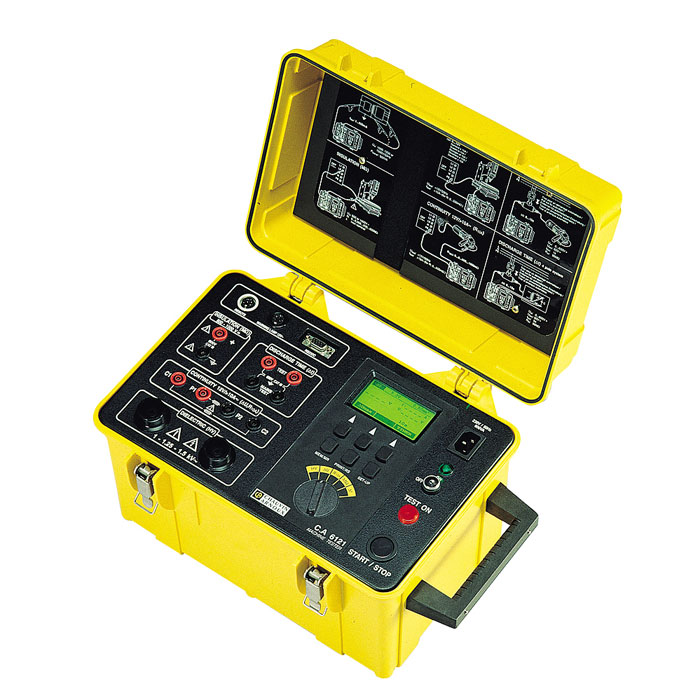

Chauvin Arnoux CA6121 Electrical Safety and Machinery Tester

SKU: CHAUCA6121
  • Performs all tests to ensure machinery complies with EN60204-1
  • Discharge time test, dielectric test, continuity test and insulation test
  • User-friendly design with strong plastic casing and clear LCD display
More Info
Discontinued

Chauvin Arnoux CA6121 Electrical Safety and Machinery Tester

This product is discontinued, please see the Chauvin Arnoux CA6155 for a suitable alternative.

The Chauvin Arnoux CA6121 Electrical Safety and Machinery Tester can test the electrical safety of machines to European Standard EN60204-1 with discharge time test (0 to 10s), insulation testing (0 to 500MΩ), continuity test (0 to 1.99Ω) and dielectric tests at 1000V, 1250V or 1500V AC.

Both two- and four-point testing are available for discharge time tests in order to assess both the terminals and the internal components. Timed insulation testing negates the issue of transient current affecting results and test voltages go up to 1200V. Continuity testing uses the four-wire method and can display in either ∆U for voltage drop or in Ω. Dielectric tests allow adjustment of the maximum current threshold from 1 to 500mA and also feature a timer. Real voltages and currents are displayed and floating HT outputs enhance user safety. The Chauvin Arnoux CA6121 also has adjustable alarms for resistance level during insulation testing and voltage drop during continuity testing.

Readings are displayed on the Chauvin Arnoux CA6121’s backlit dot matrix screen and operation is surprisingly simple thanks to the user-friendly design and straightforward interface. The correct function is selected via a simple dial whilst push buttons allow the user to navigate through the instrument’s menus and the internal memory which has enough space for 999 measurements. Data transfer to a PC is possible through an optional RS232 cable and CA6121 transfer software.

The Chauvin Arnoux CA6121 is supplied with everything needed to start work immediately including two high voltage guns on 2m cables plus a handy carry bag with shoulder strap. The sturdy, portable case makes the tester suitable for use in all manner of environments.

Chauvin Arnoux part number: P01145602

Key Features

  • Performs every test to certify machinery according to EN60204-1
  • Discharge time test range: 0 to 10s (2- or 4-point)
  • Insulation test range: 0 to 500MΩ
  • Continuity testing (∆U or Ω)
  • Dielectric test
  • Adjustable alarms for insulation and continuity tests
  • Internal memory for 999 readings
  • Data transfer to printer or PC via RS232 cable
  • Clear, backlit display and user-friendly design

What's In The Box?

  • Chauvin Arnoux CA6121 Electrical Safety and Machinery Tester
  • 1 mains lead 3-core
  • 1 set of 2 keys to lock the instrument
  • 2 high voltage guns (2 m cable)
  • 1 discharge cable
  • 2 continuity leads 2.5 m, with double contact crocodile clips
  • 2 safety leads 3 m (red/ black)
  • 2 crocodile clips (red/ black)
  • 1 test prod (red)
  • 1 carrying bag for the accessories and the user manual
Specification

Dielectric

  • Triggering current (1000V): 1, 3, 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 150, 200, 250, 300,
  • 350, 400, 450, 500 mA
  • Triggering current (1250V):1, 3, 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 150, 200, 250, 300, 350, 400 mA
  • Triggering current (1500V): 1, 3, 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 150, 200, 250, 300, 333 mA
  • Test voltage range: 0 to 2kV
  • Test voltage resolution: 10V
  • Test voltage accuracy: ±(2% L + 20V)
  • Test current (sinusoidal) range: 0 to 1999.9mA / 200 to 500mA
  • Test current (sinusoidal) resolution: 0.1mA / 1mA

Insulation Testing

  • Resistance range: 0…1.999 MΩ / 2.00…19.99 MΩ / 20.0…199.9 MΩ / 200...500 MΩ
  • Resistance resolution: 1 kΩ / 10 kΩ / 100 kΩ / 1 MΩ
  • Resistance accuracy ±(2% L + 2 pt) / ±10% L
  • Test voltage range: 0...1200 V
  • Test voltage resolution: 1 V
  • Test voltage accuracy: ±(2% L + 2 pt)

Continuity Testing

  • Voltage drop (∆U) range: 0 to 10V
  • Voltage drop (∆U) resolution: 0.01V
  • Voltage drop (∆U) accuracy: ±(2% L + 0.02V)
  • Resistance (R10A) range: 0 to 999mΩ / 1 to 1.99Ω
  • Resistance (R10A) resolution: 1mΩ / 10mΩ
  • Resistance (R10A) accuracy: ±(2% L + 2 mΩ) ± 5% L
  • Test voltage range: 0 to 12V
  • Test voltage resolution: 0.01V
  • Test voltage accuracy: ±(2% L + 0.02 V)
  • Test current range: 0 to 9.99A / 10 to 25A
  • Test current resolution: 0.01A / 0.1A
  • Test current accuracy: ±(5% L + 2 pt) / ±3% L

Discharge Time

  • Range: 0...10 s
  • Resolution: 0.1 s
  • Accuracy: ±(2% L + 0.2 s)

General

  • Mains voltage : 230 V / 50 Hz
  • Max power absorbed : 600 VA
  • LCD screen : dot matrix 128 x 64 with permanent backlighting and adjustable contrast
  • Interface : RS232
  • Memories : 999 values
  • Remote control signals : On / Off and Record
  • Working temperature : 0...50°C
  • Working humidity : 85% RH max (0...+40°C)
  • Dimensions (W x D x H) : 400 x 260 x 250 mm
  • Weight : 11 kg
  • Protection index : IP 40 (open) IP 54 (closed)
  • Protection of measurement circuits : by HBC fuses
  • Electrical safety : IEC 1010-1 Cat III 600 V
  • Applicable standards : EN 60204-1 “ Test of electric machines ”; VDE 104 “ Installation and operation of electric test equipment ”; EN 61180-1 and -2 “ High voltage test techniques for low voltage equipment ”
