Chauvin Arnoux CA6424 Earth Tester

Chauvin Arnoux
SKU: CHAUCA6424
  • 2P resistance / 3P earth measurements up to 50 kΩ in high-resistive terrain
  • Voltage measurement up to 600V and RH stake resistance measurement
  • Leakage current measurements from 0.5mA to 60A
More Info
Typically ships in 5-7 working days

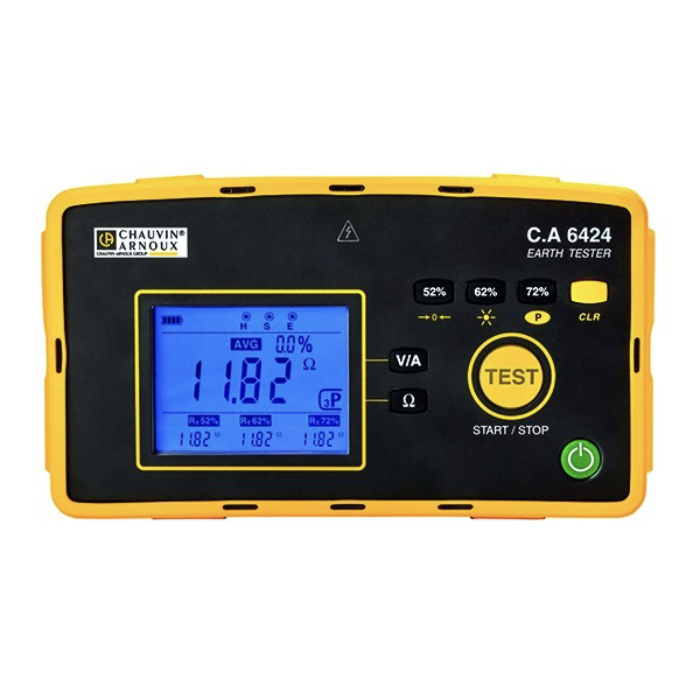

Chauvin Arnoux CA6424 Earth Tester

The Chauvin Arnoux CA6424 Earth Tester is the ideal instrument for 2P and 3P earth measurements to be taken safely and easily. Both text markings and colour coding help the users to avoid connection errors. Users are able to measure voltage up to 600V with all measurements and functionality are directly accessible on the front panel which can be used even with gloves on.

With automatic start up in 2P earth measurement mode, the CA6424 instantly allows the user to test the integrity of the H stake. When using the 3P earth mode, the CA6424 memorises the 52%, 62% and 72% measurement values and calculates the differences in % relation to the average. If the difference is too large , the percentage value is displayed on screen with a flashing display.

Users are able to use the CA6424 to measure line (phase) current and leakage current from 0.5mA to 60A thanks to the special connection technology for the G72 clamp (optional). The CA6424 has a dedicated key for cable compensation, whilst the LED screen indicates when a hazardous voltage is detected, with a NOISE symbol flashing should noise voltage be present. If a noise filled environment is detected, the CA6424 automatic switching from a frequency of 128Hz to 256Hz will help improve the measurement accuarcy.

The CA6424 boasts a 3 display backlit screen with users able to view useful measurements on a single screen, any errors detected in measurements or recorded values as well as complementary information such as USE and HR.

The CA6424 complies with IEC 61557-1 and IEC 61557-4 and is 600V CAT IV rated. The unit is IP65 rated offing protection from dust and low pressure water jets from any direction and has been drop tested to 1 metre as per IEC 61010-1 .Powered by 6 rechargeable batteries, the CA6424 has a battery life for up to 1500 measurements 3P earth measurements at 10Ω with an automatic power off function that can be deactivated further preserving battery life.

CA6422 and CA6424 Comparison chart

  CA6422 CA6424
Voltage measurement   ✔
2P Resistance measurement ✔ ✔
3P Earth resistance measurement ✔ ✔
Mean of the earth measurement at 52%, 62% and 72%   ✔
RH stake resistance measurement   ✔
USE voltage measurement   ✔
Detection of spurious voltage of USE ✔ ✔
Measurement of AC current with optional G72 clamp   ✔
Measurement Mode R 2P (Ω), R 3P (Ω) V, I, R 2P (Ω), R 3P (Ω)
Auto power off function   ✔
Power supply 6 x LR 6 or AA batteries 6 x NiMH rechargeable batteries, charging time approx.. 6 hrs
Battery life > 2,000 x 3P earth measurements at 100 Ω > 1,500 x 3P earth measurements at 100 Ω

Key Features

  • Voltage detection from 0 to 600V
  • 2P resistance: 0.05 Ω to 50 kΩ
  • 3P earth: 0.5 Ω to 50 kΩ
  • Measurement modes: one-shot or permanent
  • RH stake resistance measurement
  • USE voltage measurement
  • Current measurement with the G72 clamp: 0.5 mA to 60 A
  • Automatic power-off function that can be deactivated
  • Complies with IEC 61557-1 and IEC 61557-4
  • IP65 rated
  • 600V CAT IV rated
  • NiMH batteries that are rechargeable via the mains, USB socket or vehicle cigarette lighter
  • 1 metre drop tested as per IEC 61010-1

What's In The Box?

  • Chauvin Arnoux CA6424 Earth Tester
  • 1 carrying bag
  • 6 NiMH batteries
  • 1 USB 2A power supply
  • 1 USB micro-razor power cable
  • 1 multilingual quick start guide,
  • 1 safety datasheet
  • 1 battery datasheet
  • test report with measurement results
  • WEB link/QR Code for downloading the manuals
Specification

Voltage

  • Range: 0.1- 600V
  • Resolution: 0.1V
  • Accuracy: ± (1%R + 1 ct)

2P resistance

  • Range: 0.05-99.99Ω / 80.0-999.9Ω / 0.800-9.999kΩ / 8.00-50.00kΩ
  • Resolution: 0.01Ω / 1Ω / 10Ω / 100Ω
  • Accuracy: ±(2%R + 10 cts) / ± (2%R + 2 cts) / ±(2%R + 1 ct) / ± (2%R + 1 ct)
  • Cable compensation: up to 5Ω

3P resistance

  • Range: 0.5Ω - 50.00kΩ
  • Resolution: 0.01Ω / 0.1Ω / 1Ω / 10Ω
  • Accuracy: ±(1%R + 10 cts) / ±(1%R +2 cts) / ±(1%R + 1 ct)
  • Measurement frequency: 128 Hz or 256 Hz
  • No-load voltage: ±10 V peak
  • Measurement mode: One-shot or permanent
  • Data Storage: Registers: RE @ 62%; RE @ 52%; RE @ 72%
  • Calculation of average: Calculation of the average and the % deviation in relation to the average

RH stake resistance measurement

  • Range: 0.05-9.999 kΩ / 8 - 49.99 kΩ
  • Resolution: 1Ω / 10Ω
  • Accuracy: ±(10%R + 1 ct)

USE voltage measurement

  • Range: 0.10 - 99.99 VAC / 80.0 - 600 VAC
  • Resolution: 0.01V/0.1V
  • Accuarcy: ±(2%R + 2 cts)

Current measurement (via optional G72 clamp

  • Range: 0.5 - 999.9 mA / 0.800-9.999 A / 8.00-60.00 A
  • Resolution: 0.1 / 1 / 10 mA
  • Accuracy: ±(1%R + 4 cts) / ±(1%R + 2 cts)

General Specifications

  • Display: Backlit custom 206 segment LCD
  • Measurement Mode: V, I, R 2P (Ω), R 3P (Ω)
  • Power supply: 6 x NiMH rechargeable batteries, charging time approx.. 6 hrs
  • Charger: Internal via mains/USB adapter supplied
  • Automatic power off: Deactivatable
  • Battery life: >1,500 x 3P earth measurements at 100 Ω
  • Dimensions/Weight: 223 x 126 x 70 mm / 1 kg
  • Environment: Operation: -10 to +50°C / Storage: -40 to +70°C (without batteries/accumulators)
  • Protection: Up to 600 V on any of the input terminals
  • IP/IK index: IP 65 as per IEC 60529 / IK 04 as per IEC 50102
  • Drop test: 1 metre as per IEC 61010-1
  • Standards/Electrical safety: EMC: IEC 61326-1; IEC 61010-2-030 / 600 V CAT IV
  • Compliance with IEC 61557: IEC 61557-1 and IEC 61557-5
Label Type Size Download
pdf Chauvin Arnoux CA6424 Earth Tester datasheet pdf 1 MB Download
