Chauvin Arnoux CA762 Voltage Absence Tester

Chauvin Arnoux
SKU: CHAUCA762
  • Extended continuity testing with nominal resistance indications
  • LED bar graph display, flashing indications and audible buzzer
  • IP65 weatherproof rating for indoor and outdoor use
More Info
Typically ships in 5-7 working days

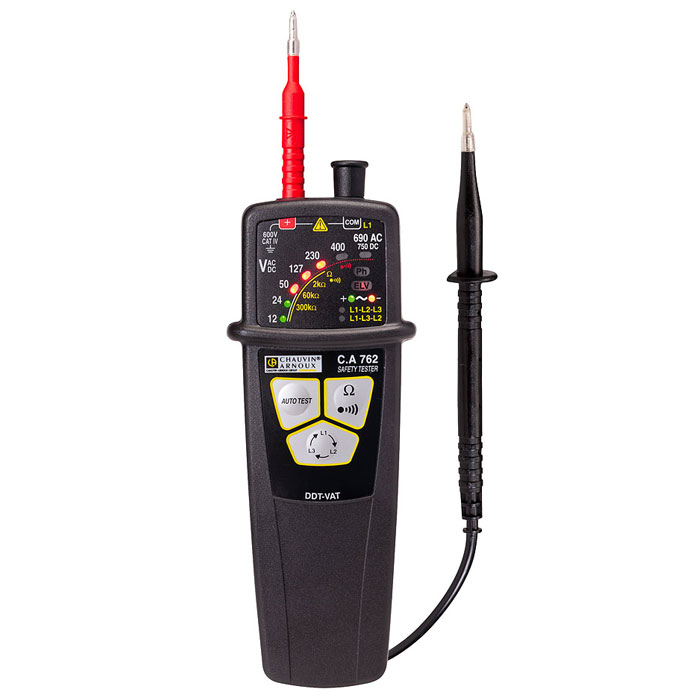

Chauvin Arnoux CA762 Voltage Absence Tester

An essential instrument for the safe isolation process, the Chauvin Arnoux CA762 Voltage Absence Tester can perform standard voltage detection, single-pole phase testing, phase sequence testing, continuity testing, and phase rotation indication. Feedback is given to the user in the form of a visual LED bar graph with nominal voltage indications (up to 690V AC / 750V DC), a loud audible buzzer, and flashing LED lights for phase rotation/sequence and extra-low voltage (ELV). Furthermore, continuity testing with the CA762 benefits from an extended range and three visual indications (<2kΩ, 60kΩ, and 300kΩ).

The test probes and leads on the Chauvin Arnoux CA762 are easy to exchange whilst a comfortable ergonomic design and 5mm guard allows quick, easy testing. The auto-test function ensures accuracy and safety and the IP65 rating means that the tester can be used both inside and outside. The device is Cat IV rated to 600V and is supplied with a range of accessories. Click on the checkbox above to add IP2X sprung test probes to your purchase.

Chauvin Arnoux part number: P01191762Z

Key Features

  • Nominal test voltage indication to 690V AC / 750V DC
  • Sindle-pole phase testing
  • Phase sequence testing
  • Extended continuity testing
  • Phase rotation indication
  • Extra-low voltage warning
  • Exchangeable test probes and leads
  • Auto-test function
  • IP65 rating
  • Cat IV 600V

What's In The Box?

  • Chauvin Arnoux CA762 Voltage Absence Tester
  • Soft carry case
  • 1 x lead 0.85 m long
  • 1 x black Ø 2 mm test probe fitted with a crystal safety cap
  • 1 x 1 wrist strap
  • 2 x 1.5 V LR03/AAA batteries
  • 1 x user manual in 5 languages
Specification

Voltage detection

  • Voltage: 12 V ≤ U ≤ 690 VAC – 12 V ≤ U ≤ 750 VDC
  • Frequency: DC, 16 2/3 Hz to 800 Hz
  • Input impedance: > 400 kΩ
  • Max. peak current: 3.5 mARMS
  • Polarity indication: Yes
  • Hazardous voltage indication: The red ELV (Extra Low Voltage) LED indicates that the voltage is higher than the SELV (Safety Extra Low Voltage) and the faster it flashes, the higher the voltage present.
  • Phase / Neutral identification: Above a typical value of 120 V* (45 - 65 Hz) – Above 400 V (162/3 Hz - 45 Hz)

Continuity with buzzer

  • Trigger threshold: 100 Ω typical (150 Ω max.)
  • Extended continuity test: 2 kΩ, 60 kΩ, 300 kΩ
  • Test current: ≤ 1 mA
  • Open-circuit voltage: ≤ 3.3 V
  • Protection: up to 1,000 V
  • Phase rotation: No 2-wire method
  • Ph/Ph voltage: 50 V ≤ U ≤ 690 VAC
  • Frequency: 45 Hz to 400 Hz
  • Buzzer: Intermittent beep for voltage detection and continuous beep for continuity
  • Standards and electrical safety: IEC 61010 600 V CAT IV, IEC 61243-3 concerning Voltage Detectors/ Voltage Absence Testers (VATs) (DDT/VAT); IEC 61326-1, emission and immunity in industrial environments
  • Enclosure protection: Casing IP65 – Test probes (depending on reference and option): IP2X
  • Climatic conditions: Use from -15 °C to +45 °C / 20 %RH to 95 %RH
  • Power supply: 2 x 1.5 V (AAA and LR3)
  • Battery life: 7,000 x 10 s measurements
  • Dimensions / weight: 163 x 64 x 40 mm / 210 g
