Chauvin Arnoux CA832 Sound Level Meter

Chauvin Arnoux
SKU: CHAUCA832
  • Measures from 37dB to 130dB with accuracy of ±1.5dB and resolution of 0.1dB
  • A and C weighting curves allow users to focus on different frequency weightings
  • Maximum value recording allows the user to look at loudest noise over a period
More Info
Typically ships in 5-7 working days

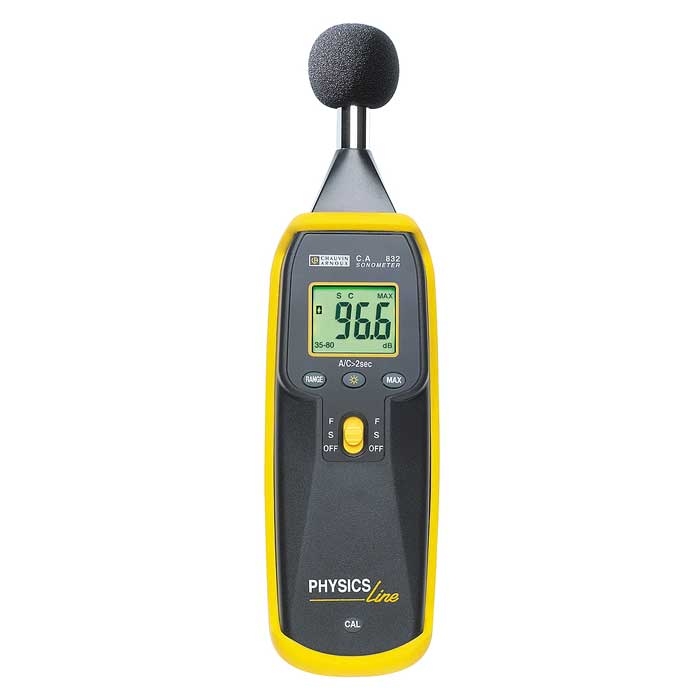

Chauvin Arnoux CA832 Sound Level Meter

The Chauvin Arnoux CA832 Sound Level Meter is capable of measuring noise levels from 37dB to 130dB across three dynamic ranges (37-80dB; 50-100dB; 80-130dB). Readings are accurate to ±1.5dB and have a precision of 0.1dB whilst two weighting curves (A, C) allow the user to account for sound frequency, for example to measure the frequencies most prominent in the human hearing range. The user can also set a slow or fast response time.

Readings are shown on the Chauvin Arnoux CA832’s digital screen alongside the dynamic range and various other factors. The screen has a back light for use in poorly lit environments and there is also a maximum value storage function that saves the reading. Operation is undertaken via a series of push buttons and it is covered by a shockproof case for use in challenging conditions.

A tripod insert allows the Chauvin Arnoux CA832 to be installed to monitor readings over a long period of time and it is compatible with IEC 651 Type 2 standard. It is supplied with a foam microphone cap, screwdriver, male Jack connector, assembly screw for photo stands, 9V battery and operator’s manual.

Chauvin Arnoux part number: P01.1855.01Z

Key Features

  • Overall range: 37dB to 130dB
  • Dynamic ranges: 37-80dB; 50-100dB; 80-130dB
  • Accuracy: ±1.5dB
  • Resolution: 0.1dB
  • A and C weighting curves
  • Fast and slow response times
  • Backlit digital screen
  • Maximum value recording
  • IEC 651 Type 2 Standard

What's In The Box?

  • Chauvin Arnoux CA832 Sound Level Meter
  • Shockproof case
  • Foam microphone cap
  • Screwdriver
  • Male jack connector
  • Assembly screw for photo stands
  • 9V battery
  • Operator’s manual for Chauvin Arnoux CA832
Specification

Chauvin Arnoux CA832 Sound Level Meter

  • Measurement range: 3 measurement ranges; 37 dB to 130 dB
  • Accuracy: ±1.5 dB
  • Resolution: 0.1 dB
  • Integration time: Slow (550 ms); Fast (55 ms)
  • Weighting curves: dB(A) and dB(C)
  • Analogue output: 10 mV/dB and 1 Vrms on 600 Ω

Operating conditions

  • Temperature: 0 to 50 °C
  • Humidity: < 80 % RH

Storing conditions

  • Temperature: -20 °C to +60 °C
  • Humidity: < 80 % RH
  • Dimensions: 205 x 60.5 x 38 mm
  • Mass: 230 g
