Chauvin Arnoux CA850 Digital Manometer

SKU: CHAUCA850
The C.A 850 Digital Manometer measures pressure from -100psi to +100psi with high accuracy & has 13 different selectable pressure readings
More Info
Typically ships in 5-7 working days

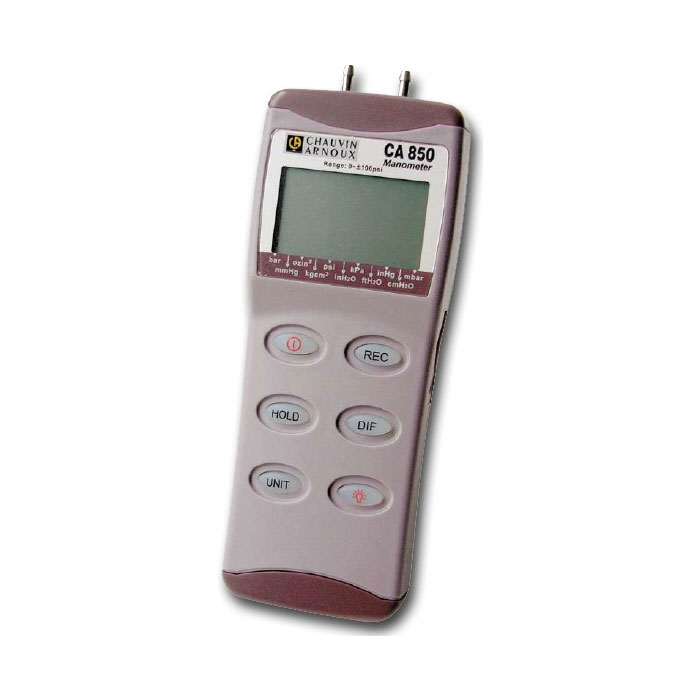

Chauvin Arnoux C.A 850 Digital Manometer

The Chauvin Arnoux CA 850 Digital Manometer is ideal for measuring relative and differential pressure levels in air-conditioning installations, medical equipment and pneumatic control systems. With over 13 different pressure measurements you'll always be able to supply the correct results: bar, mmHg, OZin², kg/cm², inH20, kPa, ftH2O, inHg, cmH2O, mbar The CA850 manometer measurements are easy to read with its large display, The C.A 850 comes supplied in a hard carry case with 2 connecting hoses. The perfect manometer to test all your pressurized equipment.

Chauvin Arnoux CA850 Manometer Key Features:

    Time-stamped MIN and MAX monitoring Differential pressure measurement Measurement hold Auto-stop Backlighting

Should you require any further information please do not hesitate calling or see the datasheet: pdf

Specification
  • Measurement range: -100 to +100psi
  • Measurement range: -6.89 bar to +6.89 bar
  • Maximum pressure: ±150psi
  • Maximum pressure: ±10.33 bar
  • Resolution: 0.1 psi
  • Resolution: 0.004 bar
  • Accuracy: ±0.3% full scale
  • 13 x pressure units: bar, mmHg, OZin², kg/cm², inH20, kPa, ftH2O, inHg, cmH2O, mbar
  • Dimensions: 72x182x30mm
  • Weight: 220g
