Chauvin DigiFlex MA4000D - 4000A AC 350mm Sensor

Chauvin Arnoux

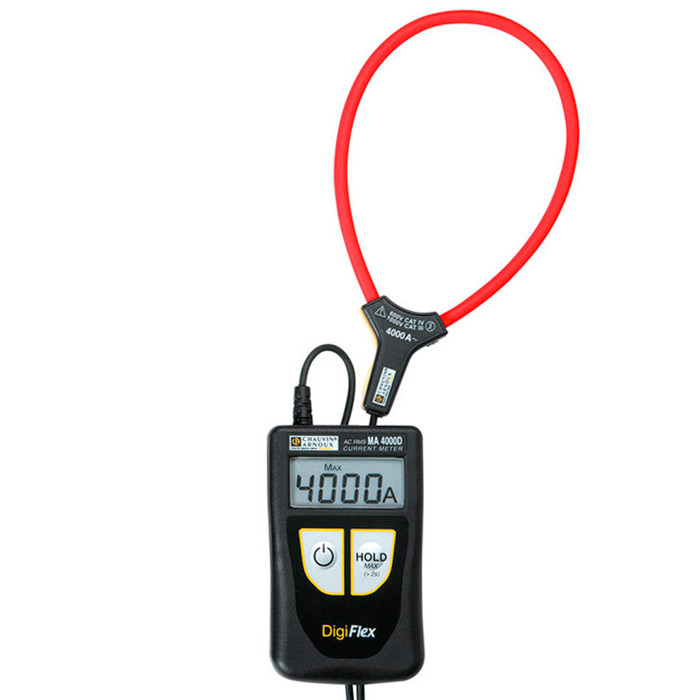

main product photo
SKU
CHAUMA4000D
Ammeter with a flexible sensor for measuring current on electrical conductors up to a diameter of 100mm.
More Info
inc VAT £186.00 ex VAT £155.00
In Stock - Available Next Day


Product Details

Chauvin Arnoux DigiFlex MA4000D with 350mm Sensor

The Chauvin Arnoux DigiFlex MA4000D is a flexible current sensor with a measurement range up to 4000A, making it perfectly suited for use on power installations in the industrial and energy production sectors.

The flexible sensor measure 350mm in length and can be fitted around electrical conductors with a diameter up to 100mm. Although a high performance ammeter, the Chauvin Arnoux MA4000D offers very simple operation. Simply click the Rogowski coil into place once around the desired conductor and press the two buttons on the front to begin taking readings.

Chauvin Arnoux MA4000D Features

  • 350mm flexible coil that fits all conductors with a diameter up to 100mm
  • Direct current readings
  • Measurement range from 10mA to 4000A
  • Ideal when access to conductors is limited
  • 4000 count digital display with Hold and Max Hold functions
What's In The Box?
  • Chauvin Arnoux MA4000D DigiFlex
  • 2 x AAA Batteries
  • 1 x Elastic Strap
  • Operating Manual
More Information
Specification
Display Range: 40A AC 400A AC 4000A AC
Measurement Range: 10mA - 39.99A 40A - 399.9A 400A - 3999A
Resolution: 10mA 100mA 1A
Accuracy: ±(2% + 10 counts) ±(1.5% + 2 counts) ±(1.5% + 2 counts)
► Sensor Clamping Length: 350mm
► Sensor Clamping Diameter: 100mm
► Bandwidth: 10Hz - 3kHz
► Power Supply: 2 x 1.5V AAA Batteries
► Safety: IEC 61010 CAT IV 600V
► Dimensions: 100 x 60 x 20mm
► Weight: 130g
