Chauvin DigiFlex MA400D 400A AC - 170mm Sensor

Chauvin Arnoux
SKU: CHAUMA400D170MM
Ammeter with a flexible sensor for measuring up to 400A true rms AC current on electrical conductors up to a diameter of 45mm.
More Info
Typically ships in 5-7 working days

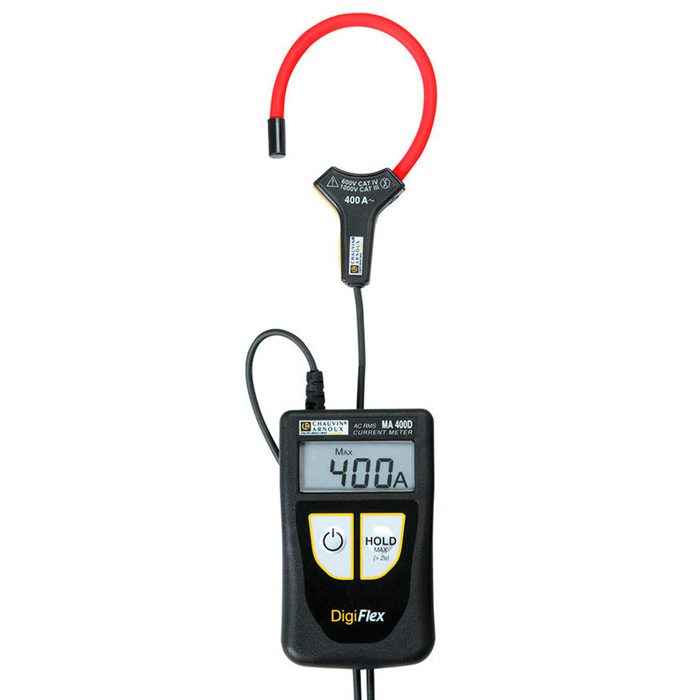

Chauvin Arnoux DigiFlex MA400D with 170mm Sensor

The Chauvin Arnoux DigiFlex MA400D is a flexible current probe for performing TRMS AC current measurements. The Rogowski coil has a sensor length of 170mm allowing electrical conductors with a diameter of up to 45mm to be measured. The sensor can be quickly clicked open and closed and is particularly useful in situations where access to conductors is restricted.

The Chauvin Arnoux MA400D has a measurement range from 20mA to 400A, making it suitable for taking direct current readings in domestic environments as well as at electrical distribution boards. Readings are clearly visible on the 4000 count digital display with hold and max hold functions for specific result storage.

Chauvin Arnoux MA400D Features:

  • 170mm flexible coil that fits all conductors with a diameter up to 45mm
  • Direct current readings
  • Measurement range from 20mA to 400A
  • Ideal when access to conductors is limited

What's In The Box?

  • Chauvin Arnoux MA400D DigiFlex
  • 2 x AAA Batteries
  • 1 x Elastic Strap
  • Operating Manual
Specification
► Display Range: 4A AC 40A AC 400A AC
► Measurement Range: 20mA - 3.999A 4mA - 39.99 40A - 399.9A
► Resolution: 1mA 10mA 100mA
► Accuracy: ±(2% + 10 counts) ±(1.5% + 2 counts) ±(1.5% + 2 counts)
► Sensor Clamping Length: 170mm
► Sensor Clamping Diameter: 45mm
► Bandwidth: 10Hz - 3kHz
► Power Supply: 2 x 1.5V AAA Batteries
► Safety: IEC 61010 CAT IV 600V
► Dimensions: 100 x 60 x 20mm
► Weight: 130g
