Chauvin DigiFlex MA400D - 400A AC - 250mm Sensor

SKU
CHAUMA400D250MM
400A AC Ammeter with a flexible sensor for measuring current on electrical conductors up to a diameter of 70mm.
More Info
inc VAT £166.80 ex VAT £139.00
Typically ships in 5-7 working days


Product Details

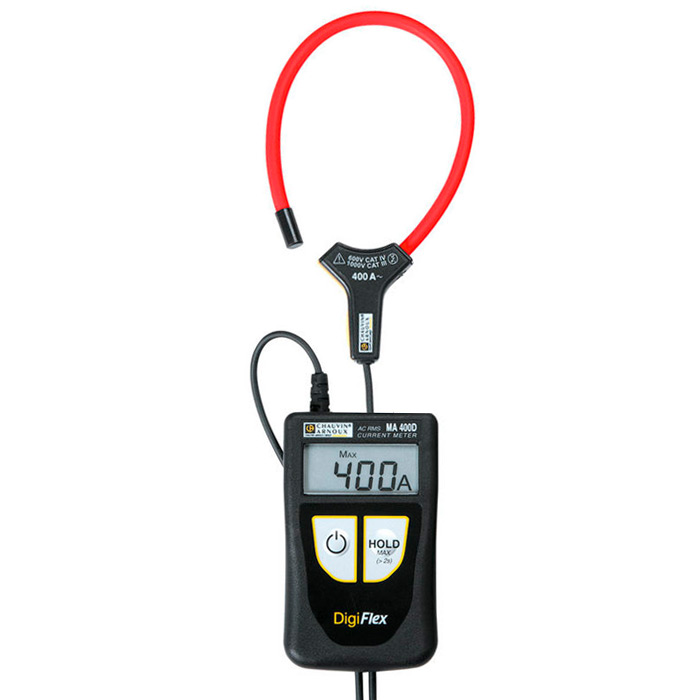

Chauvin Arnoux DigiFlex MA400D with 250mm Sensor

The Chauvin Arnoux MA400D with 250mm flexible sensor, enables TRMS AC current measurements to be taken on electrical conductors with a diameter of 70mm. The flexible current probe (Rogowski coil) can be simply clicked together allowing quick connection and release, particularly helpful when operating in tight locations or when conductors are obscured.

With a measurement range up to 400A, the Chauvin Arnoux DigiFlex MA400D can be used to take direct current readings at distribution boards and from conductors in residential locations. An ideal addition to any electrician’s tool kit, the MA400D is a versatile ammeter that delivers comfortable handling along with quick and reliable readings.

Chauvin Arnoux MA400D Features

  • 250mm flexible coil that fits all conductors with a diameter up to 70mm
  • Direct current readings
  • Measurement range from 20mA to 400A
  • Ideal when access to conductors is limited
  • 4000 count digital display with Hold and Max Hold functions
What's In The Box?
  • Chauvin Arnoux MA400D DigiFlex
  • 2 x AAA Batteries
  • 1 x Elastic Strap
  • Operating Manual
More Information
Specification
► Display Range: 4A AC 40A AC 400A AC
► Measurement Range: 20mA - 3.999A 4mA - 39.99 40A - 399.9A
► Resolution: 1mA 10mA 100mA
► Accuracy: ±(2% + 10 counts) ±(1.5% + 2 counts) ±(1.5% + 2 counts)
► Sensor Clamping Length: 250mm
► Sensor Clamping Diameter: 70mm
► Bandwidth: 10Hz - 3kHz
► Power Supply: 2 x 1.5V AAA Batteries
► Safety: IEC 61010 CAT IV 600V
► Dimensions: 100 x 60 x 20mm
► Weight: 130g
