Chauvin Arnoux L411 Current Datalogger
SKU: CHAUL411
Never Beaten On Price
We’re always working hard to give you the best possible price, but if you find it cheaper somewhere else, we’ll endeavour to match the price.
Call 0113 248 9966 or contact us online
Key Features
- Cost-effective soliton to use on a feeder, a line or an electrical circuit
- Features an integrated 3000A AC Miniflex sensor
- Offers a single measurement channel
Related Categories
£499.00
£598.80
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
Key Features
- Cost-effective soliton to use on a feeder, a line or an electrical circuit
- Features an integrated 3000A AC Miniflex sensor
- Offers a single measurement channel
Related Categories
Chauvin Arnoux L411 Current Datalogger

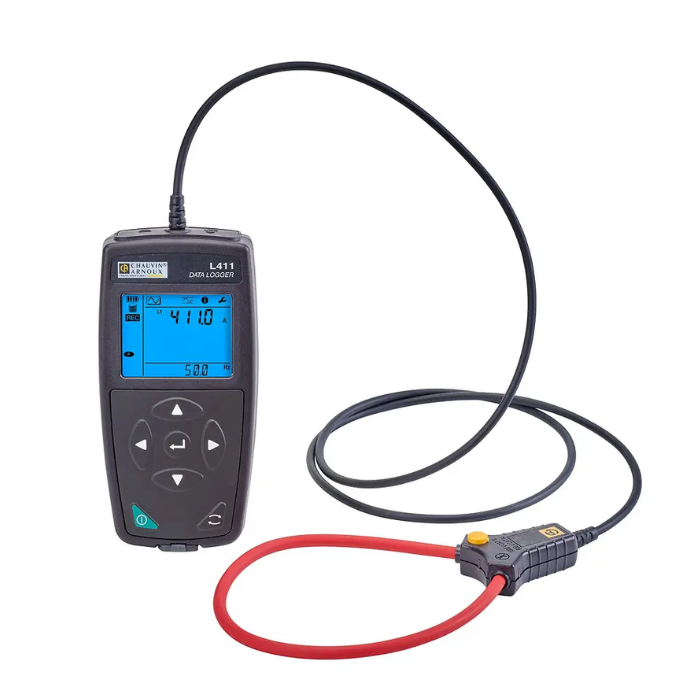

The Chauvin Arnoux L411 Current Datalogger is a compact, cost-effective solution designed to accurately record and monitor electric current on feeders, lines or single-phase circuits. It features an integrated 3000A AC Miniflex captive sensor with a diameter of 100mm and a 1.2 m cable, allowing it to fit into tight spaces. This makes it effective in detecting variations and anomalies in current flow which is perfect for troubleshooting, load analysis, and system performance assessment.
The L411 offers a single measurement channel with a wide current measurement range from 0.5 to 3000 A AC and also supports frequency measurements. A backlit LCD display makes it easy to view data in different lighting environments while the large 8 GB memory is able to store extensive measurement data. With a fast acquisition speed of one measurement per second and customisable aggregation interval of between one and sixty, users can record detailed and accurate data and also monitor it based on the application.
Included with the L411 is the Datalogger Transfer software which makes data processing and management easy. This powerful software allows users to retrieve and visualise recorded measurements in graphical or tabular formats and export data directly to Excel for further analysis. The software also supports real-time monitoring, configuration of measurement parameters such as current range and frequency, and password protection to secure device settings.
One of the standout features on the L411’s is connectivity as it functions as a remote sensor for current measurements. The L411 can be used in a number of applications, one being with the built-in Wi-Fi that operates in two modes; either connected to a company network and directly accessed by a PC or smartphone or through the IRD DataView Synch server, where users can securely consult and download data from anywhere in the world. The other application is USB connection, which allows data download, device configuration, and full control even without wireless access. The embedded web server is another application which enables operation via any standard browser on Android or iOS devices, offering real-time display, trend recording, and multilingual configuration.
The L411 carries an IP54 protection rating and can withstand operation in temperatures that range from -20°C to +50°C. It meets 600 V CAT IV and 1000 V CAT III electrical safety standards, offering peace of mind when working on high-voltage systems. The L411 is powered by either three AA batteries or USB, giving users up to three days of recording without Wi-Fi. It remains lightweight at approximately 340 g, with an optional shock-proof sheath available for added protection.
Comparing L411, L412 and L461 Dataloggers
| L411 | L412 | L461 | |
|---|---|---|---|
| Number of channels | 1 | 2 | 1 |
| Range | From 0.5 to 3000 A ac | Depending on sensor(s) | From 10 V to 1200 Vac / 1700 Vdc |
| Frequency | Yes | ||
| Display | LCD backlit | ||
| Memory size | 8 GB | ||
| Acquisition speed | 1 measurement / s | ||
| Aggregation | 1 to 60 min | ||
| Communication | USB, WiFi, Web server, IRD server DataView Synch | ||
| Power supply | 3 piles AA, or USB | ||
| Battery life | 3 days recording without Wi-Fi | ||
| Shock-proof sheath | Option | ||
| Dimensions | 147 × 34 × 72 mm | 177 × 34 × 72 mm | 178 × 34 × 72 mm |
| Weight | 340 g approx. | 300 g approx. | 300 g approx. |
| Sensor | Ø100 mm / 350 mm cable length 1.2 m | - | - |
| Operating temperature | -20°C to 50°C | ||
| Protection | IP 54 | ||
| Electrical safety | 600 V CAT IV / 1000 V CAT III | 600 V CAT IV / 1000 V CAT III | 600 V CAT IV / 1000 V CAT III / 1500 Vdc CAT III |
Specialists In Power Quality Analysers
Watch the video above to see how we can help you find the right power quality analyser & get in touch on 0113 248 9966 or sales@test-meter.co.uk.
As a leading provider of Power Quality Analysers and Energy Loggers in the UK, we've seen a measurable rise in the demand for monitoring power usage due to the ever-increasing push to reduce carbon footprints and energy bills.
Find the best solution for your application and budget through:
- Onsite-demo/remote consultations on request
- 'Try Before You Buy' and hire options available
- After-sales care that provides ongoing calibration and servicing
- Finding the optimal software package, ensuring the correct reporting and data functionality for your needs
If you need help finding the right power quality analyser or energy logger, please get in touch on 0113 248 9966 or sales@test-meter.co.uk
part number: P01157180
Key Features
- Integrated 3000A AC Miniflex Sensor
- Supports a current measurement range from 0.5 to 3000A AC
- One measurement channel
- Captures one measurement per second
- Records and displays measurements in real time
- Large 8 GB Internal Memory
- Set aggregation intervals between 1 and 60 minutes
- Includes Datalogger Transfer software
- Equipped with USB, Wi-Fi, and web server interfaces
- Operates in two Wi-Fi modes
- Remote Data Access via the IRD DataView Synch server
- Device control and live data viewing through a standard web browser on Android and iOS devices
- Operates using three AA batteries or USB power
- Up to three days of recording without Wi-Fi
- CAT IV 600 V / CAT III 1000 V safety rated
- IP54 protection rating and an additional protective sheath
What's In The Box?
- USB–micro USB cable
- USB mains adapter
- Datalogger Transfer software
- 3 × AA (LR06) batteries
- Multi-language quick start guide
- Multi-language operating manual
- Test report
