Cirrus Research CR201 SoundSign Noise Warning Sign

Cirrus Research
SKU: CIRRCR201
  • Visual alerts warn employees that a preset noise level has been reached and/or exceeded
  • Preset trigger levels from 40dB(A) to 114dB(A)
  • Easy to install, noise activated warning signs available in four designs
More Info
Typically ships in 5-7 working days

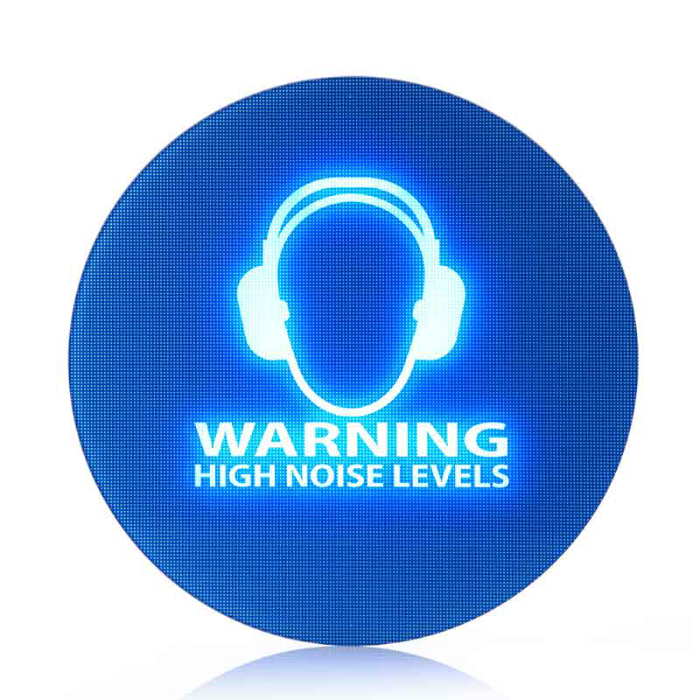

Cirrus Research CR201 SoundSign Noise Warning Sign

The Cirrus Research CR201 SoundSign Noise Warning Sign is a noise activate warning sign alerting the workplace if noise levels in indoor spaces exceed preset levels. The SoundSign is the perfect tool to keep the workforce safe from any danger of excessive noise exposure. Trigger levels from 40dB (A) to 114dB(A) with high intensity white LED technology to show visually both text and graphical warnings.

The SoundSign is available in four different designs to ensure the correct PPE is worn upon entry to certain areas. Please select the required sign from the drop down menu above:

  • Hearing Protection Must Be Worn
  • Warning: High Noise Levels
  • Caution: High Sound Levels
  • Shhh! Quiet Zone

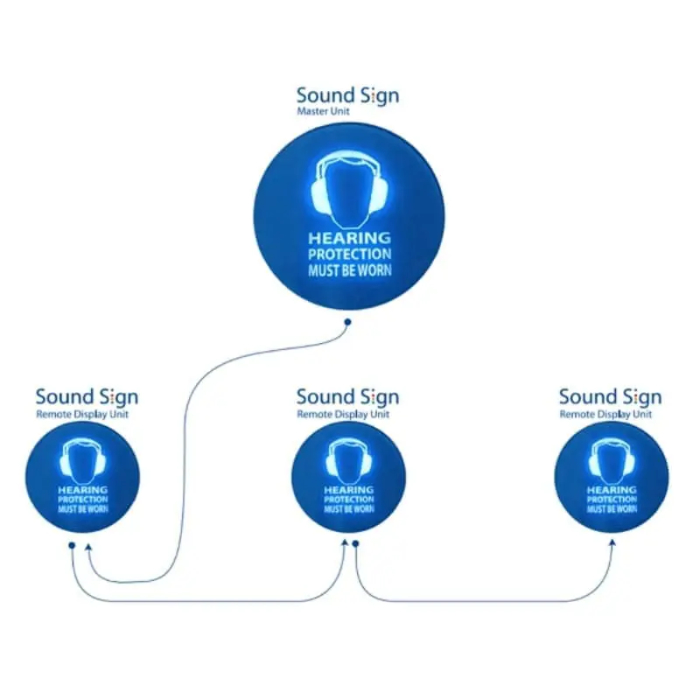

With visual alerts in loud places, the CR201 alerts employees if PPE such as hearing protection should be used and alert them to high noise levels. The CR201 is suitable for use is quiet zones including schools, liberties and hospitals. The CR201 can be with multiple units that allow for larger areas to be covered using Cirrus Research Remote units and Master system where up to three remote SoundSigns are connected to a single master unit showing the alert message at the user defined noise levels.

The CR201 can also be connected to the Cirrus Research xenon beacon that provides further visual alerts when noise levels exceed the preset level. If data logging is required the the CR201 SoundSign can be upgraded quickly and easily by adding the USB data logger. By plugging the USB data logger into the SoundSign, noise levels can be recorded for as long as they are connected. The data logger can be programmed to start recording at specific times or time lengths that allow for full shifts to be recorded. Data measured can be download to a PC and viewed and analysed.

Key Features

  • Lights up if preset noise level is exceeded
  • Quick and easy to install
  • User defined alarm level from 40dB(A) to 114dB(A) for use in any environment
  • High intensity white LED technology
  • Text and graphical warnings
  • Link to other SoundSign units
  • Link to xenon alert beacon to cover larger work areas
  • Connect to data logger to track a record of ambient noise levels
  • Connect up to three Remote Display Units from a master unit
Specification
  • Trigger level: 40dB (A) to 114 dB(A) in 1dB steps
  • Microphone: MK:112
  • Frequency weighting to IEC 61672-1:2002
  • Time weighting: Slow to IEC 61672-1:2002
  • Visual indication:
    High intensity white LED with four standard deigns.
    User selectable brightness
  • Display delay time: None or 30 seconds
  • External power: 2.1mm power jack, 12V DC via mains power supply
  • Output Connector:
    Control for remote: Display units via standard 2.1m power
    Up to three remote display units can be powered from a master unit
  • Dimensions: 304.8mm (12”) diameter x 50.8mm (2”) depth
  • Weight: 0.6KG (1.3lbs)
  • Mounting :2 x keyhole mounting sticks

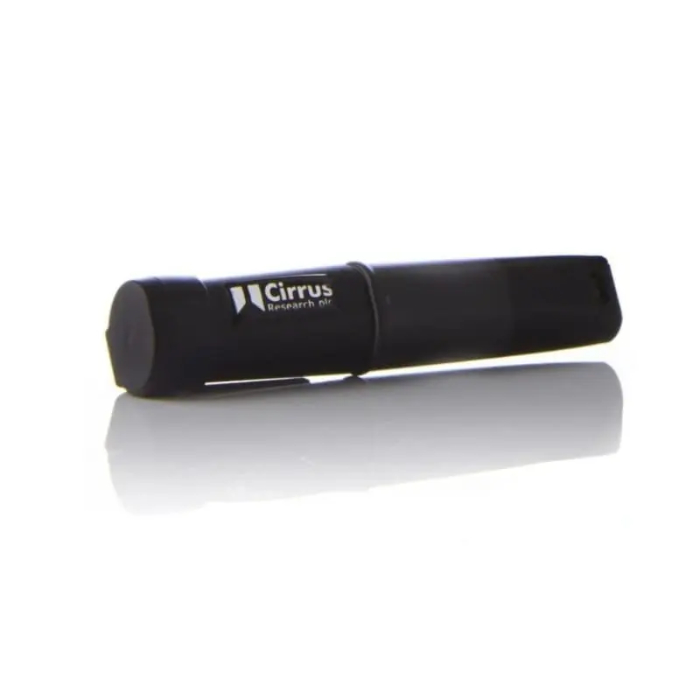

  • Data logging:
    CR203 USB Data logger with 32,000 samples of LAS (Slow ‘A’ weighted sound level
    User selectable 1 second (9 hours), 10 seconds (3.7 days), 1 minute (22 days) sampling
Label Type Size Download
pdf Cirrus Research CR201 SoundSign Noise Warning Sign Datasheet pdf 881.9 KB Download
