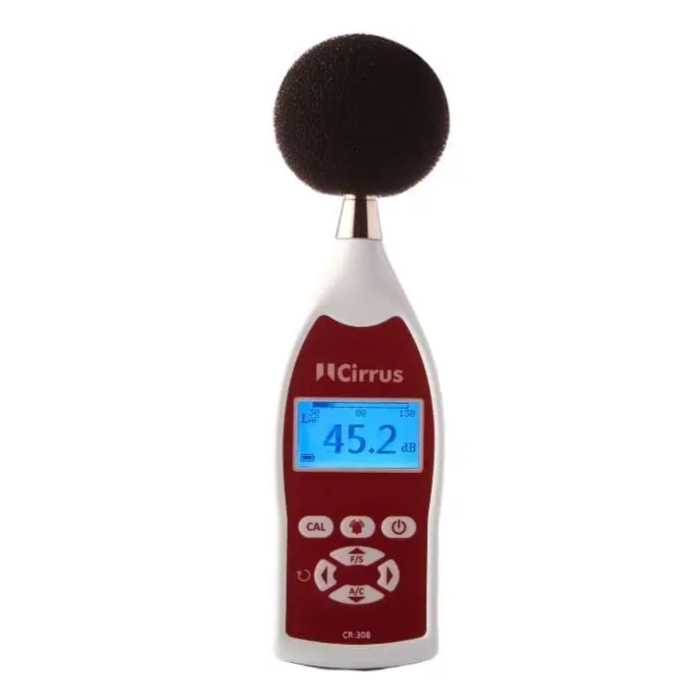

Cirrus Research CR308 Sound Level Meter

Cirrus Research
SKU: CIRRCR308
  • Sound level meter compliant with IEC 61672-1:2013 Class 2
  • Measure Sound pressure level (SPL) and maximum sound level (LMax)
  • Adjustable noise level threshold alarm
More Info
Typically ships in 3-5 working days

Cirrus Research CR308 Sound Level Meter

The Cirrus Research CR308 Sound Level Meter is a simple to use class 2 decibel meter that allows for simple noise measurements to be undertaken that meet IEC 61672-1:2013 Class 2). Users are able to measure sound pressure levels (SPL) and the maximum sound level (LMax) allowing for noise level testing, alarm testing and spot checks to be conducted as well as other noise level testing applications.

The CR308 includes a user adjustable noise level threshold alarm should noise levels exceed the set level with users a visual alerting the user of the display.

Cirrus Sound level meter Comparison

  CR308 CR308 Kit CR310 CR310 Kit
Basic Noise Level Testing ✔ ✔
Basic at work place noise assessments     ✔ ✔
Power supply: 2 x AA Alkaline batteries ✔ ✔ ✔ ✔
Average operating time 24 hours 24 hours 24 hours 24 hours
Applicable standards IEC 61672-1: 2013 Class 2 IEC 61672-1: 2013 Class 2 IEC 61672-1: 2013 Class 2 IEC 61672-1: 2013 Class 2
Total measurement range Peak range: 40dB(C)-130dB(C), RMS Range:30dB(A) Peak range: 40dB(C)-130dB(C), RMS Range:30dB(A) Peak range: 40dB(C)-130dB(C), RMS Range:30dB(A) Peak range: 40dB(C)-130dB(C), RMS Range:30dB(A)
Frequency Weightings A,C A,C A,C A,C
Time Weightings Fast, Slow Fast, Slow Fast, Slow Fast, Slow
SPL ✔ ✔ ✔ ✔
LEQ     ✔ ✔
LCPEAK     ✔ ✔
Acoustic calibrator   ✔   ✔
Kit case   ✔   ✔

The CR308 has a measurement range of 30dB to 130dB for A frequency weightings and 40dB to 130dB for C frequency ratings thanks to the ½˝ pre-polarised electret condenser type HY:205 microphone. The backlit LCD display offers normal, maximum, minimum and C peak display functions. The noise floor provides < 25dB (A) and 35dB (C) Display Flags Threshold Limit, Overload, Under-range measurements with an auto calibration range of ±4.5dB. The CR308 boasts a 24 hour battery life powered by two AA/LR6 1.5V batteries or can be powered by a 5V DC mini USB

Key Features

  • Simple noise level measurement
  • IEC 61672-1:2013 Class 2
  • Adjustable noise level threshold alarm
  • Measure sound pressure levels (SPL)
  • Measure maximum sound level (LMax)
  • Noise level testing, alarm testing and spot check
  • 24 hour battery life
  • Measurement range of 30dB to 130dB for A frequency weightings
  • Measurement range of 40dB to 130dB for C frequency weightings
  • ½˝ pre-polarised electret condenser type HY:205 microphone
  • Backlit LCD display
  • Display offers normal, maximum, minimum and C peak display functions
  • Noise floor provides < 25dB (A) and 35dB (C) Display Flags Threshold Limit, Overload, Under-range measurements
  • Auto calibration range of ±4.5dB

What's In The Box?

  • Cirrus Research CR308 Sound Level Meter
  • Windshield
  • 2 x AA batteries
Specification
  • Applicable standards: IEC61672-1:2013 Class 2
  • Measurement range:
    30dB (A) to 130dB (A)
    40dB (C) to 130dB (C)
  • Frequency Weightings: A and C
  • Time weightings: Fast (F) and Slow (S)
  • Display functions: Normal, Maximum, Minimum, C peak
  • Measurement Functions:
    LAF, LAS, LCF, LCS, LCpk
    Leq (CR:310), LEq8h (CR:310)
  • Noise floor: <25dB (A) and 35dB (C) Display flags Threshold limit, Overload, Under-range
  • Auto Calibration: ±4.5dB
  • Reference Point: 94dB (akHz), 92.9dB (8kHz)
  • Setting Time: 60s
  • Display: Backlit 128 x 64 LCD, resolution 0.1dB
  • Resolution: 0.1dB
  • Electrical inputs: 5V power in via mini USB
  • Power: 2 x AA/LR6 1.5V batteries or %V DC via mini usb
  • Battery life: 24 hours
  • Microphone: 1/4" pre-polarised electret condenser type HY:205
  • Operating Temperature: 0ºC tom 40ºC
  • Operating humidity: 25% to 90%
  • Atmospheric pressure: 65 kPa to 109 kPa
  • Storage Temperature: -20ºC to 60ºc
  • Dimensions: 215mm x 68mm x 32mm
  • Weight: 220g (including battery)
  • Electrical outputs: AC (TIP 3.5mm jack) and DC (middle 3.5mm jack)
  • DC output: Voltage 15m V/dB, range 450mV to 1950mV
  • AC output: RMS 2V
Label Type Size Download
pdf Cirrus Research CR308/CR310 Sound Level Meter Datasheet pdf 587.5 KB Download
