Cirrus Research CR310 Integrating Sound Level Meter

Cirrus Research
SKU: CIRRCR310
  • Carry out basic basic workplace noise assessments
  • Integrating Sound level meter compliant with IEC 61672-1:2013 Class 2
  • Measure sound pressure (SPL), maximum sound level (Lmax) and Cpeak data
More Info
Typically ships in 3-5 working days

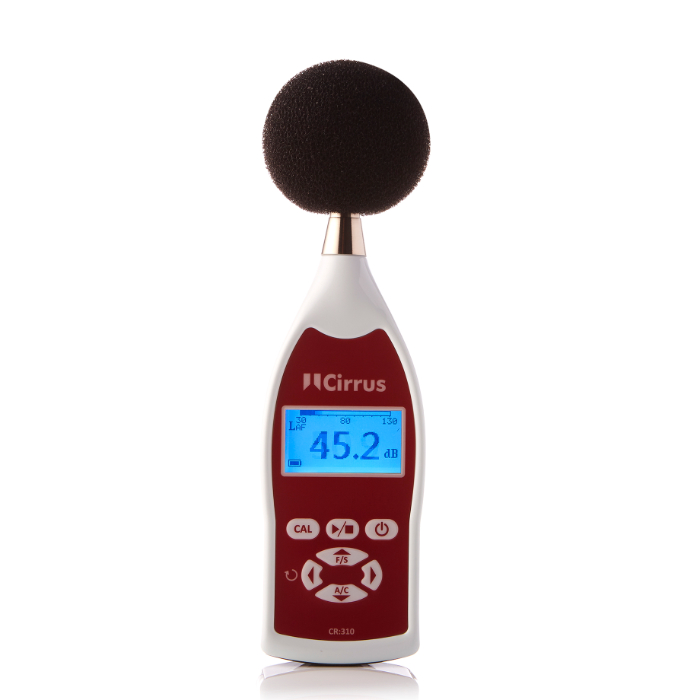

Cirrus Research CR310 Integrating Sound Level Meter

The Cirrus Research CR310 Integrating Sound Level Meter is the ideal tool too provide noise measurement data whilst performing basic noise work place assessments. The integrated sound level meter with a ½ pre-polarised elecret condenser microphone provides users with the ability to measure noise level data (Leq) and the overall dose values (LEq8hy) with accurate and reliable measurements that meet IEC 61672-1:2013 Class 2 standards.

The CR310 provide sound pressure (SPL), maximum sound level (Lmax) and Cpeak data whilst displaying A and C frequency weightings with measurement ranges of 30dB (A) to 130 dB (A) and 40 dB (C) to 130 dB (C). Further functions include the measuring of Fast (F) and Slow (S) time weightings, providing users with the perfect tool to complete a number of applications such as general noise surveys, alarm installation and testing and machinery noise checks.

Cirrus Sound level meter Comparison

  CR308 CR308 Kit CR310 CR310 Kit
Basic Noise Level Testing ✔ ✔
Basic at work place noise assessments     ✔ ✔
Power supply: 2 x AA Alkaline batteries ✔ ✔ ✔ ✔
Average operating time 24 hours 24 hours 24 hours 24 hours
Applicable standards IEC 61672-1: 2013 Class 2 IEC 61672-1: 2013 Class 2 IEC 61672-1: 2013 Class 2 IEC 61672-1: 2013 Class 2
Total measurement range Peak range: 40dB(C)-130dB(C), RMS Range:30dB(A) Peak range: 40dB(C)-130dB(C), RMS Range:30dB(A) Peak range: 40dB(C)-130dB(C), RMS Range:30dB(A) Peak range: 40dB(C)-130dB(C), RMS Range:30dB(A)
Frequency Weightings A,C A,C A,C A,C
Time Weightings Fast, Slow Fast, Slow Fast, Slow Fast, Slow
SPL ✔ ✔ ✔ ✔
LEQ     ✔ ✔
LCPEAK     ✔ ✔
Acoustic calibrator   ✔   ✔
Kit case   ✔   ✔

The CR310 can be powered by 2 x alkaline AA batteries or by 5V DC via mini USB. The meter has a battery life of up to 24 hours. The CR310 boasts a series connection enabling syncing with an optional printer.

The backlit LCD display of the CR310 offers normal, maximum, minimum and C peak display functions. The noise floor provides < 25dB (A) and 35dB (C) Display Flags Threshold Limit, Overload, Under-range measurements with an auto calibration range of ±4.5dB. The CR310 has both AC and DC outputs allowing for connectivity to other compatible devices if data logging is required.

Key Features

  • Integrating Sound level meter
  • Compliant with IEC 61672-1:2013 Class 2
  • Carry out basic occupational noise measurements with Leq and Leq8h data
  • Sound pressure (SPL), maximum sound level (Lmax) and Cpeak data
  • Displaying A and C frequency weightings with measurement ranges of 30dB (A) to 130 dB (A) and 40 dB (C) to 130 dB (C)
  • Measure Fast (F) and Slow (S) time weightings
  • Battery powered with up to 24 hour battery life
  • Carry out basic occupational noise measurements with Leq and Leq8h data
  • ½ pre-polarised elecret condenser microphone
  • 24 hour battery life
  • AC and DC outputs allowing for connectivity to other compatible devices
  • Applications such as general noise surveys, alarm installation and testing and machinery noise checks can be completed

What's In The Box?

  • Cirrus Research CR310 Integrating Sound Level Meter
  • Windshield
  • Instrument Handbook
  • Batteries
Specification
  • Applicable standards: IEC61672-1:2013 Class 2
  • Measurement range:
    30dB (A) to 130dB (A)
    40dB (C) to 130dB (C)
  • Frequency Weightings: A and C
  • Time weightings: Fast (F) and Slow (S)
  • Display functions: Normal, Maximum, Minimum, C peak
  • Measurement Functions:
    LAF, LAS, LCF, LCS, LCpk
    Leq (CR:310), LEq8h (CR:310)
  • Noise floor: <25dB (A) and 35dB (C) Display flags Threshold limit, Overload, Under-range
  • Auto Calibration: ±4.5dB
  • Reference Point: 94dB (akHz), 92.9dB (8kHz)
  • Setting Time: 60s
  • Display: Backlit 128 x 64 LCD, resolution 0.1dB
  • Resolution: 0.1dB
  • Electrical inputs: 5V power in via mini USB
  • Power: 2 x AA/LR6 1.5V batteries or %V DC via mini usb
  • Battery life: 24 hours
  • Microphone: 1/4" pre-polarised electret condenser type HY:205
  • Operating Temperature: 0ºC tom 40ºC
  • Operating humidity: 25% to 90%
  • Atmospheric pressure: 65 kPa to 109 kPa
  • Storage Temperature: -20ºC to 60ºc
  • Dimensions: 215mm x 68mm x 32mm
  • Weight: 220g (including battery)
  • Electrical outputs: AC (TIP 3.5mm jack) and DC (middle 3.5mm jack)
  • DC output: Voltage 15m V/dB, range 450mV to 1950mV
  • AC output: RMS 2V
Label Type Size Download
pdf Cirrus Research CR308/CR310 Sound Level Meter Datasheet pdf 587.5 KB Download
