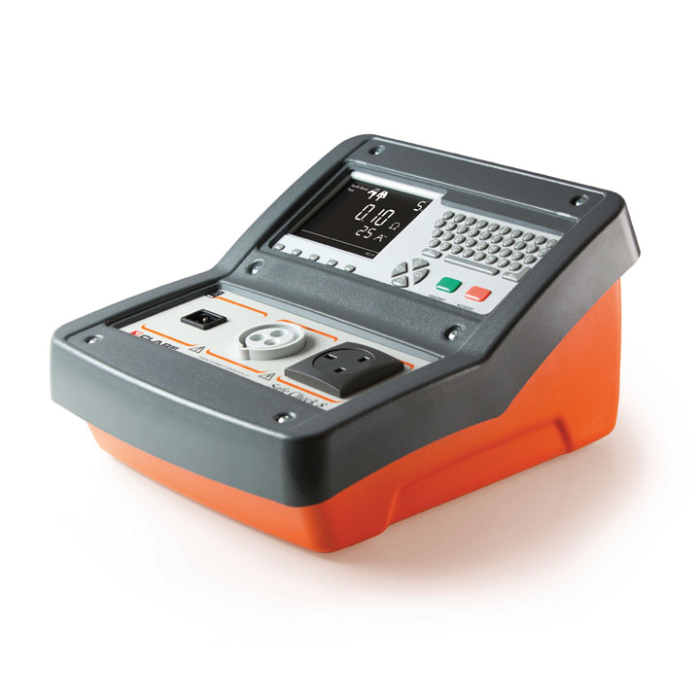

Clare Safecheck 8 - Hire and Rental Industry PAT Tester

SKU: CLARESAFECHECK8
Bench-mounted PAT tester offering traceable PAT test results that can be stored for products used by the hire, rental and service industry.
More Info
In Stock - Available Next Day

Clare Safecheck 8 - Hire & Rental Industry PAT Tester

The Clare Instruments SafeCheck 8 Hire & Rental Industry PAT Tester has been designed specifically to ensure that traceable test results can be stored for rental products when they are PAT tested in between hires.These test results are used to clearly demonstrate that a rental product supplied into the DIY or construction industry is electrically safe and functions correctly.

The HAE (Hire Association Europe) provides clear guidance of the HSE requirements under the Electricity at Work regulation; products should be re-tested to the same standard as they are at the time of manufacture.

The SafeCheck 8 complies with these guidlines, performing earth/ground bond, flash/hipot and a function test to check correct operation. This may include current consumption, continuity, polarity and leakage measurements.

Please note that the majority of in-service PAT testers cannot meet these test requirements, as they have their test output limited to less than 2.5 mA for leakage delivered under the flash/hipot test. A large proportion of in-service PAT testers do not offer this mandatory flash/hipot test.

Clare Instruments SafeCheck 8 PAT Tester Features:

  • The only dedicated Hire and Rental Industry specific PAT tester
  • Stores up to 6000 test results in flash secure memory
  • Has built in pre-configured tests for Class I, Class II and IEC extension lead/power cord
  • Test sequences can be entered from barcodes
  • Earth Bond test
  • Hipot dielectric withstand test
  • DC Insulation test
  • Full function run test
  • Leakage test
  • Continuity and polarity test
  • Visual inspection test field included
  • Flash memory stores results without mains supply

The Clare SafeCheck 8 can read power tool appliance asset or serial numbers via an optional barcode scanner and can then transfer this information onto an indelible tested pass/fail label via a Desk Test n Tag Printer. Appliance or asset numbers may then be tracked through the Pat Guard PAT Testing software application.

What's In The Box?

  • Clare SafeCheck 8 tester
  • HT Probe
  • 3 pin guard link connector
  • Earth bond clip
  • Mains lead
  • Instruction Manual
  • Calibration Certificate
Specification

Flash/Hipot Test (Class I)

  • Test Voltage Class l: 1.25kV AC
  • Display Range: 0.1 - 10 mA AC
  • Resolution: 0.01mA
  • Accuracy: +/- 5% +/- 2 digits
  • Pass Levels: selectable up to 10mA

Flash/Hipot Test (Class II)

  • Test Voltage Class ll: 2.5 kV AC
  • Display Range: 0.1 - 10 mA AC
  • Resolution: 0.01mA
  • Accuracy: +/- 5% +/- 2 digits
  • Pass Levels: selectable up to 10mA
DC Insulation Test

  • Test Voltage: 500V
  • Display Range: 0.1 - 99.99MΩ
  • Accuracy: +/- 5% +/- 2 digits (up to 19.99MΩ)

Earth/Ground Bond Test

  • Test Voltage: 6V AC (open circuit)
  • Test Current: 25A, 10A, 4A, 100mA AC into short circuit
  • Range: 0.04Ω - 20Ω
  • Resolution: 1mΩ
  • Accuracy: +/- 5% +/- 2 digits
  • Pass Levels: user selectable

Substitute Leakage (Short to Case Test)

  • Test Voltage: 40V AC o/c
  • Display Range: 0.1 - 20.0mA AC
  • Resolution: 0.01mA
  • Accuracy: +/- 10% +/- 2 digits (1.00 - 20mA)
  • Pass Levels: selectable up to 15mA

Earth Leakage

  • Test Voltage: Mains Supply
  • Display Range: 0.1 - 20.0mA AC
  • Resolution: 0.01mA
  • Accuracy: +/- 10% +/- 2 digits (1.00 - 20mA)
  • Pass Levels: selectable up to 10mA

Power / Run / Load Tests

  • Resolution: 0.01kVA
  • Measured Load: 0 - 4kVA
  • Accuracy :+/- 10 of reading, +/- 2 digits

IEC Power Cord Test

  • Test Voltage: 40V AC
  • Detects: Good, Open, Short, Reversed
  • Dimensions: 450 x 410 x 155mm
  • Weight: 8.8kg
  • Supply Voltage Selectable: 115V / 230V 50 or 60Hz
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -10°C to 50°C
  • EN50191 Compliant when used with appropriate accessories
