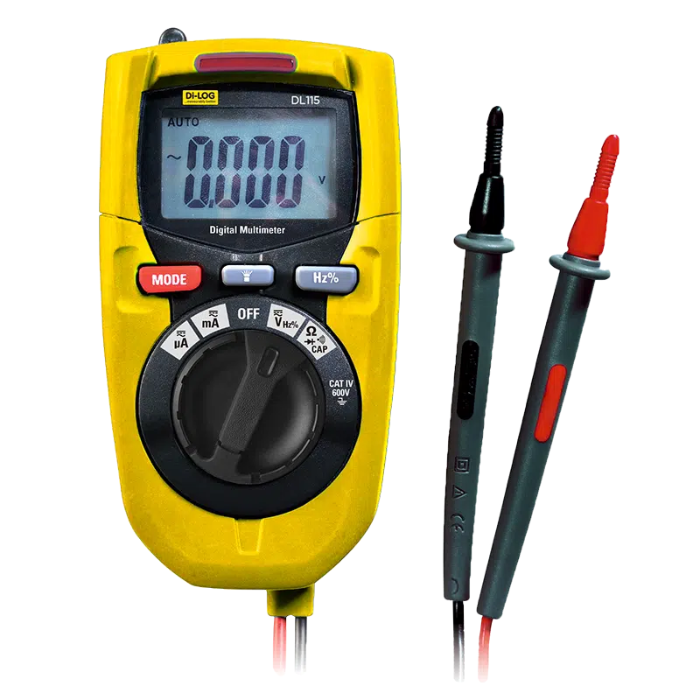

DiLog DL115 600V Mini Multimeter with NCV and Torch

DiLog DL115 600V Mini Multimeter with NCV and Torch

The DiLog DL115 600V Mini Multimeter with NCV and Torch is a compact, all‑in‑one testing solution that combines a digital multimeter, a non‑contact voltage detector, and a bright LED torch, giving you the flexibility to work safely and efficiently across a wide range of applications.

The DL115 includes a 4000‑count backlit display that ensures readings remain easy to view in low‑light environments, with the built‑in torch providing additional illumination for tight or poorly lit spaces.  An integrated non‑contact voltage detector (100–600 V AC) enhances safety by allowing you to identify live AC voltage without direct contact, reducing risk during inspection and troubleshooting.

The DL115 accurately measures AC/DC voltage up to 600V, AC/DC current from 0.1µA to 200mA, and resistance from 0.1Ω to 40MΩ, making it suitable for both low‑power electronics and general electrical work.  It also supports capacitance testing up to 100µF, frequency measurement up to 10kHz, diode testing, and audible continuity checks for quick circuit verification.

Designed for everyday use, the DL115 features a slim yet rugged housing that stands up to demanding environments while remaining lightweight enough to fit comfortably in your pocket or tool pouch.  Its CAT IV 600V safety rating provides confidence when working in high‑energy installations, while auto‑ranging functionality removes the guesswork by automatically selecting the correct measurement range, helping deliver faster readings, fewer errors, and a smoother workflow.  The fixed‑probe design, intuitive interface, and clear audible alerts further simplify operation, whether you're a seasoned electrician, field engineer, or capable DIY user.

Par number: DL115

Key Features

• Measure DC voltage from 1 mV to 600 V and AC voltage from 0.1 mV to 600 V with high accuracy
• Ideal for low-power circuits, measuring DC and AC current from 0.1 µA to 200 mA
• Wide range from 0.1 Ω to 40 MΩ, perfect for fault-finding and circuit analysis
• Test capacitors up to 100 µF and frequencies up to 10 kHz
• Safely detect live AC voltage in the 100–600 V range without physical contact
• Clear audio signals for continuity checks and a dedicated diode test function
• Automatically selects the optimal range for fast, fool proof operation
• Crisp, easy-to-read LCD screen with backlight for low-light environment
