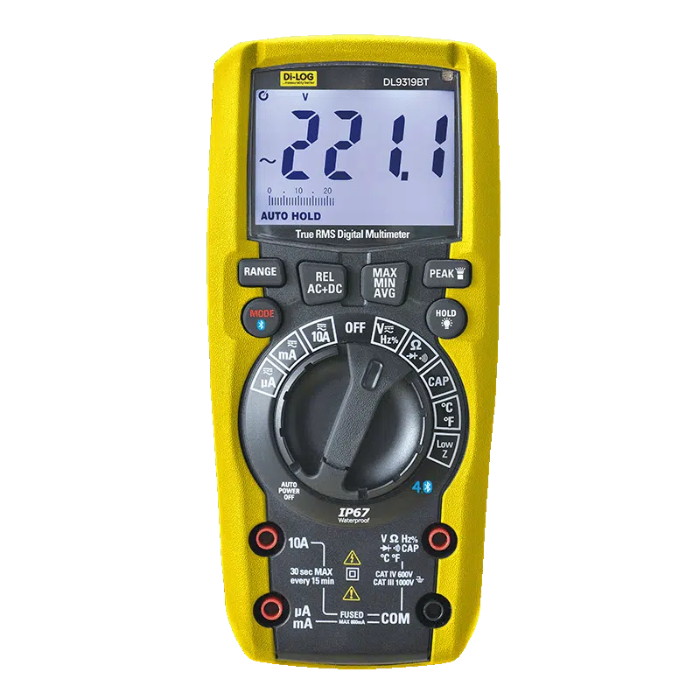

DiLog DL9319BT Auto-ranging TRMS Multimeter with Bluetooth

DiLog DL9319BT Auto-ranging TRMS Multimeter with Bluetooth

The DiLog DL9319BT Auto-ranging TRMS Multimeter with Bluetooth is designed for use across commercial, and residential environments, combining True-RMS measurement with smart connectivity to give professionals greater control over how they capture and manage data.

Accuracy sits at the core of the DL9319BT. True-RMS measurement ensures reliable readings even on non-linear loads, while the integrated Low Z (low impedance) mode helps eliminate ghost voltages caused by capacitive coupling. This is useful when confirming de-energised circuits or troubleshooting intermittent faults, where precision matters most. With a CAT III / CAT IV safety rating, it is well suited for high-energy environments, offering reassurance during critical testing tasks.

The DL9319BT handles a wide range of electrical parameters, including voltage up to 1000V AC/DC, current up to 10A, resistance up to 60MΩ, capacitance to 6000μF, and frequency up to 10kHz. Temperature measurement is also supported through the included K-type thermocouple, making it suitable for both electrical and thermal diagnostics.

Working in low-light or confined spaces is made easier with an ultra-bright built-in torch and an illuminated rotary dial. These practical features improve visibility without slowing you down, helping you stay focused and safe on the task at hand. The 6000-count backlit LCD display provides clear, easy-to-read results, even in challenging environments.

Bluetooth connectivity brings an added layer of efficiency. By pairing the meter with the Di-LOG mobile app, users are able to view readings in real time, log data remotely, and share results directly from a smartphone or tablet. This streamlines reporting and allows for more flexible working, particularly on larger or more complex jobs.

The DL9319BT has a double-moulded, fully sealed enclosure that offers protection against dust and water ingress, ensuring reliable operation in harsh conditions. Automatic power-off helps preserve battery life during downtime, with a manual override available when continuous use is required.

Part number: DL9319BT

Key Features

• Seamlessly connect to the Di-LOG app for real-time data capture, remote viewing, and easy sharing from your smartphone or tablet.
• True-RMS accuracy up to 1000V
• 6000-count backlit LCD display
• Multi-function measurement capabilities
• Minimises ghost voltage interference for more accurate readings
• Capture peak and average values effortlessly during testing
• Saves battery life after 15 minutes of inactivity, with manual override option
• Ultra-bright integrated light for safe testing in dark or confined spaces
• CAT III / CAT IV safety rated
• IP67-rated casing
