ETI 9202 Differential Manometer

ETI
SKU: ETI9202
Trustpilot

Never Beaten On Price



We’re always working hard to give you the best possible price, but if you find it cheaper somewhere else, we’ll endeavour to match the price.



Call 0113 248 9966 or contact us online

In Stock - Available Next Day
Recommended Add-ons
Need Some Help From Our Experts? chevron-right chevron-down

We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.



To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.

Members earn 80 reward points chevron-right chevron-down

Use reward points to get money off future purchases.



Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.

FREE Delivery & 60 Day Returns chevron-right chevron-down

We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.



Find out more on our delivery information page.

Key Features
  • Range of -137mbar to +137mbar with resolution of 0.1mbar and accuracy of ±0.3%
  • Suitable for differential pressure measurement in a range of settings
  • IP65-rated casing incorporates rubber seal and tough ABS housing

Related Categories

Manometers & Pressure Meters
Description

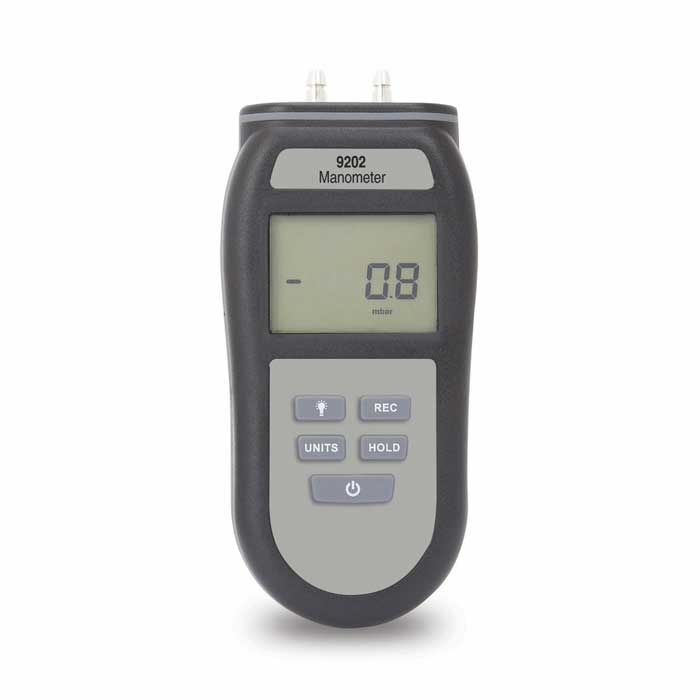

ETI 9202 Differential Manometer

The ETI 9202 Differential Manometer is capable of measuring pressure across a -137mbar to +137mbar range with a resolution of 0.1mbar, accuracy of ±0.3%, and repeatability of ±0.2%. It has pressure protection to over twice the maximum measurement capacity and it is ideal for technicians such as gas engineers and plumbers who wish to perform measurements of domestic gas systems, HVAC applications, ductwork and pressure drops across systems.

Measurements for P1, P2, and differential pressure are shown on the ETI 9202’s backlit digital display in any one of 11 different pressure units. It is capable of min/max pressure measurement and it possible to freeze the reading on screen with the display hold feature.

The ETI 9202 has a strong, IP65-rated outer casing that makes it ideal for taking measurements in industrial settings. The ABS construction helps withstand shocks whilst a rubber seal makes the instrument completely watertight. It has a 100-hour battery life - further preserved with an auto off feature.

The ETI 9202 is supplied with a pair of 500mm x ø4mm pressure connection hoses and is covered by a two-year warranty.

ETI part number: 825-902

Key Features

  • Range: -137mbar to +137mbar
  • Resolution: 0.1mbar
  • Accuracy: ±0.3%
  • Repeatability: ±0.2%
  • Differential pressure measurement
  • Multiple applications in different industrials
  • 11 different pressure units
  • Min/max pressure measurement
  • Supplied with 500mm x ø4mm pressure hoses
  • Two-year warranty
Specification
Show Trustpilot Reviews
Specification
Yes

Ranges / Resolutions

  • psi: ±2 / 0.01
  • inH2O: ±55.4 / 0.01
  • mbar: ±137.8 / 0.1
  • kPa: ±13.79 / 0.01
  • inHg: ±0.407 / 0.001
  • mmHg: ±103.4 / 0.1
  • ozin2: ±32 / 0.01
  • ftH2O: ±4.612 / 0.001
  • cmH2O: ±140.6 / 0.1
  • kgcm2: ±0.14 / 0.001
  • bar: ±0.137 / 0.001

General

  • Accuracy: ±0.3% FS (25˚C)
  • Repeatability: ±0.2% (Max. 0.5% F.S.)
  • Battery: 3 x 1.5V AAA
  • Battery life: 100 hours
  • Display: Custom LCD
  • Dimensions: 32mm x 71mm x 141mm
  • Weight: 220g|
Reviews
Trustpilot

£96.00 (Inc. VAT) £80.00 (Ex. VAT)
