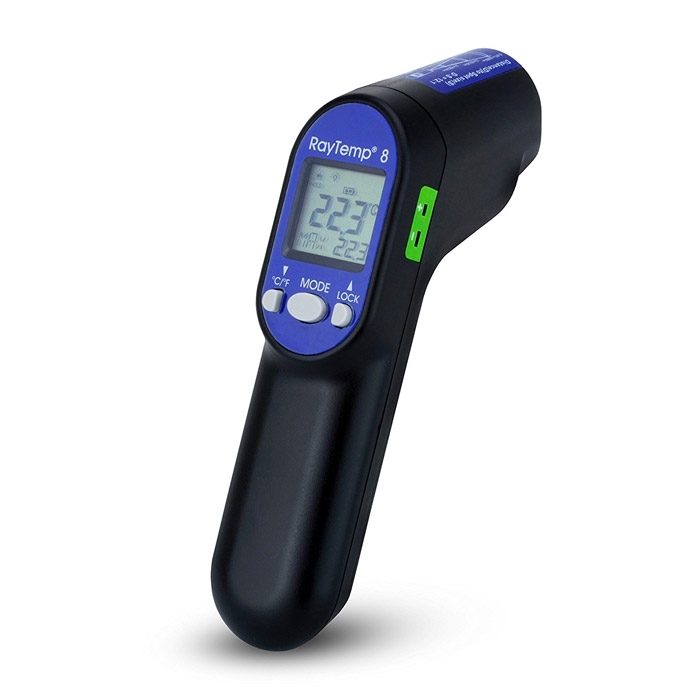

ETI RayTemp 8 Infrared Thermometer

SKU: ANTONRAYTEMP8-CONF
  • Measure surface temperature from -60˚C to 500˚C through non-contact IR sensor
  • Connects to type K for measuring air, liquid or surface temperature (-64˚C to 1370˚C)
  • Ergonomic pistol design and 8-spot laser guide to indicate measurement point
More Info

ETI RayTemp 8 Infrared Thermometer

The ETI RayTemp 8 Infrared Thermometer is capable of non-contact surface temperature measurement from -60˚C to 500˚C with a resolution of 0.1˚C or 1˚C and accuracy of ±2% or ±2˚C. The infrared sensor has a 12:1 distance-to-spot ratio so the user can stay well away from dangerously hot surfaces and emissivity is fully adjustable between 0.1 to 1 so the thermometer can be adapted for different surface types. It is also possible to plug in a type K thermocouple in order to measure air, surface or liquid temperature from -64˚C to 1370˚C (dependent on thermocouple).

Readings are shown on the ETI RayTemp 8’s clear digital display. The user can toggle between Fahrenheit and Celsius and there is also a data hold function which will lock the current reading on screen. The thermometer can be set to display the difference between the minimum and maximum temperature as well as average temperature. The ergonomic pistol grip makes the thermometer easy to use and an eight-dot laser guide shows the exact temperature measurement point. The instrument comes with batteries (180-hour battery life) and an instruction manual as standard and is covered by a 12-month warranty.

ETI part number: 814-045

ETI RayTemp 8 Infrared Kit

It is possible add a set of useful accessories to your purchase of an ETI RayTemp 8 in the form of the ETI RayTemp 8 Infrared Kit. It contains a type K penetration probe, a mini tub of 70 probe wipes, and a free ABS carry case.

ETI part number: 860-845

Key Features

  • IR range: -60˚C to 500˚C
  • IR accuracy: ±2% or ±2˚C
  • Distance to spot: 12:1
  • Emissivity: 0.1 to 1
  • Type K range: -64˚C to 1370˚C
  • Type K accuracy: ±1% or ±1˚C
  • Resolution: 0.1˚C to 1˚C
  • 180-hour battery life
  • 12-month warranty

What's In The Box?

  • ETI RayTemp 8 Infrared Thermometer
  • 2 x AAA batteries
  • Instructions for ETI RayTemp 8
Specification
  • Range (IR): -60˚C to 500˚C
  • Range (probe): -64˚C to 1370˚C
  • Resolution: 0.1˚C/˚F (-9.9˚C to 199.9˚C) or 1˚C
  • Accuracy (IR): ±2% or ±2˚C
  • Accuracy (probe): ±1% or ±1˚C
  • Distance to spot: 12:1
  • Emissivity: 0.95 default, adjustable 0.1 to 1
  • Battery: 2 x AAA alkaline
  • Battery life: 180 hours continuous use
  • Display: Custom LCD
  • Dimensions: 40 x 66 x 155mm
  • Weight: 185g
