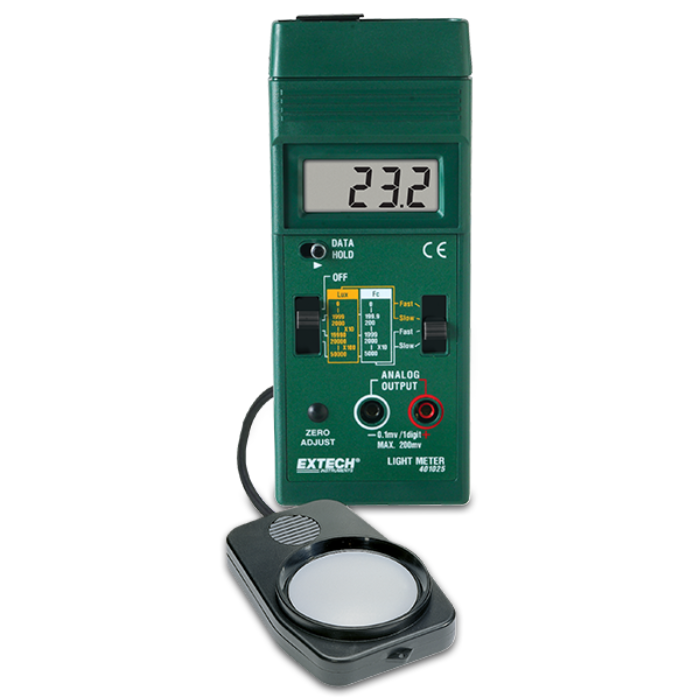

Extech 401025 Foot-Candle/Lux Light Meter

Extech Instruments
SKU: EXTE401025
  • Highly accurate light level measurements in either foot-candles or lux units
  • Features three ranges: fc (0-200, 0-2000 and 0-5000 fc) and lux (0-2000, 0-20000, 0-50000 lx)
  • With 5% accuracy using precision photo diode and colour correction filter
More Info
Typically ships in 7-10 working days

Extech 401025 Foot Candle/Lux Light Meter

The Extech 401025 Foot-Candle/Lux Light Meter accurately measures light levels in foot-candles (fc) and lux (lx) displaying brightness levels across three range settings:

  • Fc: low (0–200), medium (0–2000), and high (0–5000)
  • Lx: low (0–2000), medium (0–20,000), and high (0–50,000)

The Extech 401025 can detect small changes in brightness with a resolution of 0.1 fc or 1 lx and a ±5% accuracy. Its precision photo diode and a colour correction filter ensure that readings are consistently accurate, compensating for variations in light colour and angle. The meter is cosine and colour corrected and boasts a 13 mm LCD display.

Using a sliding switch, users can choose between fast or slow response times when taking quick or average readings of light levels. Additionally, the meter offers an analog output (1 mV per count), which allow users to capture and log readings to a recorder for a more in-depth light level analysis.

part number: 401025

Key Features

  • Accurately displays light level in terms of foot-candle or lux over three ranges: fc (0-200, 0-2000 and 0-5000 fc) and lux (0-2000, 0-20000, 0-50000 lx)
  • Resolution of 0.1 fc or 1 lux with 5% accuracy
  • Selects fast (0.2 second) or slow (0.4 seconds) response times
  • Monitor light levels using outputs; 1 mV per count analog output for capturing readings to a recorder
  • Uses precision photo diode and colour correction filter; Cosine/colour corrected
  • Comes with a 9 V battery and light sensor along with a 1.1 m (45") and protective cover

What's In The Box?

  • Extech 401025 Foot-Candle/Lux Light Meter
  • User manual
  • 1 x 9 V Battery
  • Light sensor
  • Protective cover with 1.1m (45") cable
Specification

General specifications

  • Display: 13 mm (0.5 in.) LCD
  • Measurement units: Lux, Ft-candle (Fc)
  • Ranges: Lux: 0 to 50,000 lx in 3 ranges; Foot-candle: 0 to 5,000 fc in 3 ranges
  • Sensor: Photo diode with cosine and color correction, designed to meet CIE
  • Zero adjust: Manual front panel adjustment
  • Sampling time: Approx. 0.4 seconds
  • Response Time: Fast: 0.4 seconds; Slow: 2 seconds
  • Over input indication: Indication of "1__"
  • Analog Output: 0.1 mV per digit (maximum: 200 mV DC)
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Operating Humidity: 80% RH maximum
  • Power Supply: 9V DC battery
  • Power Current: Approx. 2 mA DC
  • Weight: 220 g (0.52 lbs.)
  • Main instrument dimensions: 163 x 70 x 30 mm (6.4 x 2.8 x 1.2 in.)
  • Sensor dimensions: 85 x 55 x 12 mm (3.2 x 2.2 x 0.5 in.)

Range specifications

Lux

  • Range -
    2,000 Lux
    20,000 Lux
    50,000 Lux
  • Display range -
    0 to 1,999 Lux
    2,000 to 19,990 Lux
    20,000 to 50,000 Lux
  • Resolution -
    1 Lux
    10 Lux
    100 Lux
  • Accuracy (Full Scale) -
    ± (5% + 2digits)
    ± (5 % + 2digits)
    ± (5 % + 2digits)

Foot-candle (Fc)

  • Range -
    200 Fc
    2,000 Fc
    5,000 Fc
  • Display range -
    0 to 199.9 Fc
    200 to 1,999 Fc
    2,000 to 5,000 Fc
  • Resolution -
    0.1 Fc
    1 Fc
    10 Fc
  • Accuracy (Full Scale) -
    ± (5% + 2digits)
    ± (5% + 2digits)
    ± (5% + 2digits)
