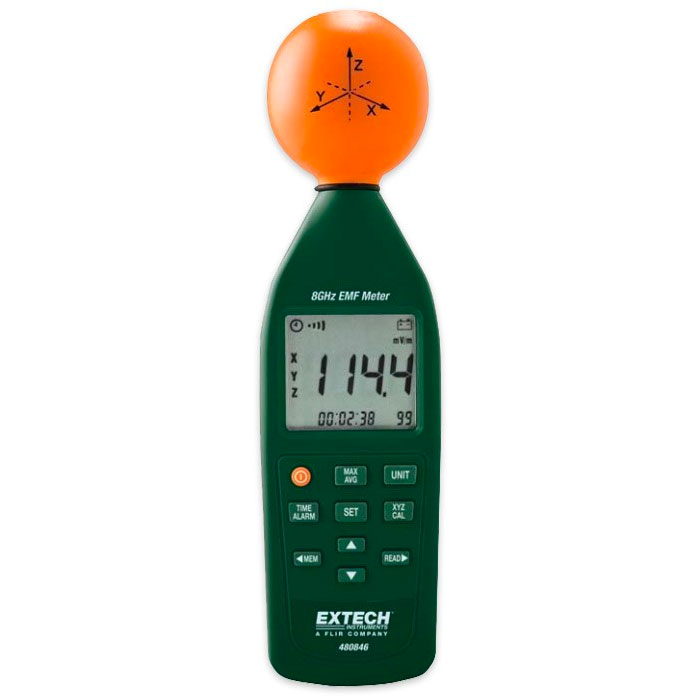

Extech 480846 RF EMF Strength Meter

SKU
EXTE480846
High frequency RF/EMF Strength Meter for measuring electromagnetic field strength in the range of 10MHz to 8GHz.
More Info
inc VAT £560.40 ex VAT £467.00
In Stock - Available Next Day


Product Details

Extech 480846 RF/EMF Strength Meter

The Extech 480846 RF/EMF Strength Meter is a broadband device for monitoring high frequency radiation in the range of 10MHz to 8GHz. In addition, the non-directional electric field and high sensitivity of this EMF Meter allows measurements of electric field strength in TEM cells and absorber rooms.

This RF/EMF meter is used to indicate radiated electro-magnetic fields such as those from radio broadcasting and TV transmitters. The Extech 8GHz electromagnetic field strength meter also provides an instantaneous and maximum power density reading, particularly useful at high frequencies when entering an exposed area.

Extech 480846 Electromagnetic Field Strength Meter Applications

  • Mobile phone base station antenna radiation
  • RF power measurement for transmitters
  • Wireless LAN (Wi-Fi) detection
  • Wireless communication applications (CW, TDMA, GSM, DECT)
  • Microwave leakage
  • Radiation safety level tests
  • RF "Electrosmog" detection
  • Locating RF hot spots in schools, offices and in the home

Extech 480846 8GHz RF/EMF Strength Meter Features:

  • Measurement optimized for 900MHz, 1800MHz, 2.7GHz, 3.5GHz and 8GHz
  • Non-directional (isotropic) measurement with three-channel (triaxial) measurement probe
  • Max Hold and Average functions and level exceed audible alarm with user selectable threshold
  • Manual store/recall up to 99 sets
More Information
Specification
  • Frequency Range: 10MHz to 8GHz (optimized for 900MHz, 1800MHz, 2.7GHz, 3.5GHz & 8GHz)
  • Directional Characteristic: Isotropic, 3-dimensional
  • Units of Measure: mV/m, V/m, μA/m, mA/m, μW/m², mW/m ², W/m², μW/cm ² , mW/cm²

Measuring Ranges

  • 20mV/m to 108.0V/m, 0.1mV/m
  • 53μA/m to 286.4mA/m, 0.1μA/m
  • 1μW/m² to 30.93W/m², 0.1μW/m²
  • 0μW/cm² to 3.093mW/cm², 0.001μW/cm²
  • Audible Alarm: Adjustable threshold with On/Off
  • Memory: Manual store/recall of 99 sets
  • Dimensions: 67 x 60 x 247mm
  • Weight: 250g
