Extech EX623A AC/DC Clamp Meter with IR and Dual Type K

Extech Instruments
SKU: EXTEEX623A
  • 600A True RMS AC/DC clamp meter with 32mm jaw
  • Built-in IR thermometer plus dual Type K (T1, T2, T1-T2)
  • LoZ, LPF, NCV and inrush for more dependable site readings
More Info
Typically ships in 3-5 working days

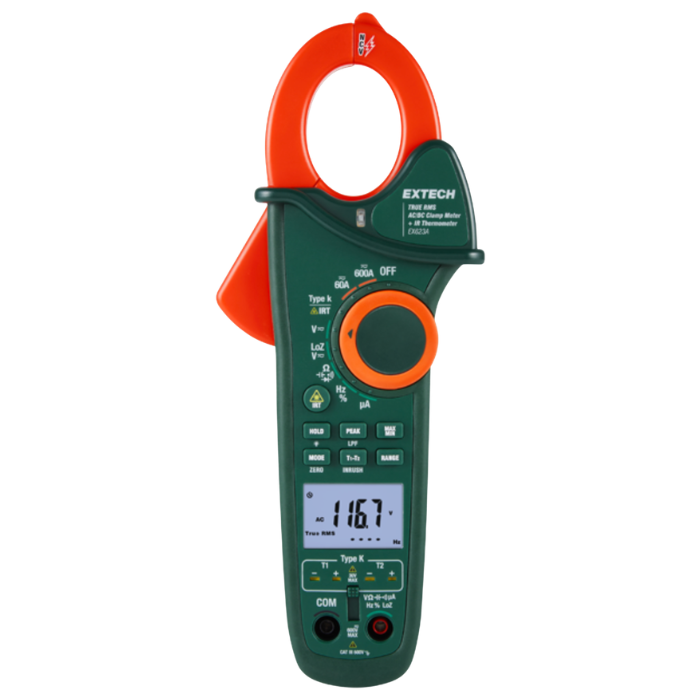

Extech EX623A AC/DC Clamp Meter with IR and Dual Type K

The Extech EX623A AC/DC Clamp Meter is a True RMS clamp meter designed for electrical testing and troubleshooting in maintenance and HVAC applications. It measures up to 600A AC/DC with a 32mm jaw opening and includes a built-in non-contact infrared thermometer with laser pointer for locating hot spots.

Dual Type K temperature inputs support T1, T2, and T1-T2 differential temperature measurement, alongside multimeter functions for AC/DC voltage, resistance, capacitance, frequency, duty cycle, diode test, and continuity. A DC micro-amp function supports flame rod measurements in HVAC systems.

For safer and more reliable readings on site, the EX623A includes Non-Contact Voltage detection, LoZ mode to reduce ghost voltages, a Low Pass Filter for noisy electrical environments, and an inrush current feature to capture start-up current. The backlit 6000-count display, data hold, and auto power off functions support everyday use.

Extech part number: EX623A

Key Features

  • True RMS clamp meter measuring up to 600A AC/DC
  • 32mm jaw opening for conductors up to 500 MCM
  • Built-in IR thermometer with laser pointer (-50 to 270°C)
  • Dual Type K inputs for T1, T2 and T1-T2 (-50 to 1000°C)
  • Non-Contact Voltage detection for checking live circuits
  • DC micro-amp range 0.1 to 600µA for HVAC flame rod measurements
  • LoZ mode helps reduce false readings from ghost voltages
  • Low Pass Filter for improved accuracy in electrically noisy environments
  • Inrush current feature (100ms) for start-up current capture
  • Measures AC/DC voltage up to 600V plus resistance, capacitance, frequency, duty cycle, diode and continuity
  • 6000-count backlit display with data hold
  • CAT III 600V safety rating
Specification
  • AC Current – 0.01 A to 600 A
  • AC Current Basic Accuracy - ±(1.5% + 5d)
  • AC Voltage – 0.1 mV to 600 V
  • Capacitance – 0.001 nF to 40 mF
  • DC Current – 0.01 A to 600 A
  • DC Microcurrent - 0.1 µA to 600 µA
  • DC Voltage – 0.1 mV to 600 V
  • Duty Cycle – 0.5% to 99.0%
  • Frequency - 0.001 Hz to 100 kHz / Frequency (Clamp) 0.1 Hz to 400 Hz
  • Jaw Size – 32 mm (1.25 in)
  • Non-Contact
  • Voltage (NCV) Detector – Yes
  • Resistance - 0.1 Ω to 60 M Ω
  • Temperature (IR) Max Resolution - -50°C to 270°C (-58°F to 518°F)
  • Temperature (Type K) Max Resolution - -50°C to 1000°C (-58°F to 1832°F)
  • Dimensions – 241 mm x 96 mm x 45 mm (9.4 in x 3.7 in x 1.74 in)
  • Displays – 6000 counts
  • Safety Category – CAT III-600 V
  • Warranty – 2 years
  • Weight – 315 g (11.11 oz)
