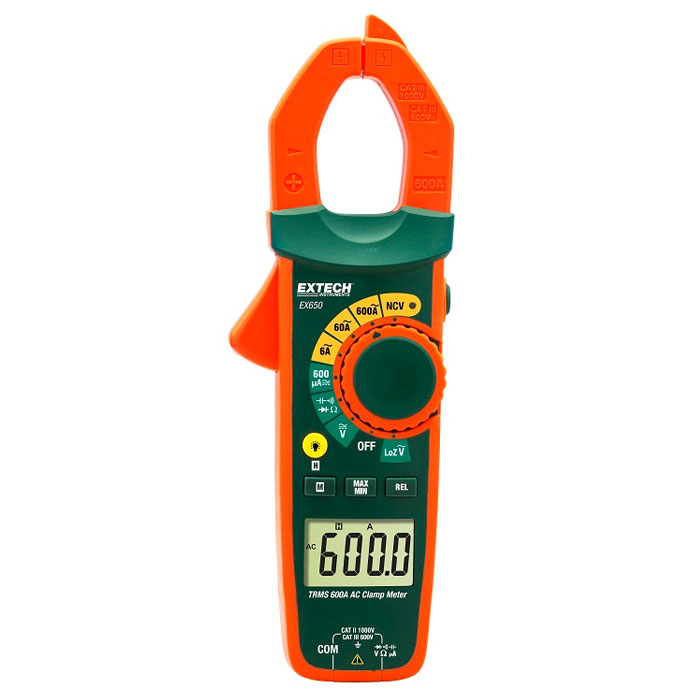

Extech EX650 True RMS 600A AC Clamp Meter

SKU: EXTEEX650
  • True RMS AC current measurement up to 600A
  • Featuring Jaw opening up to 30mm
  • Measure voltage, capacitance, resistance, continuity and diode
More Info
In Stock - Available Next Day

Extech EX650 True RMS 600A AC Clamp Meter

Providing highly accurate AC current measurement up to 600A, the Extech EX650 True RMS 600A AC Clamp Meter features a 1.18" (30mm) jaw, meaning it is best suited for clamping directly around small to medium-sized conductors (up to 350MCM).

Suitable for use as a basic digital multimeter, the Extech EX650 also measures AC/DC voltage (up to 1000V DC, 750V AC), resistance (to 60MΩ) and capacitance (to 60mF). It also features built-in continuity and diode testing procedures, alongside non-contact voltage detection - perfect for ensuring a circuit is dead before you begin testing.

Boasting a LoZ mode to prevent false readings caused by ghost voltages, μA function for HVAC flame rod current measurements and a 6000 count backlit LCD display, the Extech EX650 is CAT IV 600V and CAT III 1000V safety rated, also offering data hold, MIN/MAX functions and automatic power off to conserve battery life.

Extech EX650 Key Features:

  • Measures AC current to 600A
  • Provides True RMS for accurate AC measurements
  • 30mm (1.18") jaw size accommodates conductors up to 350MCM
  • 6000-count backlit LCD display
  • Low impedance (LoZ) prevents false readings caused by ghost voltages
  • Non-contact voltage detector with LED indicator
  • Useful built-in torch light for working in dimly-lit areas
  • AC voltage measurements to 750V
  • DC voltage measurements to 1000V
  • Resistance measurements to 60MΩ
  • Capacitance measurements to 60mF
  • Continuity and diode testing
  • Data hold function temporarily freezes current value on the screen
  • MIN/MAX mode
  • Relative function
  • Automatic power off

What's In The Box?

  • Extech EX650 Clamp Meter
  • Test Leads
  • 3 x AAA Batteries
Specification
  • AC Current (Max Resolution): 6A, 60A, 600A (0.001A)
  • DC Voltage (Max Resolution): 1000V (0.1μA)
  • AC Voltage (Max Resolution): 750V (1mV)
  • Non-Contact Voltage: 100 to 1000V
  • Resistance (Max Resolution): 60MΩ (0.01nF)
  • Continuity/Diode Test: Yes
  • Dimensions: 228 x 77 x 41mm
  • Weight: 9.4oz (265g)
Label Type Size Download
pdf Extech EX65x Series Datasheet pdf 528.4 KB Download
