Extech PRC10 Current Calibrator 0 to 24mA

SKU
EXTEPRC10
Current calibrator for testing transducers, transmitters, controllers and other industrial process components.
More Info
inc VAT £345.60 ex VAT £288.00
In Stock - Available Next Day


Product Details

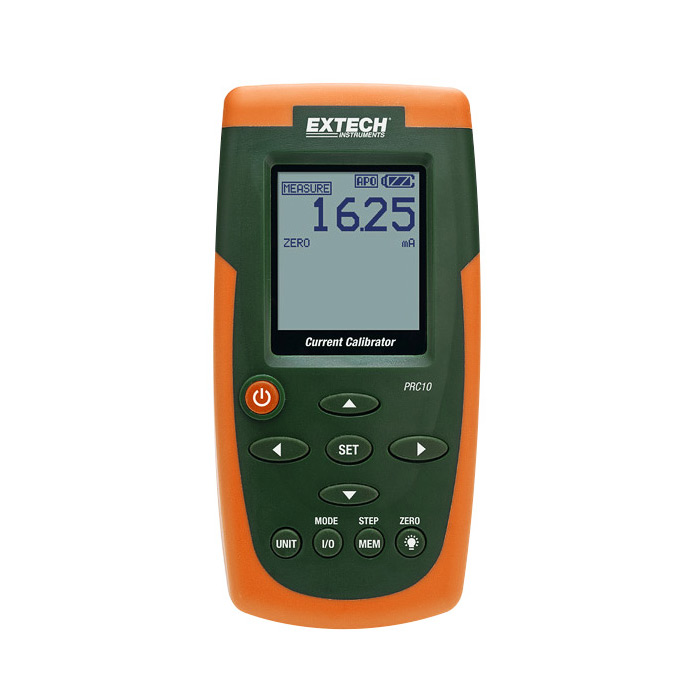

Extech PRC10 Current & Voltage Calibrator

The Extech PRC10 Current and Voltage Calibrator provides plant and electrical technicians with a straightforward way of monitoring and calibrating process components including transmitters, transducers, indicators and sensors.

Extech PRC10 Calibrator Features

  • 0 to 24mA readout
  • 24V DC power source for 2-wire current loop
  • Up to five user adjustable calibration presets
  • Palm-sized double moulded housing and large dot-matrix digital backlit LCD
  • Standard banana I/O ports
  • Large battery bank for extended work cycle
  • External power adapter for continuous work cycle
What's In The Box?
  • Extech PRC10 Process Current Calibrator
  • Test leads
  • Crocodile Clips
  • 100V-240V AC Universal Adaptor with 4 plugs
  • 6 x 1.5V AA batteries
  • Hard Carrying Case
More Information
Specification
  • Power/Measure: Provides power (24V DC) to loop & measures current
  • Input/Output Ranges
  • 0 to 19.99mA (0.01mA resolution)
  • 0 to 24.0mA (0.1mA resolution)
  • 0 to 1999mV (1mV resolution)
  • 0 to 20.00V (10mV resolution)
  • Accuracy: 0.01% ±1 digit
  • Dimensions: 159 x 80 x 44mm
  • Weight: 232g
