Extech PRC20 Thermocouple Calibrator

Extech Instruments

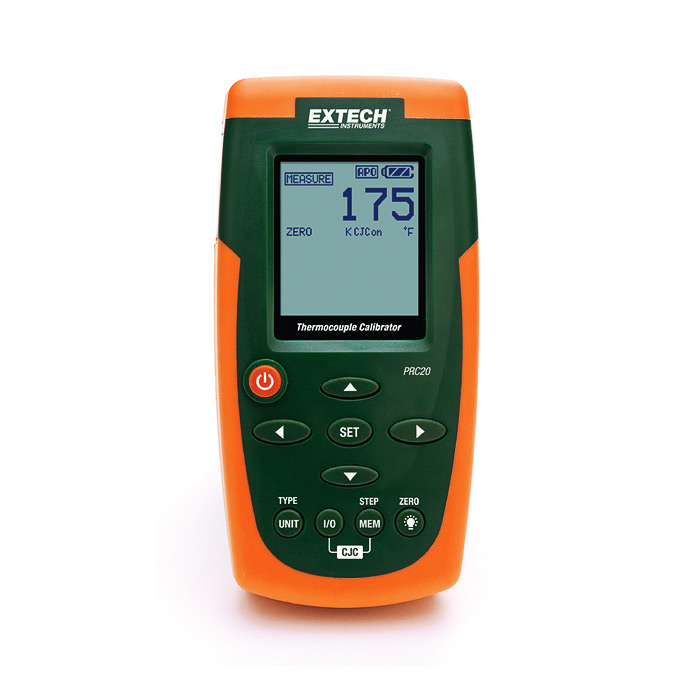

main product photo
SKU
EXTEPRC20
Calibrate, measure and source 8 types of thermocouple devices including Types J, K, T, E, C, R, S and N.
More Info
inc VAT £450.00 ex VAT £375.00
Typically ships in 7-10 working days


Product Details

Extech PRC20 Thermocouple Calibrator

The Extech PRC20 Thermocouple Calibrator enables users to source and measure 8 types of thermocouple devices including Types J, K, T, E, C, R, S and N. The high accuracy calibration function simulates precision outputs, ideal for lab and field calibration of sensors, thermocouple probes and thermometers. In addition, the PRC20 is useful for temperature control process troubleshooting.

Extech PRC20 Temperature Calibrator Features

  • Source and measure 8 thermocouple type devices (J, K, T, E, C, R, S and N)
  • CJC - Cold Junction Compensation function
  • Up to five user adjustable calibration presets
  • Ergonomic double moulded housing and large backlit LCD with thermocouple type indication
  • Displays output in terms of millivolts or temperature based on thermocouple tables
  • Mini thermocouple connector
  • Large battery bank for extended work cycle
  • External power adapter for continuous work cycle
What's In The Box?
  • Extech PRC20 Process Calibrator
  • Calibration Cables
  • 100V-240V AC Universal Adaptor with 4 plugs
  • 6 x 1.5V AA batteries
  • Hard Carrying Case
More Information
Specification
  • Type J: -50 to 1000°C, 0.05% rdg ±1°
  • Type K: -50 to 1370°C, 0.05% rdg ±1°
  • Type T: -120 to 400°C, 0.05% rdg ±1°
  • Type E: -50 to 750°C, 0.05% rdg ±1°
  • Type C: 0 to 1750°C, 0.05% rdg ±1°
  • Type R/S: 0 to 1750°C, 0.05% rdg ±1°
  • Type N: -50 to 1300°C, 0.05% rdg ±1°
  • Voltage: -10.00mV to 60.00mV, 10μV ±1°
  • Resolution: 0.1° (up to 999.9) or 1° (over 999.9°) for J, K, T, E ; 1° for R, N; 0.5° for C, S
  • Input Impedance: 10MΩ
  • Sampling Time: 4 times/second
  • Dimensions: 159 x 80 x 44mm
  • Weight: 225g
