Extech SDL600 Sound Level Meter/Datalogger

SKU
EXTESDL600
  • High level of accuracy (±1.4dB)
  • Store up to 20M readings using 2GB SD memory card (included)
  • 30 to 130dB measurement range with auto or manual ranging
More Info
inc VAT £467.68 ex VAT £389.73
Typically ships in 7-10 working days


Product Details

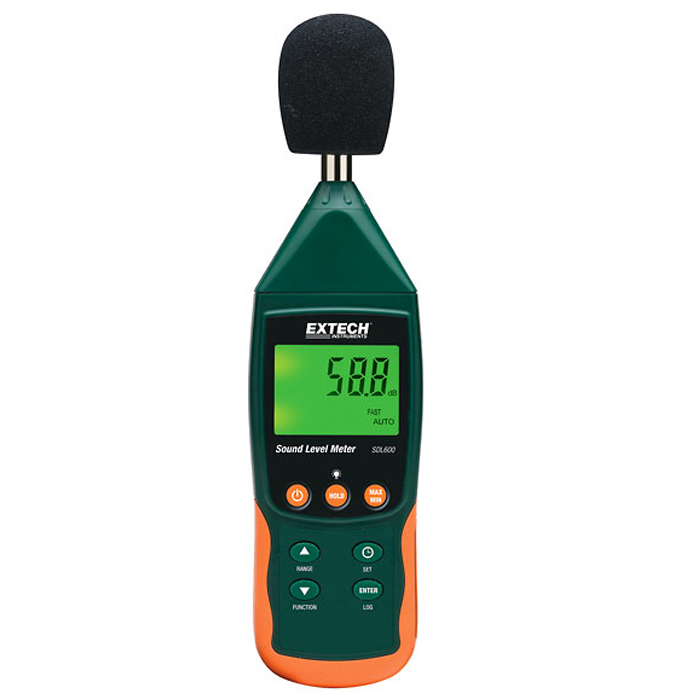

Extech SDL600 Sound Level Meter/Datalogger

Measuring 30 to 130dB across three ranges with a superb ±1.4dB accuracy, the Extech SDL600 Sound Level Meter/Datalogger is the perfect instrument for sound measurement.

Capable of storing up to 20 million records on the supplied 2GB SD card, the Extech SDL600 allows users to quickly upload results to their computer, negating the need for manual record keeping.

Providing auto or manual ranging and a user-defined sampling rate, the Extech SDL600 also offers MIN/MAX measurements, a data hold function, auto shut down when left idle and the ability to stamp recording with real date and time stamps for easy reference.

Compliant with IEC 61672-1 (giving it a class 2 sound level meter rating), the Extech SDL600 is lightweight and portable, ideal for handheld use or static for prolonged testing.

Extech SDL600 Key Features

  • Sound level meter with fantastic accuracy (±1.4dB)
  • Meets ANSI and IEC 61672-1 Type 2 standards
  • 30 to 130dB measurement range with auto or manual ranging
  • Lightweight and portable, suitable for handheld use or static for prolonged testing
  • AC analogue output enables connection to an analyser or recorder
  • Large, backlit LCD display allows use regardless of lighting conditions
  • Stores 99 readings on devices in-built memory
  • Included 2GB SD card boasts huge 20million record memory
  • Datalogging function date/time stamps records for easy reference
  • MIN/MAX/Data hold and auto power off functions
  • Built-in PC interface
What's In The Box?
  • Extech SDL600 Sound Level Meter/Datalogger
  • 6 x AA Batteries
  • 2GB SD Card
  • Wind Screen
  • Hard Carrying Case
More Information
Specification
  • Range: 30 to 130dB (3 ranges)
  • Basic Accuracy: ±1.4dB
  • Frequency Range: 31.5 to 8000Hz
  • Weighting: A and C
  • Response Time: Fast (125ms) / Slow (1s)
  • Datalogging: 20M data records using a 2G SD card
  • Analogue Output: AC
  • PC Interface: USB
  • Dimensions: 9.8 x 2.9 x 1.9" (250 x 73 x 48mm)
  • Weight: 18.3oz (520g)
Icon Filename Type Size Download
pdf Extech SDL600 Datasheet pdf 204.5 KB Download
