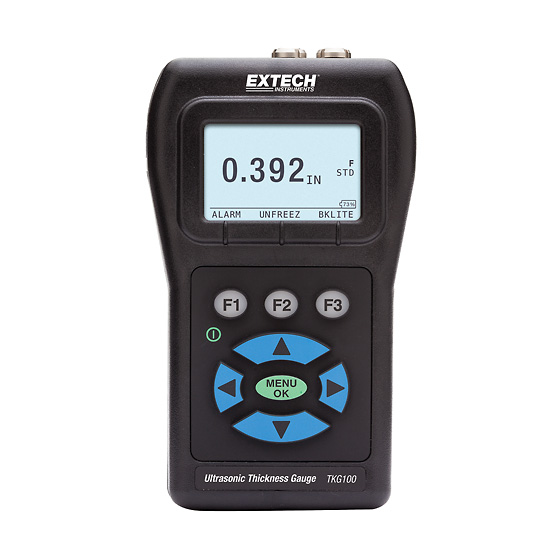

Extech TKG100 Ultrasonic Thickness Gauge

  • Non-destructive thickness measurement up to 0.040" to 20" of steel with 5MHz probe
  • Compact, handheld and in rugged IP54 high-impact housing
  • Sunlight readable dot-matrix display with backlight
More Info
Typically ships in 7-10 working days

Extech TKG100 Ultrasonic Thickness Gauge

Ideal for non-destructive thickness measurement of steel structures such as boiler tubes, containers, pipes, ship hulls and more, the Extech TKG100 Ultrasonic Thickness Gauge is a compact, handheld instrument suitable for a range of situations.

Using ultrasonic technology to calculate the thickness of materials, the TKG100 offers a wide measurement range with its 5MHz probe (0.040" to 20" of steel), or can utilise an optional 10MHz probe (0.020” to 20").

Suitable for use in any environment thanks to its rugged IP54 high-impact housing, long battery life and backlit sunlight-readable dot-matrix display, the TKG100 boasts a variety of user-friendly features, including multiple transducer options for high temperature and difficult to measure materials.

The Extech TKG100 Ultrasonic Thickness Gauge also offers a fast minimum feature to capture minimum thickness, in addition to hold/freeze functions and min/max capture modes.

Packaged complete with its 5MHz Transducer, a 2oz bottle of couplant, batteries and a hard carrying case, the TKG100 is the perfect entry-level thickness tester.

What's In The Box?

  • Extech TKG100 Ultrasonic Thickness Gauge
  • 2oz Bottle of couplant
  • 2 x AA batteries
  • 5MHz Transducer
  • Hard Carrying Case
  • Thickness Range (in Steel): 5MHz probe 0.040 to 20" (1.0 to 508mm); Optional 10MHz probe 0.020 to 20" (0.50 to 508mm)
  • Material velocity calibration range: 0.200 to 0.7362 in/μS (0.508 to 18.699mm/μS)
  • Languages: English, French, Spanish, Italian, Czech, German, Portuguese, Slovak, Finnish, and Hungarian
  • Units: Inches/Millimeters/Microseconds
  • Battery Life: Up to 50 hrs (20hrs w/backlighting)
