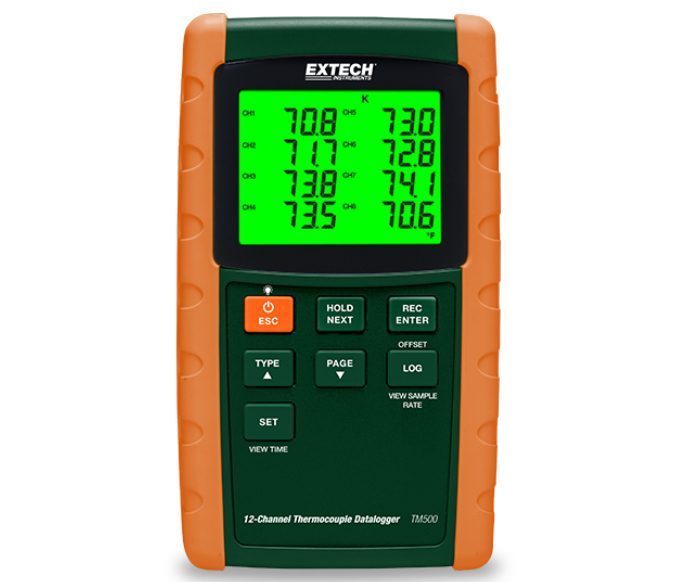

Extech TM500 12-Channel Datalogging Thermometer

Extech Instruments
SKU: EXTETM500
  • Measurement and temperature logging from up to 12 different measurement points simultaneously
  • User programmable sampling rate of 1 to 3600 seconds
  • 12 general purpose Type K bead wire temperature probes, SD card, and hard carrying case
More Info
Typically ships in 5-7 working days

Extech TM500 12-Channel Datalogging Thermometer

The Extech TM500 12-Channel Datalogging Thermometer allows for measurement and temperature logging from up to 12 different measurement points simultaneously. The TM500 comes equipped with 12 general purpose Type K bead wire temperature probes but is compatible with six different thermocouple type probes (J, K, E, T, R and S). The 12 channel TM500 simultaneously displays channels one to eight or channels nine to twelve on the backlit LCD 3.23 x 2.40" screen.

The TM500 allows for a user programmable sampling rate of 1 to 3600 seconds with up to 99 readings manually stored on the device. The datalogging capabilities for measurements with date and time stamps saved on to an SD card for further analysis of data on a PC. SD cards can be updated up to 16G for further storage.

The Extech TM500 features a number of further functions such as Min/Max measurements for later recall, offset adjustment used for zero function or to make relative measurements, data hold and Auto power off after ten minutes of inactivity with this feature able to be disabled by the user.

The Extech TM500 features an over range and low battery indicator and measurement units in both ºC and ºF and is protected by a hard carry case for transportation and storage. The unit is powered by eight x AA 1.5V batteries but can be powered by an optional 9V AC adaptor.

The TM500 is able to perform a number of temperature measurement applications (dependent on the Thermocouple type and range) including heat distribution in thermal chambers, quality control temperature monitoring, HVAC and refrigeration, cooling systems, core temperatures in ovens and automotive design.

Key Features

  • Measures temperature from up to 12 measurement points simultaneously
  • Compatible with six types of Thermocouple probes (J, K, E, T, R and S)
  • Backlit LCD 3.23 x 2.40" screen
  • User programmable sampling rate of 1 to 3600 seconds
  • 99 readings manually stored on the device
  • 12 channel TM500 simultaneously displays channels CH1 to CH8 or CH9 to CH12
  • Auto power off after ten minutes of inactivity
  • Datalogging capabilities for measurements with date and time stamps saved on to an SD card
  • Min/Max measurements for later recall
  • Auto power off after ten minutes of inactivity
  • Powered by eight x AA 1.5V batteries
  • Offset adjustment used for zero function or to make relative measurements
  • Hard carry case included

What's In The Box?

  • Extech TM500 12-Channel Datalogging Thermometer
  • 8 x AA batteries
  • 12 x Type K Thermocouple Type K Bead Wire
  • SD card
  • Hard carry case
Specification

General

  • Memory: Data readings stored on SD card
  • Temperature (Type E) Basic Accuracy: -100ºC to 900ºC (-148ºF to 1652ºF)
  • Temperature (Type E) Max Resolution: ±0.4% of reading (+1.8 F/+1°C)
  • Temperature (Type J) 0.1º/1º
  • Temperature (Type J) Basic Accuarcy: -100ºC to 1150ºC (-148ºF to 2102ºF)
  • Temperature (Type J) Max Resolution: ±0.4% of reading (+1.8°F/+1°C)
  • Temperature (Type K) Basic Accuracy: 0.1º/1º
  • Temperature (Type K) Max Resolution: -100ºC to 1300ºC (-148ºF to 2372
  • Temperature (Type N): ±0.4% of reading (+1.8°F/+1°C)
  • Temperature (Type N) Basic Accuracy: 0.1º/1º
  • Temperature (Type N) Max Resolution: 0ºC to 1700ºC (32ºF to 3092ºF)
  • Temperature (Type S): ±0.5% of reading (+5°F/+3°C):
  • Temperature (Type S) Basic Accuracy: 0.1º/1º
  • Temperature (Type S) Max Resolution: 0 to 1500ºC (32ºF to 2732ºF)
  • Temperature (Type T): ±0.5% of reading (+5°F/+3°C)
  • Temperature (Type T) Basic Accuracy: 0.1º/1º
  • Temperature (Type T) Max Resolution: -100ºC to 400ºC (-148ºF to 752ºF)
  • Temperature (IR): ±0.4% of reading (+1.8°F/+1°C)
  • Temperature (Type K): 0.1º/1º

Additional Details

  • Certifications: CE
  • Dimensions: 8.9 × 4.9 × 2.5" (225 × 125 × 64mm)
  • Power: 8 x AA (1.5V) batteries
  • Warranty: 2 Years
  • Weight: 944g (2.1lbs)
Label Type Size Download
pdf Extech TM500 12-Channel Datalogging Thermometer pdf 340.8 KB Download
