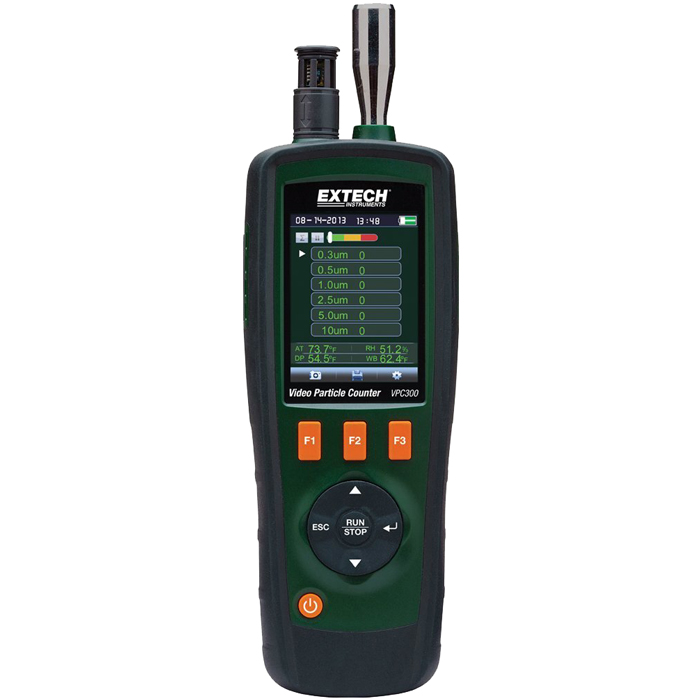

Extech VPC300 Video Particle Counter with Built-in Camera

Extech Instruments
SKU: EXTEVPC300
  • Built-in 320x240-pixel camera for video and photo capture
  • Simultaneously measure 6 channels of particle sizes, air temperature, humidity and more
  • MicroSD memory format
More Info
Typically ships in 7-10 working days

Extech VPC300 Video Particle Counter with Built-in Camera

The Extech VPC300 Video Particle Counter is a portable solution for measuring airborne particulates in prone environments, such as diesel vehicle service depots, agro-industrial premises and power generation facilities. Featuring a built-in camera, digital video and photographs can be captured and stored upon an internal MicroSD memory card.

The VPC300 can simultaneously measure up to 6 channels (0.3, 0.5, 1.0, 2.5, 5.0, 10μm) of particle sizes as well as air temperature, humidity, dew point and wet bulb temperature measurements. Up to 5000 records can be stored with date and time stamps to assist data analysis.

In addition, the video particulate counter features a tripod mount for continuous recordings and a slot for MicroSD cards in order to extend video length and data records. The VPC300 boasts an auto power off feature for maximum battery operation and a Mini-USB port for connecting to computers and laptops.

Key Feature

  • Simultaneously measure and display 6 channels of particle sizes (down to 0.3 µm), Air Temperature, Humidity, Dew Point and Wet Bulb
  • 2.8" TFT Colour LCD display
  • Built-in 320x240-pixel camera takes videos (3GP) and photo images (JPEG) and records them in internal 74MB memory
  • Store 5000 records (date, time, counts, humidity, temperature, sample volumes, and location label) and 20 minutes of video
  • Selectable sample time, count data, and programmable delay
  • Max, Min, DIF, AVG record, Date/time setup controls, Auto Power Off
  • Mini-USB port connection
  • Complete with NIST-traceable calibration certificate, Universal AC Adapter/Charger with multiple plugs, USB cable, PC software, tripod, filter, 7.4V NiMH battery

What's In The Box?

  • NIST-Traceable calibration certificate
  • Universal AC Adaptor/Charger with multiple plugs
  • USB Cable
  • PC Software
  • Tripod
  • Filter
  • 7.4V NiMH battery
  • Hard case
Specification
  • Channel of Particle Sizes – 0.3, 0.5, 1.0, 2.5, 5.0, 10μm
  • Flow Rate – 0.1ft3 (2.83L/min) controlled by internal pump
  • Count Modes – Cumulative, Differential, Concentration
  • Counting Efficiency – 50% @ 0.3µm; 100% for particles >0.45
  • Coincidence Loss – 5% @ 2,000,000 particles per ft3
  • Air Temperature - -14 to 140°F (-25 to 60°C); Accuracy: ±2°F/1°C
  • Relative Humidity – 0 to 100%RH; Accuracy ±3%RH (40% to 60%RH)
  • Dew Point / Wet Bulb – 32 to 122°F (0 to 50°C)
  • Dimensions / Weight – 9.3 x 3 x 2.2” (240 x 75 x 57mm)/ 1.26Ibs (570g)
Label Type Size Download
pdf VPC300 pdf 380.2 KB Download
