FLIR A50 Image Streaming Thermal Camera (Choice Of Lens)
- Features a thermal resolution of 464 × 348 and a 17 µm detector pitch
- Available in three lens configurations: 29°, 51°, and 95°
- GigE Vision and GenICam compliant
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
FLIR A50 Image Streaming Thermal Camera (Choice of Lens)
The FLIR A50 Image Streaming Thermal Camera is a compact and fixed-mount solution that provides live radiometric video streaming for accurate, real-time temperature measurement and visualisation across a wide range of industrial, research, and automation environments. It is especially useful for engineers and technicians, as it helps them detect faults early, optimise processes, and avoid costly downtime. The A50 offers high sensitivity, rugged construction and simple integration at a lower cost, making it ideal for many standard automation, process-monitoring or condition-based-maintenance installations where ultra-fine detail is not required.
Thermal Imaging Performance
At its core, the A50 features a 464 × 348-pixel infrared detector with a 17 µm pitch that is powered by an uncooled microbolometer and an f/1.4 aperture. It has a high thermal sensitivity of NETD < 35 mK, which allows for sharp and detailed thermal imagery as well as the detection of even the smallest temperature changes. The A50 offers a wide temperature measurement range from –20°C to +1000°C, which can be extended for high-temperature industrial processes. Its accuracy of ±2°C or ±2% gives users consistent, repeatable results.
Connectivity and Software Integration
The A50 supports radiometric streaming, which is enabled through GigE Vision and GenICam. This means that every frame transmitted contains full temperature data for each pixel, allowing for advanced analysis and precise process control. Its high frame rate of up to 30 Hz ensures smooth, real-time video even in fast-changing conditions, while the Power over Ethernet (PoE) simplifies installation and operation by combining data and power into a single cable.

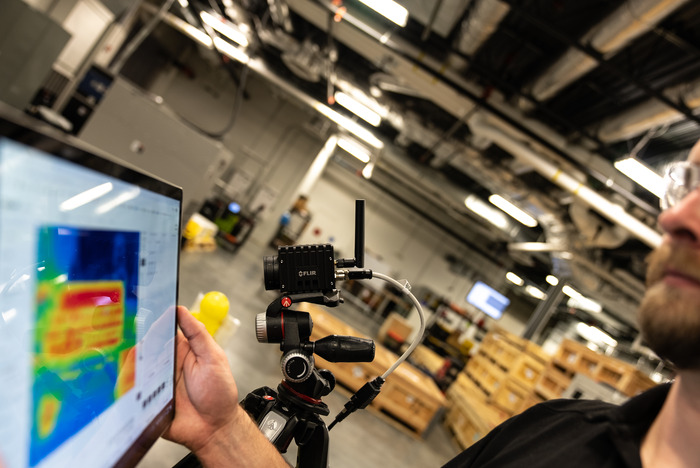

The A50 works seamlessly with FLIR Research Studio and FLIR Atlas SDK, along with a wide range of third-party platforms for data acquisition, automation, and analysis. This allows users to remotely control and configure the camera, define measurement regions, set alarm thresholds, and log data for trend analysis or reporting.
The A50, with its open SDK and standard communication protocols, can be embedded into existing control systems, PLCs, or custom-built applications. It also supports digital I/O for triggering, synchronisation, and external alarm control.
Lens Configurations
The A50 is available in three lens configurations: 29°, 51°, and 95°. These options allow users to choose the best field of view for their specific inspection or research needs. Each lens is factory-calibrated to ensure consistent thermal accuracy and image quality across a range of distances and applications.
29° Image Streaming Camera (part number: 89829-0401)
- Field of View: 29° × 22°
- Focal Length: 14.3 mm
- Minimum Focus Distance: 0.25 m
- Visual Camera Resolution: 1280 × 960
- Ideal for standard R&D, electronics testing, and precise thermal measurements where detailed imagery is essential.
51° Image Streaming Camera (part number: 89851-0401)
- Field of View: 51° × 39°
- Focal Length: 8.2 mm
- Minimum Focus Distance: 0.2 m
- Visual Camera Resolution: 1280 × 960
- Best suited for applications requiring a wider perspective, such as process monitoring or component assembly validation.
95° Image Streaming Camera (part number: 89895-0401)
- Field of View: 95° × 75°
- Focal Length: 4.2 mm
- Minimum Focus Distance: 0.1 m
- Visual Camera Resolution: 1280 × 960
- Designed for large-scale inspections and thermal behaviour analysis, providing maximum coverage and efficiency.
Environmental Performance
The A50 features a rugged aluminium housing with a corrosion-resistant finish that meets ISO 12944 C4 and EN60068-2-11 standards. The housing is IP66-rated, which means it offers excellent protection against dust, moisture, and vibration, making it suitable for industrial and outdoor use. Its compact size and lightweight design make it easy to install, and its operating temperature range of –20 to 50°C (with cooling plates) and –20 to 35°C (without) ensures that it performs consistently in demanding environments.
Comparing Flir A50 & A70 Image Streaming Thermal Camera
|
|
A50 |
A70 |
|
IR Resolution |
464 × 348 pixels |
640 × 480 pixels |
|
Detector Pitch |
17 µm |
12 µm |
|
Thermal Sensitivity (NETD) |
< 35 mK |
|
|
Temperature Range |
–20 °C to +175 °C 175 to 1000°C |
–20 to 175°C –20 °C to +250 °C 175 to 1000°C |
|
Field of View Options |
29° × 22°, 51° × 39°, 95° × 74° |
|
|
Focal Length per Lens |
29°: 14.3 mm; 51°: 8.2 mm; 95°: 4.1 mm |
|
|
Minimum Focus Distance |
29°: 0.25 m; 51°: 0.20 m; 95°: 0.10 m |
|
|
Frame Rate |
30 Hz |
|
|
Streaming / Protocol |
GigE Vision, GenICam, radiometric streaming |
|
|
Ruggedness / Housing |
Fixed-mount, IP66 rated, industrial grade |
|
Key Features
- IR resolution of 464 × 348 pixels
- Uncooled microbolometer detector
- 17 µm pixel pitch
- Spectral range of 7.5 to 14 µm
- 30 Hz frame rate
- Accuracy: ±2°C or ±2% of reading
- Varied temperature range options (extendable depending on configuration)
- Available in three lens options: 29°, 51 and 95°
- Fixed focus (factory-set per lens)
- Compatible with Radiometric streaming, GigE Vision, GenICam image formats
- GigE Vision, GenICam streaming protocols
- Power supply: Power over Ethernet (PoE)
- Communication interfaces: Ethernet, Digital I/O
- Mounting: M4 mounting holes, tripod and bracket options
- IP66 protection rating
- Aluminium housing
- Operating temperature range of –15°C to +50°C
- Storage temperature range of –40°C to +70°C
- Software compatibility: FLIR Research Studio, FLIR Atlas SDK, third-party platforms
- Data format support: FLIR radiometric image format (FFF, SEQ, etc.)
- Digital I/O: Configurable inputs/outputs for triggering and alarms
Specialists In Thermal Imaging Solutions
Watch the video above to see how we can help you find the right thermal imaging solution & get in touch on 0113 248 9966 or sales@test-meter.co.uk.
As the UK's leading thermal imaging solutions provider, we have a wide range of knowledge and experience. From common electrical and industrial mechanical inspections to renewable energy, building inspections and much more, our thermography-trained team ensures your enquiry is looked after from start to finish.
Find the best solution for your application and budget through:
- Onsite-demo/remote consultations on request
- 'Try Before You Buy' and hire options available
- After-sales care that provides ongoing calibration and servicing
- Finding the optimal software package, ensuring the correct reporting and data functionality for your needs
To help you find the right thermal imaging solution, please get in touch on 0113 248 9966 or sales@test-meter.co.uk
|
For detailed specifications on the FLIR A50, please refer to the datasheet below. |
| Label | Type | Size | Download | |
|---|---|---|---|---|
|
FLIR A50/A70 Standard & Advanced Datasheet | 712.6 KB | Download |
-
-
-
-
-
-
-
-
-
-
-
-
-
-
FLIR Option, Visual camera including MSX A50/A70 SKU: FLIRT300295£440.00 (ex VAT)£528.00 (inc VAT)
