FLIR CM65 True RMS 600A Solar Clamp Meter

FLIR
SKU: FLIRCM65
  • Purpose-built for solar panel installation, maintenance & repair
  • Includes industry-standard quick-connect MC4 test leads
  • Share data wirelessly via METERLiNK and FLIR Tools mobile app
More Info
In Stock - Available Next Day

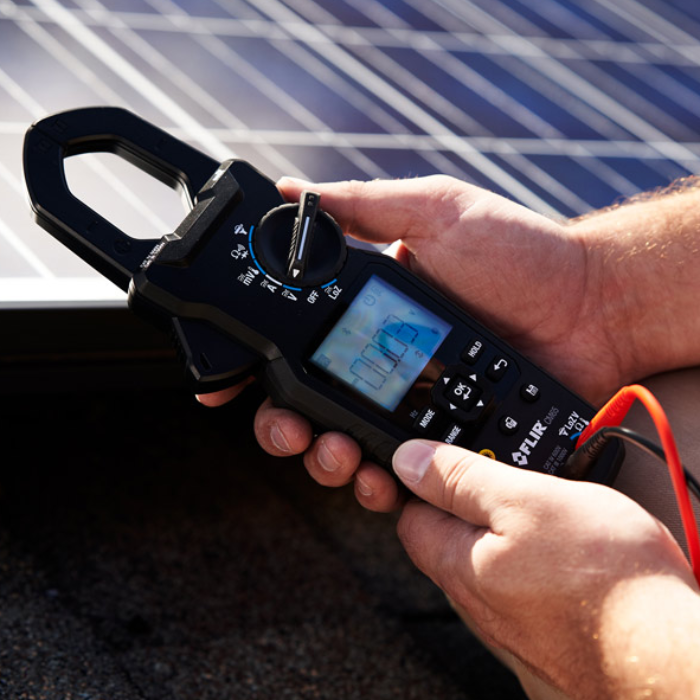

FLIR CM65 True RMS 600A Solar Clamp Meter

The FLIR CM65 True RMS 600A Solar Clamp Meter is a rugged handheld tool designed to accelerate and simplify photovoltaic (PV) panel testing. Built for solar repair, installers can use this device for installation, maintenance and troubleshooting on solar panel strings and inverters at new or pre-existing sites. With quick-connect solar industry standard MC4 connectors, the accuracy and safety of DC voltage measurements are improved, while the time required to pinpoint trouble is greatly reduced. An ergonomic design, generous jaw width of 30mm and features such as True RMS, LoZ & Millivolt modes make the CM65 a go-to tool for accomplishing tasks correctly and quickly.

The non-invasive AC current and voltage readings taken by the FLIR CM65 boast ensured accuracy thanks to the incorporated True RMS function. Captured AC and DC current measurements both have a 1.5% accuracy and even the smallest calibration voltage fluctuations can be detected with the Clamp's Millivolt function. The included MC4 test leads reduce the time required for live/dead testing on DC currents and the low impedance mode (LoZ) eliminates errors caused as a result of ghost voltages. With the CM65 Solar Clamp Meter measure resistance, frequency and temperature whilst troubleshooting string connections/components with a continuity test mode.

Once AC output and inverter efficiency are validated, the FLIR CM65 displays them on a backlit 6000 count display and automatically logs them within an 8GB internal memory. Use this to identify trends and anomalies, with even further insight gained by the Data Hold, Min/Max readings and relative mode function which can zero the meter. Share this data wirelessly with the incorporated METERLiNK and monitor continuously with a live feed to a smartphone running the FLIR Tools mobile app. Whatever the job requires, for faster & safer results while validating, testing and documenting readings the fully stocked FLIR CM65 Clamp Meter is the ideal tool for PV installers.

Key Features

  • 600A Solar Clamp Meter built for safety
  • Designed for PV panel repair, installation & troubleshooting
  • MC4 connectors included for live/dead testing
  • 30mm jaw width
  • Includes True RMS for increased accuracy
  • LoZ mode discards results caused by ghost voltages
  • Millivolt mode detects the smallest calibration fluctuations
  • AC & DC current readings at 1.5% accuracy
  • Measure frequency, temperature & resistance
  • Incorporated continuity test mode
  • Backlit 6000 count display
  • Internal 8GB internal memory
  • Data Hold, Min/Max & relative mode features
  • Connect via METERLiNK to smartphones with the FLIR Tools mobile app
  • Ergonomic design
  • Auto-off after 10 minutes
  • IP40 rating

FLIR part number: CM65

What's In The Box?

  • FLIR CM65 True RMS 600A Solar Clamp Meter
  • Test lead set
  • MC4 test leads
  • Quick start guide
  • Manual
  • Soft carrying pouch
  • Type-K thermocouple
Specification

Basic Measurement Capabilities

  • Safety category rating:
    - CAT IV-600 V
    - CAT III-1000 V
  • True RMS: Yes

Features

  • Data hold: Yes
  • Min/Max: Yes
  • Relative DC zero: Yes
  • Loz mode (auto range): Yes
  • VFD: Yes
  • Jaw size: 30 mm (1.1 in) max

Measurement & Analysis - Range & Resolution / Basic Accuracy

  • AC current:
    60.00, 600.0 A
    ±1.5%
  • DC current:
    60.00, 600.0 A
    ±1.5%
  • AC voltage:
    60.00, 600.0, 1000 V
    ±0.7%
  • AC voltage (digital low pass filter - VFD):
    600.0, 1000 V
    ±1%
  • LoZ mode AC voltage:
    600.0, 1000 V
    ±2.0%
  • AC voltage (mV mode):
    60.00, 600.0 mV
    ±1.0%
  • DC voltage:
    60.00, 600.0, 1000 V
    ±1%
  • LoZ mode DC voltage:
    60.00, 600.0, 1000 V
    ±2.0%
  • DCV (mV mode):
    60.00, 600.0 mV
    ±1.0%
  • Frequency:
    50.00 Hz to 400.0 Hz (ACA) / ±1%
    10.00 Hz to 400.0 Hz (ACV) / ±1%
    10.00 Hz to 500.0 Hz (ACV mV) / ±1%
  • Resistance:
    600.0 k, 6.000 kΩ
    ±1.0%
  • Diode test:
    3.000 V
    ±0.9%
  • Temperature:
    -40°C to 400°C (-40°F to 752°F)
    ±1%
  • Continuity: < 30 Ω, 2 kHz buzzer

Wireless Connectivity

  • METERLiNK: Yes

Display

  • Screen: 3-5/6 digits 6000 counts
  • Backlight: Yes
  • Auto power off: 10 minutes (default)
  • Sampling rate: 5 readings / second
  • Overload indication: “OL” or “-OL”

Additional features

  • Data Logging and storage:
    - Automatically log readings every 10 seconds
    - Data log files can be transferred via USB port
  • Memory: 8 GB internal memory
  • Operating temperature: 0°C to 60°C (32°F to 140°F)
  • Operating relative humidity: Maximum relative humidity 80% for temperature up to 31°C (88°F) decreasing linearly to 50% relative humidity at 50°C (122°F)
  • Storage temperature: -30°C to 60°C (-22°F to 140°F) <80% RH (with battery removed)
  • Drop Test: 1 m (3.3 ft)
  • IP rating: IP40
  • Battery type: 3× AA
  • Size (L × W × H): 251 × 80 × 40 mm (9.8 × 3.1 × 1.6 in)
  • Weight: 300 g (10.6 oz)
