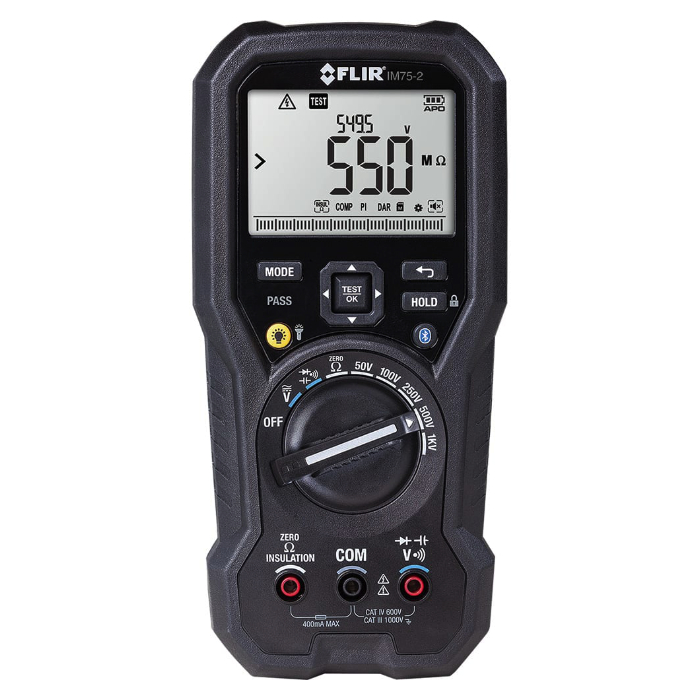

FLIR IM75-2 Insulation Tester and Digital Multimeter with METERLiNK®

FLIR
SKU: FLIRIM752
  • True-RMS voltage/current, earth bond resistance, continuity, diode, capacitance and insulation resistance testing
  • Low impedance mode with advanced variable frequency drive filtering
  • Compatible with FLIR METERLiNK® App<
More Info
Typically ships in 3-5 working days

FLIR IM75-2 Insulation Tester and Digital Multimeter with METERLiNK®

The FLIR IM75-2 Insulation Tester and Digital Multimeter with METERLiNK® includes a number of tests that allow for professional installation, troubleshooting and maintenance whilst ensuring safety standards in offering protection from potentially hazardous environments. With the IM75-2, users are able to perform a number of tests including insulation voltage testing unto 1kV , insulation resistance from 4MΩ to 20 GΩ, advanced variable frequency drive (VFD) filtering and dual display shows voltage and frequency at the same time, True RMS DMM voltage measurements and a low impedance (LoZ) mode.

The FLIR IM75-2 is constructed to make electrical problems easier to solved the LED work lights allow for use even in difficult lighting conditions. The large back lit display provides a 4000 count with bar graph display with a multi colour LED indicator with compare mode that makes pass/fail decisions visible and easy to make. The internal memory provides storage for 99 location and a measurement rate of 2 samples per second and a display rate of 2 times per second.

FLIR METERLiNK® App

The FLIR IM75-2 is compatible with the FLIR METERLiNK® App which allows the user to monitor a number of environmental and electrical conditions simultaneously. Connect up to seven compatible devices at once. METERLiNK®, allows users to capture images safely and monitor hazardous areas remotely and in real time. Users can capture readings, create reports that can be easily shared. Measurement comparisons can be performed over time with custom alarm thresholds to provide additional assurance of operating ranges while performing testing procedures. Bluetooth capability allows for measurements to be collected from up to 10m away.

The FLIR IM75-2 is battery powered by 6 x AAA batteries and can provide power for up to 2600 earth resistance tests or 1100 insulation resistance tests. Auto power off in user defined programmable range further enhances the battery life. The meter is IP54 rated offering protection from dust and water and has been drop tested up to 3m. User safety is ensured thanks to the CAT IV 600V and CAT III 1000V safety rating, with over-current protection (fuse) 440mA/1000V, ceramic fast blow fuse with a minimum interrupt rating of 10kA.

Key Features

  • Installation voltage testing up to 1kV
  • Insulation resistance from 4MΩ to 20 GΩ
  • Advanced variable frequency drive (VFD)
  • Earth bond resistance
  • Filtering and dual display shows voltage and frequency at the same time
  • True RMS DMM voltage measurements
  • LoZ mode
  • Diode, continuity and capacitance testing
  • FLIR METERLiNK® App compatibility
  • LED work light for dark work environments
  • Battery powered
  • CAT IV 600V and CAT III 1000V safety rated
  • Back lit LED display
  • IP54 rated and 3m drop tested

What's In The Box?

  • FLIR IM75-2 Insulation Tester and Digital Multimeter with METERLiNK®
  • Premium test probes with clips
  • Quick start guide
  • 6 x AAA batteries
  • Warranty card
Specification
  • Measurement rate: 2 samples per second
  • Display rate: 2 times per second
  • Input impedance: 10 MΩ V DC/V AC <100 pF
  • AC Voltage bandwidth: 50 Hz to 500 Hz
  • AC Voltage:
    1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits)
    61 Hz to 500 Hz ± (2.0% + 5 digits)
  • DC Voltage: 1000.0 V ± (0.1% + 5 digits)
  • VFD AC Voltage:
    1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits)
    61 Hz to 400 Hz, ± (5.0% + 5 digits)
  • Earth Bond Resistance:
    40.00 Ω ± (1.5% + 5 digits)
    400.0 Ω ± (1.5% + 3 digits)
    4000 Ω ± (1.5% + 3 digits)
    40.00 kΩ ± (1.5% + 3 digits)
  • Continuity: 400.0 Ω ± (0.5% + 2 digits)
  • Diode: 2.000 V ± (1.5% + 2 digits)
  • Capacitance:
    1000 µF ± (1.2% + 2 digits)
    10.00 mF ± (1.2% + 20 digits)
  • Frequency (ACV):
    400.0 Hz ± 5 digits
    4.000 kHz ± 5 digits
    40.00 kHz ± 5 digits
  • Insulation resistance:
    4.000 MΩ ± (1.5% + 5 digits)
    40.00 MΩ ± (1.5% + 5 digits)
    400.0 MΩ ± (3.0% + 5 digits)
    4000 MΩ ± (3.0% + 5 digits)
    4.1 G to 20.0 GΩ ± (10.0% + 3 digits)
  • Insulation Test Voltage:
    50 V for max. 50.0 MΩ
    100 V for max 100.0 MΩ
    250 V for max. 250.0 MΩ
    500 V for max. 500.0 MΩ
    1000 V for max.20 GΩ
  • VFD AC Voltage:
    1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits)
    61 Hz to 400 Hz, ± (5.0% + 5 digits)
  • Polarisation index (PI): 10 min in test/1 min in test
  • Dielectric absorption ratio (DAR): 1 min in test/30s in test

Meter Data

  • Category Rating: CAT IV 600V, CAT III 1000V
  • Memory: 99 storage locations
  • Warranty: https://www.flir.com/testwarranty
  • Over current protection fuse: 440 mA/1000 V, ceramic fast-blow fuse with a minimum interrupt rating of 10 kA

Certifications

  • Agency approvals: FCC Class B, CE, UL, UKCA, RCM

Power system

  • Battery type: 6 x 1.5V AAA alkaline batteries
  • Battery Life: Earth bond resistance measurements: 2600 with new alkaline batteries (standard tests of 1 Ω with a duty cycle of 5 seconds on and 25 seconds off). Insulation resistance: 1100 insulation resistance tests with new alkaline batteries (standard tests of 1 Ω with a duty cycle of 5 seconds on and 25 seconds off). This does not include Bluetooth or backlight use.
  • Auto power off: User programmable: up to 30 minutes in 1 minute increments, with audible pre-alert (20 seconds)

Environmental data

  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
  • Operating Humidity : Maximum 80% up to 35°C (95°F) decreasing linearly to 60% at 45°C (113°F) )
  • Storage temperature and Humidity : -20°C to 60°C (-4°F to 140°F), 80% maximum)
  • Drop test: 3mn (9.8ft)
  • IP Rating: IP54 dust protected and splash resistant
  • Operating Altitude: 2000m (6561ft)
  • Pollution degree: 2
  • EMC: EN 61326-1
  • Shock vibration: Per MIL-PRF-28800 for a Class 2 instrument

Meter Physical Data

  • Display: 4000 count with bar graph
  • Controls: 9-position rotary switch, 4-way selector pad with center OK/ TEST button, LED (pass (green), fail (red)), dedicated function buttons (5: mode, cancel, hold/lock, Bluetooth, backlight)
  • Backlight: White LEDs
  • Work lights: Two white LEDs
  • Weight: 605g (1.33lb) including batteries
  • Dimensions (H x W x L): 85mm x 207mm x 52mm (3,7in x 8.1in x 2in)
  • Material: PC-ABS, TPE
Label Type Size Download
pdf FLIR IM75-2 Insulation Tester and Digital Multimeter with METERLiNK® Datasheet pdf 161.5 KB Download
