FLIR LS-X/R Tactical Handheld Thermal Monocular

FLIR
SKU: FLIRLSXR-CONF
  • Designed for law enforcement officers in external environments
  • Advanced image processing & exceptional image quality
  • Simple, one-handed operation usable even with gloves
More Info

Dual-Use Item: Export authorisation may be required to move this item outside of the UK (Council Regulation (EC) No.428/2009)

FLIR LS-X/R Tactical Handheld Thermal Monocular

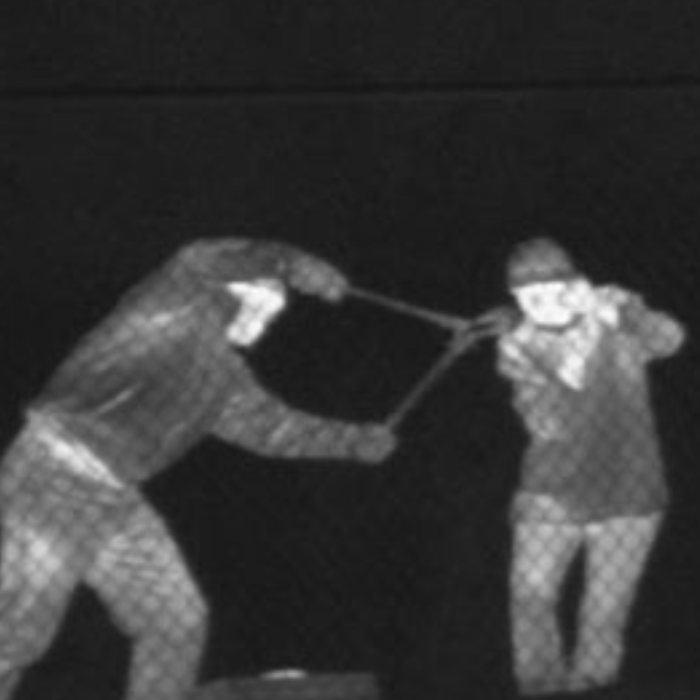

The FLIR LS-X/R Tactical Handheld Thermal Monocular series is built to aid those who serve and protect. With law enforcement personnel in mind, these easy-to-use imagers provide officers with a tactical advantage when looking for evidence, pursuing suspects or conducting search & rescue operations. Generating images based on infrared radiation, the LS-X and LSXR handheld optics can detect humans, animals and objects otherwise invisible to the naked eye. Operable in smoke, dust and light fog, no suspect can hide their heat signature from this portable and highly compact instrument. Where traditional night vision fails, this series of tactical monoculars is considerably more effective, even when it comes to distinguishing objects through light foliage and camouflage. Don't give away your position early or fail to spot that vital piece of evidence with the FLIR LS-X/R series.

With an internal high-resolution thermal core, the FLIR LS-X/R Tactical Monocular offers an improved eyepiece with high resolution 640 X 480 LCD display. Featuring live video output, a red laser pointer and extended zooming capabilities with up to 5x magnification, these models also utilise InstAlert hot object highlighting for enhanced detection. Portable and rugged, the intuitive control scheme makes single-hand usage possible even whilst wearing gloves. The relatively small size of the LS-X/R monoculars means they can fit into pockets or packs without requiring lots of space, ideal for a lightweight outdoor kit. With simple operation and superior thermal vision, this series is a safety-rated IP-67 and submersible.

Multiple Models Available

The FLIR LS-X/R Tactical Handheld Thermal Monocular series comes with varying lens options and refresh rates. Choose from the dropdown menu above which model suits your needs best.

  LS-X LS-XR
Field of View (FOV) 17° × 13° NTSC 18° × 14° NTSC
Detector Type 336 × 256 VOx Microbolometer 640 x 512 VOx Microbolometer
Zoom 2X & 4X 2X, 4X & 8X
Video Refresh Rate <9Hz NTSC or 60 Hz <9Hz NTSC or 30 Hz
Safety Rating IP-67, Submersible
Built-in Display 640 X 480 LCD Display
Thermal Sensitivity <50 mK @ f/1.0
Laser Pointer ✔
Range Performance
Detect Man (1.8 m × 0.5 m) 570 meters 1140 meters
Detect Small Vessel (2.3 m × 2.3 m) 1550 meters 3000 meters

Key Features

  • Professional quality thermal imaging monocular
  • Superior thermal surveillance for law enforcement
  • Choose between four options
  • Distinguish objects of interest even in pitch-black conditions
  • 640 X 480 LCD display
  • Continuous digital zoom
  • Powered by Boson thermal core
  • 9 to 60Hz refresh rate for sharp thermal images
  • Live video output through USB
  • White Hot, Black Hot & InstAlert image polarity
  • IP67-rated, submersible black colour housing
  • Features red laser pointer
  • Battery-powered with up to 5 hours lifespan

What's In The Box?

  • Choice of FLIR LSX/R Tactical Handheld Thermal Monocular
  • USB Power Adapter/Charger
  • Wrist strap
  • Custom Video out cable
  • USB Cable
  • Quick Start Guide
  • Molle bag
Specification

General

  • Black Hot & White Hot: Black Hot / White Hot / InstAlert
  • Built-in Display: 640 × 480 LCD Display
  • Power Button: On / Off
  • Zoom Button
    LSX1960: 2× & 4×
    LSX1909: 2× & 4×
    LSXR3530: 2X, 4X & 8X
    LSXR3509: 2X, 4X & 8X

Overview

  • Detector Type
    LSX1960: 336 x 256 VOx Microbolometer
    LSX1909: 336 x 256 VOx Microbolometer
    LSXR3530: 640 x 512 VOx Microbolometer
    LSXR3509: 640 x 512 VOx Microbolometer
  • Dimensions: 6.70" x 2.31" x 2.44"
  • Laser Pointer: Red Laser Pointer
  • Warranty: 2 years standard, 3 years with product registration
  • Waveband: 7.5 - 13.5 µm
  • Weight: 12 oz (340 g)

Connections & Communications

  • Video Output: NTSC composite video Thru USB port via Custom USB to RCA cable. Output switchable to PAL via user GUI

Environmental

  • Drop Test Rating: 1 m
  • Operating Temperature: -4°F to 122°F (-20°C to 50°C); Laser = 4°F to 122°F (-10°C to 50°C)
  • Rating: IP-67, Submersible
  • Storage Temperature: -40°F to 140°F (-40°C to 60°C)

Imaging & Optical

  • Brightness: Adjusts Display Brightness Setting
  • Field of view (FOV)
    LSX1960: 17° x 13° NTSC
    LSX1909: 17° x 13° NTSC
    LSXR3530: 18° x 14° NTSC
    LSXR3509: 18° x 14° NTSC
  • Image Polarity: White Hot / Black Hot / InstAlert; Selectable
  • Image Processing: FLIR Proprietary Digital Detail Enhancement
  • On-Screen Symbology: Standard
  • Video Refresh Rate
    LSX1960: < 9Hz NTSC or 60 Hz
    LSX1909: 7.5 Hz
    LSXR3530: < 9Hz NTSC or 30 Hz
    LSXR3509: 7.5 Hz

Measurement & Analysis

  • Thermal Sensitivity: < 50 mK @ f/1.0

Meter Data

  • Polarity: White Hot / Black Hot / InstAlert; Selectable

Power

  • Battery Life (Operating): > 5 Hours
  • Battery Type: Internal Li-Ion Cell
  • Start Up Time: < 1.5 seconds

Range Performance

  • Detect Man (1.8m x 0.5m)
    LSX1960: 570 m
    LSX1909: 570 m
    LSXR3530: 1,140 m
    LSXR3509: 1,140 m

UI - UX

  • Splash Screen: Generic
