FLIR Scion OTM260 Outdoor Thermal Monocular

SKU: FLIRSCIONOTM260
  • Hand-held compact thermal imaging instrument
  • Suitable for outdoor thermography in harsh conditions
  • 9 - 60Hz refresh rate
More Info
In Stock - Available Next Day

Dual-Use Item: Export authorisation may be required to move this item outside of the UK (Council Regulation (EC) No.428/2009)

FLIR Scion OTM Outdoor Thermal Monocular

The FLIR Scion OTM Outdoor Thermal Monocular can swiftly detect objects of interest or any encountered wildlife be they concealed within complete darkness, through a glaring light or even a thick fog. All humans, animals and objects produce heat energy, handheld optics such as the OTM series use this infrared radiation to produce clear thermal imaging. This hard-wearing instrument is ideal for reliable thermal captures even in the most demanding of external environments.

Built with a powerful Boson thermal core, the Scion OTM's 9 to 60 Hz refresh rate results in clear, easy-to-understand images, preserving detail even when the target continues moving. Store such captures within the internal memory and expandable microSD, geotagging both video and still images for future playback. Featuring a Bluetooth connection for streaming live video via Wi-Fi, the OTM also boasts a picture-in-picture mode with digital zoom incorporated.

The crisp OLED display of this FLIR Outdoor Thermal Monocular series offers superb, unwavering vision in conjunction with video recording, manual focus and digital zoom. With DateTime Stamps and six temperature image modes, the OTM models are the perfect solution for outdoor enthusiasts with thermal imaging needs.

Each rugged, IP67-rated FLIR Scion OTM is built to be reliable whilst remaining as uncomplicated as possible. Intuitive controls allow for single-hand operation and polished menus allow for rapid thermal palette adjustments. Including a 16mm eye relief for user comfort, the grey/Black Scion OTM is battery-powered with a 4 & a half-hour lifespan and automatic off function.

Key Features

  • Professional quality thermal imaging monocular
  • For advanced outdoor thermography
  • A choice between four models
  • Capable of distinguishing objects of instruments through fog, smoke & more

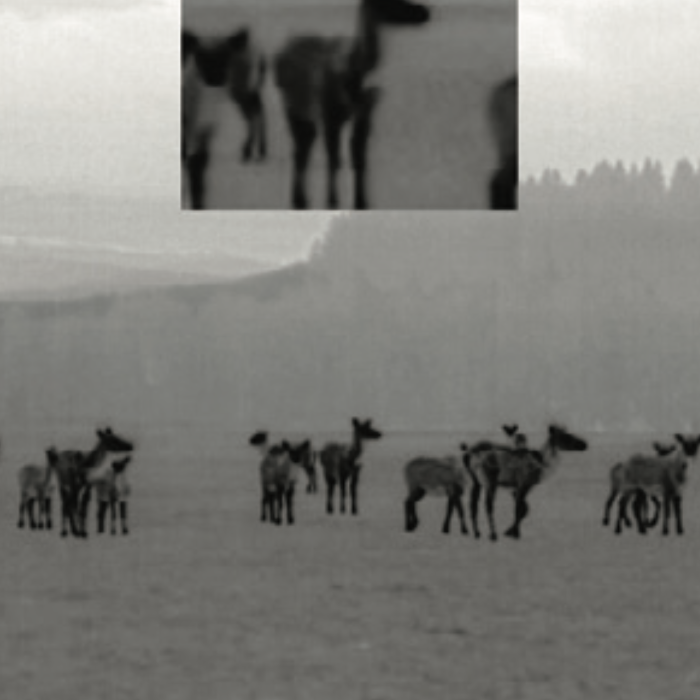

  • Picture-and-picture mode with digital zoom
  • Powered by an internal Boson thermal core
  • 9Hz refresh rate for easy-to-understand thermal images
  • Geotagging and DateTime stamp function
  • Video recording
  • Live encrypted video streaming
  • Wi-Fi & Bluetooth connections are available
  • Six temperature imaging modes
  • IP67 rated with black/grey colour housing
  • Comfortable 16mm eye relief
  • Battery powered with automatic off feature

FLIR Scion OTM Outdoor Thermal Monocular

The FLIR Scion OTM Outdoor Thermal Monocular can swiftly detect objects of interest be it concealed within complete darkness, through a glaring light or even haze. All humans, animals and object produce heat energy, handheld optics such as the OTM series use this infrared radiation to produce clear thermal imaging. This hard-wearing instrument is ideal for reliable thermal captures even in the most demanding of external environments.

Built with a powerful Boson thermal core, the Scion OTM's 9 Hz refresh rate results in clear, easy-to-understand images. Store such captures within the microSD expandable memory, geotagging both video and still images for future playback. Featuring a Bluetooth connection for streaming live video via Wi-Fi, the OTM also boasts a picture-in-picture mode with digital zoom incorporated.

The crisp OLED display of this FLIR Outdoor Thermal Monocular series offers superb, unwavering vision in congestion with video recording, manual focus and a digital zoom. With DateTime Stamps and six temperature images modes the OTM models are the perfect solution for outdoor enthusiasts with thermal imaging needs.

Each rugged, IP67 rated FLIR Scion OTM is built to be reliable whilst remaining as uncomplicated as possible. Intuitive controls allow for single-hand operation and polished menus allow for rapid thermal palette adjustments. Including a 16mm eye relief for user comfort, the grey/Black Scion OTM are battery powered with a 4 & a half hour lifespan and automatic off function.

Multiple Models Available

The FLIR Scion OTM Outdoor Thermal Monocular series comes with an array of versatile lens options. Choose which model suits your needs best as each model is built with differing levels of clarity and reach.

  OTM130 OTM230 OTM260 OTM430
Safety Rating IP67 IP67 IP67 IP67
Detector Type 320 × 256 320 × 256 640 × 512 320 x 256
Lens System 13.8 mm 18 mm 18 mm 36mm
Field of View 16° × 12° 12° × 9° 24° × 18° 6° × 4.5°
Optical Magnification 1.5x 1.9x 1x 3.8x
Detection Range Performance (1.8m man) 550m 710m 710m 1420m
WiFi Video Streaming, File Transfer Video Streaming, File Transfer Video Streaming, File Transfer Video Streaming (ONVIF Discoverable)
Viewing Modes Scouting, Picture-in-Picture Scouting, Picture-in-Picture Scouting, Picture-in-Picture Scouting, Picture-in-Picture, Lock Span
Digital Zoom 1x, 2x, 4x 1x, 2x, 4x 1x, 2x, 4x, 8x 1x, 2x, 4x
Geo Positioning [GPS] -
Near Field Communications [NFC] - - -

Key Features

  • Professional quality thermal imaging monocular
  • For advanced outdoor thermography
  • Choice between four models
  • Capable of distinguishing objects of instruments through fog, smoke & more
  • Picture-and-picture mode with digital zoom
  • Powered by internal Boson thermal core
  • 9Hz refresh rate for easy-to-understand thermal images
  • Geotagging and DateTime stamp function
  • Video recording
  • Live encrypted video streaming
  • Wi-Fi & Bluetooth connections available
  • Six temperature imaging modes
  • IP67 rated with black/grey colour housing
  • Comfortable 16mm eye relief
  • Battery powered with automatic off feature

What's In The Box?

  • Choice of FLIR Scion OTM Professional Thermal Monocular
  • Battery tray
  • 6 x CR123 Batteries
  • USB-C cable
  • Black MOLLE pouch
  • Quick Start Guide
Specification

General

  • Image Capture: Yes

Overview

  • Detector Type:
    OTM130: 320 × 256
    OTM230: 320 × 256
    OTM260: 640 × 512
    OTM430: 320 x 256
  • Display: Quad-VGA (1280x960) High definition display
  • Internal Memory: 2 GB Internal Storage / Optional microSD™ Card (up to 128 GB)
  • Size:
    OTM130: 239 × 76.8 × 60.5 mm (9 × 3 × 2.4 in)
    OTM230: 239 × 76.8 × 60.5 mm (9 × 3 × 2.4 in)
    OTM260: 239 × 76.8 × 60.5 mm (9 × 3 × 2.4 in)
    PTM430: 278 x 77 x 73 mm (10.9 x 3.03 x 2.87 in)
  • Weight:
    OTM130 Without Batteries: 452 g; With Batteries 572 g
    OTM230 Without Batteries: 452 g; With Batteries 572 g
    OTM260 Without Batteries: 452 g; With Batteries 572 g
    OTM430 Without Batteries: 580 g; With Batteries 794 g

System Overview

  • Colour (housing): Grey / Black
  • Core Technology: BOSON 12 µm Vox Microbolometer
  • Display Focus: Manual
  • Eye Relief: 16mm
  • Lens System:
    OTM130: 13.8 mm
    OTM230: 18 mm
    OTM260: 18 mm
    OTM430 : 36 mm
  • Optical Magnification:
    OTM130: 1.5x
    OTM230: 1.9x
    OTM260: 1x
    OTM430: 3.8x

Connections & Communications

  • Bluetooth: BLE 4.1+
  • Geo Positioning [GPS]:
    OTM130: No
    OTM230: Yes
    OTM260: Yes
    OTM430: Yes
  • NFC [Near Field Communications]:
    OTM130: No
    OTM230: No
    OTM260: No
    OTM430: Yes
  • USB: USB-C; Power In; Video Out; Video and Image File Transfer
  • Video Recording: Yes
  • WiFi:
    OTM130: Video Streaming, File Transfer
    OTM230: Video Streaming, File Transfer
    OTM260: Video Streaming, File Transfer
    OTM430: Video Streaming (ONVIF Discoverable)

Environmental

  • Mounting: 1/4-20 Tripod Mount

Imaging & Optical

  • Detection Range Performance (1.8m man):
    OTM130: 550m
    OTM230: 710m
    OTM260: 710m
    OTM430: 1420m
  • Digital Zoom:
    OTM130: 1X | 2X | 4X
    OTM230: 1X | 2X | 4X
    OTM260: 1X | 2X | 4X | 8X
    OTM430: 1X | 2X | 4X
  • Field of View:
    OTM130: 16° × 12°
    OTM230: 12° × 9°
    OTM260: 24° × 18°
    OTM430: 6° × 4.5°
  • Focus: Manual
  • Refresh Rate: 9 Hz

Meter Data

  • Auto Power Off: Yes

Power

  • Battery Life: Up to 4.5 hours at 20°C
  • Battery Type: 6x CR123A 3V Lithium Battery

UI-UX

  • Accelerometer: Yes
  • DateTime Stamp: Yes
  • Magnetic Compass: Yes
  • Picture While Recording: Yes
  • Real Time Clock: Yes
  • Temperature Imaging Modes: White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava
  • Viewing Modes:
    OTM130: Scouting, Picture-in-Picture
    OTM230: Scouting, Picture-in-Picture
    OTM260: Scouting, Picture-in-Picture
    OTM430: Scouting, Picture-in-Picture, Lock Span
