FLIR Scion PTM Professional Thermal Monocular

SKU: FLIRSCIONPTM-CONF
  • Hand-held professional thermal imaging instrument
  • Suitable for law enforcement & outdoor enthusiasts
  • Four different advanced models to meet specific needs
More Info

Dual-Use Item: Export authorisation may be required to move this item outside of the UK (Council Regulation (EC) No.428/2009)

FLIR Scion PTM Professional Thermal Monocular

The FLIR Scion PTM Professional Thermal Monocular is designed to provide law enforcement officers with a high-performance thermal imaging tool capable of superior thermal surveillance. The infrared radiation, or heat energy, which is generated by all humans, animals and objects can be used by thermal imaging and handheld optics use to generate images regardless of adverse conditions such as complete darkness, smoke, fog or vegetation. Compact and portable, the FLIR Scion PTM series quickly detects objects of interest and improves user situational awareness whilst on foot or in a vehicle. Use this instrument to operate within urban or natural environments, countering unseen threats without having to reveal your position.

Powered by the Scion PTM's Boson thermal core, the smooth 60 Hz refresh rate produces sharp, easy-to-interpret images. A featured picture-in-picture mode with zoom can detect minute details from a distance without sacrificing peripheral awareness. Geotag video recordings or transmit live video, the PTM can instantly stream encrypted footage of a pursuit, evidence recovery or search & rescue effort to a command centre via a wireless network. In addition, network the Scion PTM with other deployed smart sensors via Wi-Fi for real-time centralised public safety information.

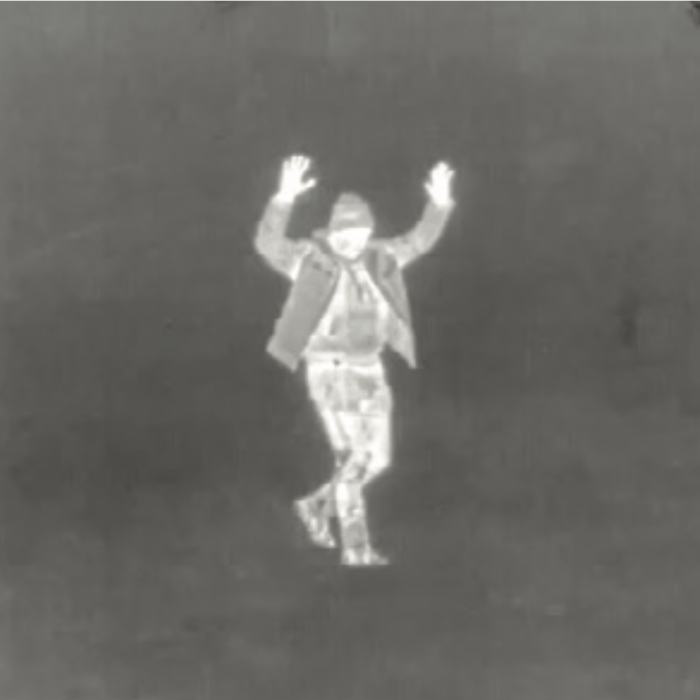

With video recording, a digital zoom and manual focus the FLIR Scion PTM Professional Thermal Monocular is a hard-working instrument suitable for anyone with hand-held thermal imagery needs. Date and Time are automatically stamped on captured images and the monocular comes complete with six separate temperature imaging modes including White Hot, Rainbow, Graded Fire and more.

Multiple Models Available

The FLIR Scion PTM Professional Thermal Monocular series comes with a range of versatile lens options. Choose which model suits your needs best as each PTM model is built with differing levels of clarity and reach.

  PTM166 PTM366 PTM466
Safety Rating IP67 IP67 IP67
Detector Type 320 × 256 640 × 512 640 x 480
Lens System 14mm 25mm 36mm
Field of View 31° × 24° 18° × 13° 12° × 9°
Optical Magnification 0.7x 1.3x 2.0x
Detection Range Performance (1.8m man) 550m 1000m 1420m
WiFi Video Streaming, File Transfer Video Streaming, File Transfer Video Streaming (ONVIF Discoverable)
Digital Zoom 1x, 2x, 4x, 8x 1x, 2x, 4x, 8x 1x, 2x, 4x, 8x
Geo Positioning [GPS] -
Near Field Communications [NFC] - -

Key Features

  • Professional quality thermal imaging monocular
  • For superior thermal surveillance
  • Choice of four models
  • Capable of distinguishing objects of instruments through fog, smoke, vegetation & more
  • Picture-and-picture mode with digital zoom
  • Powered by Boson thermal core
  • 60Hz refresh rate for sharp thermal images
  • Geotagging and DateTime stamp available
  • Video recording
  • Live encrypted video streaming
  • Wi-Fi connections available
  • Six temperature imaging modes
  • IP67-rated black colour housing
  • 16mm eye relief
  • Battery powered with automatic off

FLIR Scion PTM Professional Thermal Monocular

The FLIR Scion PTM Professional Thermal Monocular is designed to provide law enforcement officers with a high-performance thermal imaging tool capable of superior thermal surveillance. The infrared radiation, or heat energy, which is generated by all humans, animals and objects can be used by thermal imaging handheld optics use to generate images regardless of adverse conditions such as complete darkness, smoke, fog or vegetation. Compact and portable, the FLIR Scion PTM series quickly detect objects of interest and improve user situational awareness whilst on foot or in a vehicle. Use this instrument to operate within urban or natural environments without having to reveal your position.

Powered by the Scion PTM's Boson thermal core, the smooth 60 Hz refresh rate produces sharp, easy-to-interpret images. A featured picture-in-picture mode with zoom can detect minute details from a distance without sacrificing peripheral awareness. Geotag video recordings or transmit live video, the PTM can instantly stream encrypted footage to a command centre via a wireless network.

With video recording, a digital zoom and manual focus the FLIR Scion PTM Professional Thermal Monocular is a hard-working instrument suitable for anyone with hand-held thermal imagery needs. Date and Time is automatically stamped on captured images and the monocular comes complete with six separate temperature imaging modes including White Hot, Rainbow, Graded Fire and more.

Each of the rugged Professional Thermal Monocular in the PTM series are safety rated IP67 for reliable use in outdoor environments. Featuring a black housing and 16mm eye relief for advanced comfort, the Scion PTMs are battery powered with a 4 & a half hour lifespan and automatic shut off.

Multiple Models Available

The FLIR Scion PTM Professional Thermal Monocular series comes with a range of versatile lens options. Choose which model suits your needs best as each PTM model is built with differing levels of clarity and reach.

  PTM166 PTM336 PTM366 PTM466
Safety Rating IP67 IP67 IP67 IP67
Detector Type 320 × 256 320 × 256 640 × 512 640 x 480
Lens System 14mm 25mm 25mm 36mm
Field of View 31° × 24° 9° × 6.5° 18° × 13° 12° × 9°
Optical Magnification 0.7x 2.6x 1.3x 2.0x
Detection Range Performance (1.8m man) 550m 1000m 1000m 1420m
WiFi Video Streaming, File Transfer Video Streaming, File Transfer Video Streaming, File Transfer Video Streaming (ONVIF Discoverable)
Digital Zoom 1x, 2x, 4x, 8x 1x, 2x, 4x 1x, 2x, 4x, 8x 1x, 2x, 4x, 8x
Geo Positioning [GPS] -
Near Field Communications [NFC] - - -

Key Features

  • Professional quality thermal imaging monocular
  • For superior thermal surveillance
  • Choice of four models
  • Capable of distinguishing objects of instruments through fog, smoke, vegetation & more
  • Picture-and-picture mode with digital zoom
  • Powered by Boson thermal core
  • 60Hz refresh rate for sharp thermal images
  • Geotagging and DateTime stamp available
  • Video recording
  • Live encrypted video streaming
  • Wi-Fi connections available
  • Six temperature imaging modes
  • IP67 rated black colour housing
  • 16mm eye relief
  • Battery powered with automatic off

What's In The Box?

  • Choice of FLIR Scion PTM Professional Thermal Monocular
  • Battery tray
  • 6 x CR123 Batteries
  • USB-C cable
  • Black MOLLE pouch
  • Quick Start Guide
Specification

General

  • Image Capture: Yes

Overview

  • Detector Type:
    PTM166: 320 × 256
    PTM336: 320 × 256
    PTM366: 640 × 512
    PTM466: 640 x 480
  • Display: Quad-VGA (1280x960) High definition display
  • Internal Memory: 2 GB Internal Storage / Optional microSD™ Card (up to 128 GB)
  • Size:
    PTM166: 227 × 76.8 × 60.5 mm (9.4 × 3 × 2.4 in)
    PTM336: 227 × 76.8 × 60.5 mm (9.4 × 3 × 2.4 in)
    PTM366: 227 × 76.8 × 60.5 mm (9.4 × 3 × 2.4 in)
    PTM466: 278 x 77 x 73mm (10.9 x 3.03 x 2.87 in)
  • Weight:
    PTM166 Without Batteries: 452 g; With Batteries 565 g
    PTM336 Without Batteries: 567 g; With Batteries 680 g
    PTM366 Without Batteries: 567 g; With Batteries 680 g
    PTM466 Without Batteries: 680 g; With Batteries 793 g

System Overview

  • Colour (housing): Black
  • Core Technology: BOSON 12 µm Vox Microbolometer
  • Display Focus: Manual
  • Eye Relief: 16mm
  • Lens System:
    PTM166: 14mm
    PTM336: 25mm
    PTM366: 25mm
    PTM466: 36mm
  • Optical Magnification:
    PTM166: 0.7x
    PTM336: 2.6x
    PTM366: 1.3x
    PTM466: 2.0x

Connections & Communications

  • Bluetooth: BLE 4.1+
  • Geo Positioning [GPS]:
    PTM166: No
    PTM336: Yes
    PTM366: Yes
    PTM466: Yes
  • NFC [Near Field Communications]:
    PTM166: No
    PTM336: No
    PTM366: No
    PTM466: Yes
  • Video Recording: Yes
  • WiFi:
    PTM166: Video Streaming, File Transfer
    PTM336: Video Streaming, File Transfer
    PTM366: Video Streaming, File Transfer
    PTM466: Video Streaming (ONVIF Discoverable)

Electrical & Mechanical

  • User Interface: USB-C; Power In; Video Out; Video and Image File Transfer

Environmental

  • Mounting: 1/4-20 Tripod Mount

Imaging & Optical

  • Detection Range Performance (1.8m man):
    PTM166: 550m
    PTM336: 1000m
    PTM366: 1000m
    PTM466: 1420m
  • Digital Zoom:
    PTM166: 1X | 2X | 4X | 8X
    PTM336: 1X | 2X | 4X
    PTM366: 1X | 2X | 4X | 8X
    PTM466: 1X | 2X | 4X | 8X
  • Field of View:
    PTM166: 31° × 24°
    PTM336: 9° × 6.5°
    PTM366: 18° × 13°
    PTM466: 12° × 9°
  • Focus: Manual
  • Refresh Rate: 60 Hz

Meter Data

  • Auto Power Off: Yes

Power

  • Battery Life: Up to 4.5 hours at 20°C
  • Battery Type: 6x CR123A 3V Lithium Battery

UI-UX

  • Accelerometer: Yes
  • DateTime Stamp: Yes
  • Magnetic Compass: Yes
  • Picture While Recording: Yes
  • Real Time Clock: Yes
  • Temperature Imaging Modes: White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava
  • Viewing Modes: Scouting, Picture-in-Picture
