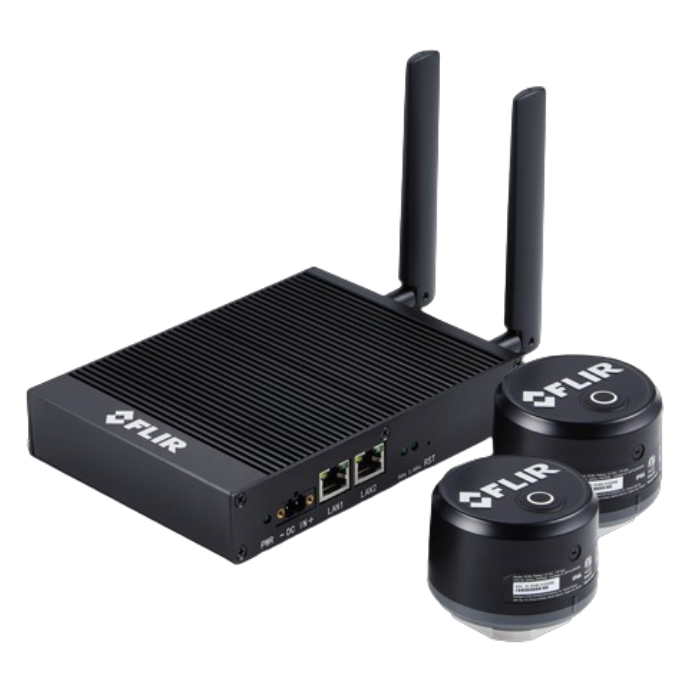

FLIR SV88 Vibration Monitoring Solution Kit

FLIR
SKU: FLIRSV88
  • Achieve precise vibration analysis with 5kHz tri-axial monitoring, which allows the user to see detailed insights
  • The SV88 Kit includes two SV88 Vibration Sensors, a GW66 Gateway, two batteries, two mounting studs, and a limited warranty card
  • The Gateway device can be used to reduce latency and optimise the way a resource is used and maintained
More Info
Typically ships in 7-10 working days

FLIR SV88 Vibration Monitoring Solution Kit

The FLIR SV88 Vibration Monitoring Solution Kit allows the user to take precise measurements of vibration, offering an insight into vibrational characteristics of equipment. This can help reduce downtime, which can prove costly and time-consuming. The SV88 enables for the condition of critical equipment to be monitored, by continuously analysing vibrations from rotating equipment. This collates the necessary insights that are needed to utilise predictive maintenance strategies. The user is also able to detect faults, such as gear damage or misalignment, thanks to vibration patterns. With data-driven decision making thanks to the SV88, you can be confident that your equipment is running as efficiently as possible.

The SV88 has wireless capability, meaning it can be installed and deployed with ease in a range of industrial environments. It is also IP66 rated, which ensures protection from moisture, dust, and debris, allowing for the user to feel confident utilising the instrument in various scenarios. The SV88 can also be integrated with advanced analysis tools, where multi-communication protocols such as Modbus, MQTT, and OPC UA can be used. Precise measurements are also offered, with GRMS, VRMS, peak, crest factor, kurtosis, skewness, standard deviation, and FFT all available, esnuring full coverage and detailed insights.

The included GW66 Gateway can be utilised for advanced on-device vibration analysis through Web GUI, reducing latency and optimising the use of resources, whilst still ensuring that necessary and timely insights are provided. 5kHz tri-axial monitoring and integrated temperature sensors that can be used from -20°C to 80°C, ensure that the tool can be used wherever needed.

FLIR part number: SV88

Key Features

  • The user can achieve precise vibration analysis with 5kHz tri-axal monitoring
  • Integrated temperature sensors (-20°C to 80°C) to offer comprehensive monitoring and vibration analysis
  • Access real-time data and analysis through Web GUI on the GW66 Gateway
  • Also use advanced capabilities on the Gateway to offer advanced insights
  • Support for MQTT, Modbus, and OPC UA protocols
  • Can run GRMS, VRMS, peak, crest factor, kurtosis, skewness, standard deviation, and FFT analysis
  • Can be used for condition monitoring of critical equipment, fault detection of vibration patterns, and data-driven decision making
  • The SV88 Kit includes two SV88 Vibration Sensors, a GW66 Gateway, two Mounting Studs, as well as two LS17500 batteries

SV88 vs SV89

The SV88 and SV89 are slightly different, with the key differences listed in the table below:

  SV88 SV89
Sensitivity Range ±16 g ±50 g
Frequency Range 10Hz to 5kHz 10Hz to 10kHz
Output Data 19,200 raw data 12,800 raw data

What's In The Box?

  • 2 x SV88 Vibration/Temperature Remote Sensor
  • GW66 Remote Monitoring Gateway
  • 2 x Mounting Studs
  • 2 x LS17500 Battery
  • Quick Start Guide
  • 3-Year Limited Warranty Card
Specification

Vibration Sensor Specifications

Measurement & Analysis

  • Sensitivity Range - ±16 g
  • Frequency Range - 10Hz to 5kHz
  • Capture Rate - Configurable: 1 min (min) ~ 1 day (max)
  • Temperature Range - Display measurement trend of contact temperature -20°C to 80°C (-4°F to 176°F)
  • Output Data - 5KHz, X/Y/Z: 19,200 raw data
  • Vibration Analysis Data - Grms, Vrms (IS010816), Peak, Crest Factor, Kurtosis, Skewness, Standard Deviation, FFT
  • Memory - 1MB Flash

Connections & Communications

  • Wi-Fi Type - IEEE 802.11n
  • Range (during a session) - Up to 50m (160ft), line of sight
  • Communication Protocol - TCP Socket
  • Mounting - Bolt/screw (1/4" x 28 UNF) or TA88 Magnetic mount (optional)

General Information

  • Warranty - 3 years
  • Certifications - ETL/FCC/IC/CE/UKCA/RCM

Environmental Data

  • Operating Temperature Range - -20°C to 80°C (-4°F to 149°F)
  • Storage Temperature Range - -20°C to 80°C (-4°F to 149°F)
  • Relative Humidity - 10% to 95% relative humidity, non-condensing
  • Operating Altitude - 2000m (6,562ft) drop test
  • Drop Test - 1m (3ft)
  • IP Rating - IP66

Power

  • Battery Type - LS17500 3.6V 3600 mAh Li battery (replaceable)
  • Battery Life - Min 2 years subject to sampling rate and installation environments
  • LED Indicators - Low battery LED

Physical Data

  • Size (L x W x H) - Sensor: 29 x 25 x 14mm (1.14 x .98 x .55in)
  • Weight - Sensor: 187g (6.6oz)

Gateway Specifications (GW66)

System

  • Processor - ARM Cortex-A7
  • Memory - DDR3L 512 MB
  • Storage - 32 MB NOR Flash
  • Realtime Clock - On chip RTC
  • LED Indicators - WAN, LAN, 2.4GHz, 5 GHz dual band dual concurrent

Connections & Communications

  • Wi-Fi Type - IEEE 802.11 b/g/n:
  • Communication Protocol - MQTT, Modbus, OPC UA
  • Operating Systems - Built-in webserver (Linux)
  • Output Data - Vibration analysis data, Grms, Vrms, (ISO10816), Peak, Crest Factor, Kurtosis, Skewness, Standard Deviation, FFT
  • Ethernet - LAN, WAN

Environmental Data

  • Operating Temperature Range - 25°C to 65°C (-13°F to 149°F)
  • Storage Temperature Range - 25°C to 65°C (-13°F to 149°F)
  • Relative Humidity - 10% to 95% relative humidity, non-condensing

Input/Output

  • Ethernet - 1 x 10/100/1000 Base-TX MDI/MDIX for LAN, 1 x 10/100/1000 Base-TX MDI/MDIX for WAN

Power Supply

  • PoE Input - 802.3 at standard PoE (PD) @ WAN port
  • Power Input - 12 VDC
  • AC Input - TA87 universal power adaptor: 100V to 240V AC, 50/60Hz (optional)

Environmental and Mechanical

  • IP Rating - IP40
  • Mounting - Wall-mount or DIN-rail mount
  • Operation Temperature - -40°C to 75°C (-40°F to 167°F)
  • Storage Temperature - -40°C to 85°C (-40°F to 185°F)

Physical Data

  • Packaging Size (L x W x H) - 285 x 147 x 100mm
  • Packaging Weight - 3.3lbs
  • Size (L x W x H) - Gateway: 57.3 x 39.3 x 46.1mm (2.25 x 1.55 x 1.81in)
  • Weight - Gateway: 645g (22.75oz)
