FLIR T300953 IR Lens Dual FOV, F=10/17mm (24°/42°)

FLIR
SKU: FLIRT300953
  • FlexView® dual field of view IR lens with 24° and 42° viewing options
  • Switch quickly between wide and narrow fields of view without changing lens
  • Designed for FLIR Axxx-Series cameras for flexible inspection of large areas and detailed targets
More Info
Typically ships in 7-10 working days

FLIR T300953 IR Lens Dual FOV, F=10/17mm (24°/42°)

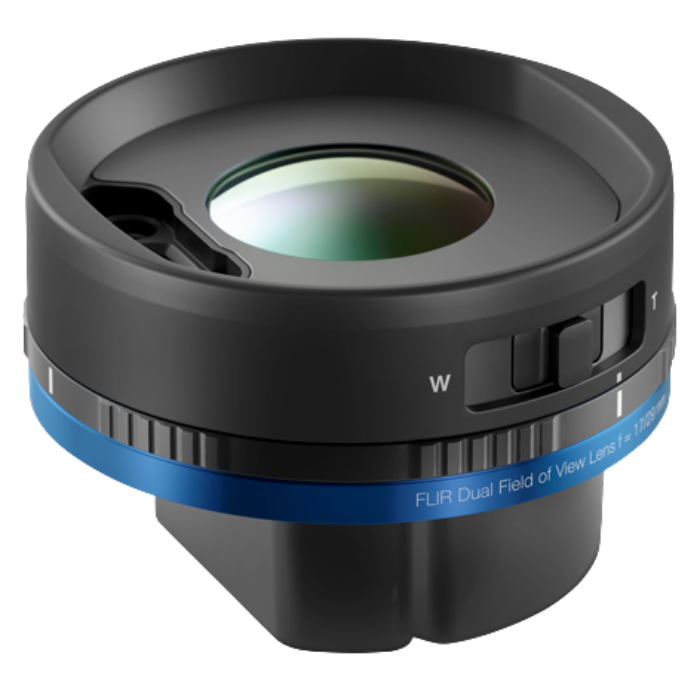

The FLIR T300953 IR Lens (T300953) is designed for use with FLIR Axxx-Series cameras with dual fields of view (FOV). Users are able to quickly switch between extra-wide, wide, and narrow views for precise measurements, which eliminates the need to change lenses in the field. This also allows for the user to adjust the view to better suit the task at hand, whether they need an extra-wide view for safety, or a narrow view to make accurate temperature measurements.

The 42° field of view is ideal for the inspection of large targets and equipment, as it allows for the efficient and accurate scanning of expansive areas while delivering high quality images for analysis.

FLIR part number: T300953

Key Features

  • FlexView® dual field of view infrared lens (24°/42°), f = 10/17mm
  • Instant switching between wide and narrow FOVs
  • Improves safety and efficiency during inspections
  • Ideal for large equipment and target inspections
Specification
  • Field of View (FOV) -
    42°: 10mm (0.39in)
    24°: 17mm (0.67in)
  • Minimum Focus Distance -
    42°: 0.25m (0.82ft)
    24°: 0.5m (1.64ft)
  • Spatial Resolution (IFOV) f = 10mm (42°) -
    320 x 240 pixels: 2.4 mrad/pixel
    464 x 348 pixels: 2.4 mrad/pixel
    640 x 480 pixels: 2.4 mrad/pixel
  • Spatial Resolution (IFOV) f = 17mm (24°) -
    320 x 240 pixels: 1.4 mrad/pixel
    464 x 348 pixels: 1.0 mrad/pixel
    640 x 480 pixels: 0.7 mrad/pixel
