FLIR TG268 Spot Thermal Camera with MSX

FLIR
SKU: FLIRTG268
  • Spot Thermal Camera which is able to detect and evaluate issues seen through hot and cold areas, in a wide range of environments
  • The FLIR TG268 is able to reduce diagnostic time, whilst also simplifying repair and maintenance reporting for the user
  • Supplied with an in-built LED worklight, as well as a Pouch, Type-K Thermocouple, a USB-C cable, and a Wrist Strap Lanyard
More Info
In Stock - Available Next Day

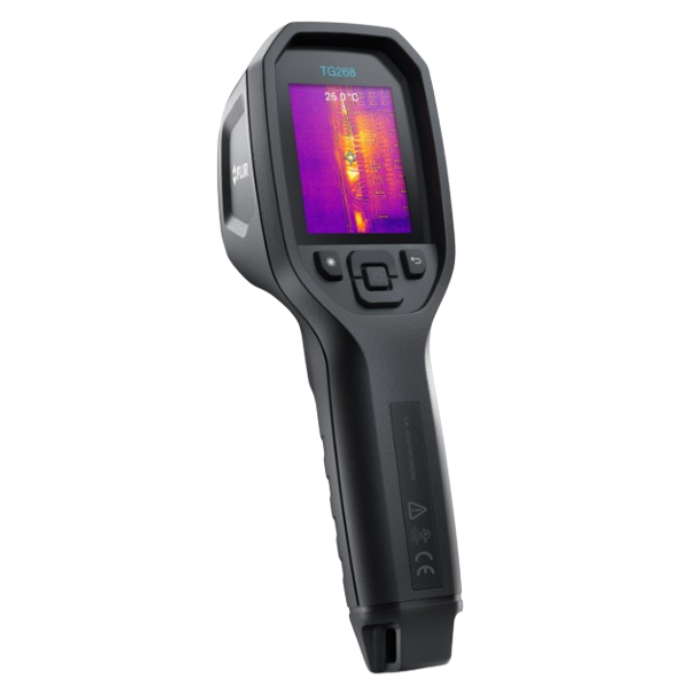

FLIR TG268 Spot Thermal Camera with MSX

The FLIR TG268 Spot Thermal Camera is able to detect and evaluate issues that are seen through hot and cold areas, and is ideal for use in a range of environments. These include commercial electrical settings, facility maintenance, as well as automotive and HVAC applications. This 24:1 spot thermal camera has a 2.4 inch screen, and is able to reduce diagnostic time, whilst also simplifying repair and maintenance reporting. Temperatures can be accurately measured up to 400°C (752°F), with a bullseye laser pointer able to precisely measure location. The TG268 comes complete with a built-in LED worklight, which helps improve visibility in dark or poorly lit areas, as well as being 2m drop tested to ensure durability and reliability wherever it is being used.

The FLIR TG268 has a Field of View (FOV) of 44° × 57°, with the FLIR TG-Series also equipped with Super Resolution technology to enhance image quality and ensure that the user is able to receive clear imagery. Super resolution allows for images to be upscaled to 320 x 240 (76,800 pixels) resolution, which delivers sharpness and greater detail. This allows for issues to be quickly identified, both improving decision making and allowing for more reliable thermal inspections. A 5 hour continuous scanning time ensures users can get the most from their camera, with a rechargeable Li-ion battery allowing for easy recharging.

FLIR MSX® Image Enhancement

This product features FLIR's unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard camera to the entire infrared image, all in real time. This provides the user with an all-in-one, undiluted thermal image that enables for the problematic area to be instantly recognised, thanks to visible light features. MSX offers real time imagery, so results can be viewed immediately on the camera's display, and action can be taken on these areas.

FLIR METERLiNK App

​This product is also compatible with the FLIR METERLiNK® app, which is a powerful tool for professionals seeking efficient remote monitoring and data management. It enables users to connect up to seven compatible FLIR meters simultaneously via Bluetooth®, allowing for real-time tracking of various electrical and environmental conditions. The app's intuitive dashboard displays both graphical and numerical data, including minimum, maximum, and average readings, and allows users to set custom alarm thresholds for enhanced safety and operational assurance.

The METERLiNK app facilitates comprehensive data analysis by enabling comparisons of log files from multiple meters, allowing for effective troubleshooting. Users can generate detailed, customisable PDF reports, and incorporate in data logs, images, and videos, complete with personalised logos and notes. Additional features include dark/light display modes, direct links to FLIR support for troubleshooting, automatic app updates, and text notifications for low battery, disconnected meters, or alarm events. The app is available for iOS® and Android™ devices and is compatible with a wide range of FLIR test and measurement tools that have Bluetooth® connectivity.

FLIR part number: 87505-0505

Key Features

  • See and evaluate the hot and cold spots that can indicate serious issues that need action taken on
  • Ideal for use in commercial electrical, facility maintenance, automotive and HVAC applications
  • 2.4 inch screen with an infrared resolution of 320 x 240 when used with FLIR super resolution
  • The FLIR METERLiNK App allows for users to connect up to seven instruments to analyse data and collaborate
  • Accurately measure temperatures up to 400°C (752°F) with a 24:1 spot size ratio and bullseye laser pointer
  • MSX image enhancement improves detail of imagery, allowing for you to better analyse
  • IP54 rating to ensure it is well protected on a range of job sites
  • Equipped with a built-in LED worklight for use in poorly lit areas, as well as a Type K Thermocouple

What's In The Box?

  • FLIR TG268 Spot Thermal Camera with MSX
  • Wrist Strap Lanyard
  • Pouch
  • USB Type-C Cable
  • Type-K Thermocouple
  • Printed Documentation
Specification

Imaging & Optical

  • Built-in Digital Camera - Yes
  • Colour Palettes - Iron, Rainbow, White Hot, Black Hot, Arctic, Lava
  • Detector Pitch - 12 µm
  • Detector Type - Focal plane array (FPA), uncooled microbolometer
  • Digital Image Enhancement - Yes
  • Field of View (FOV) - 57° × 44°
  • Focus - Focus free
  • Image Frequency - 8.7 Hz
  • Image Modes - MSX® (Multi Spectral Dynamic Imaging), Visual with temperature reading
  • IR Resolution - 160 x 120, Super Resolution 320 x 240
  • Laser - Class 1 laser indicates the temperature measurement area: button activated
  • Minimum Focus Distance - 0.3 m (0.98 ft)
  • Minimum Measurement Distance - 0.26 m (0.85 ft)
  • Non-radiometric IR Video Recording - Yes
  • Spectral Range - 7.5 - 14 µm
  • Thermal Sensitivity/NETD - <70 mK

Measurement & Analysis

  • Accuracy - ±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F) and 100°C to 400°C (213°F to 752°F)
    ±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F
  • Camera Size (L x W x H) - 210 x 64 x 81 mm (8.3 x 2.5 x 3.2 in)
  • Camera Weight incl Battery - 0.394 kg (13.9 oz)
  • Centre Spot - Yes
  • Measurement Option - Non-contact surface / contact with Type-K
  • Object Temperature Range - −25°C to 400°C (−13°F to 752°F)

User Interface

  • Display - 320 x 240, 2.4 in colour LCD

Power

  • Battery Operating Time - 5 hours continuous scanning, 4.5 hours with laser on
  • Battery Type - Rechargeable Li-ion battery
  • Battery Voltage - 3.7 V
  • Charging System - Battery is charged inside the camera
  • Charging Temperature - 0°C to 45°C (32°F to 113°F)
  • Charging Time - 3 hours to 90%, 4 hours to 100%

Environmental & Certifications

  • Certifications - CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan
  • Drop Test - Designed for 2 m (6.6 ft)
  • EMC -
    EN 61000-6-3
    EN 61000-6-2
    FCC 47 CFR Part 15 Class B
  • Encapsulation - IP 54 (IEC60529)
  • Humidity (Operating and Storage) - 0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
  • Operating Temperature Range - -10°C to 45°C (14°F to 113°F)
  • Radio Spectrum -
    ETSI EN 300 328
    FCC Part 15.249
    RSS-247 Issue 2
    EN 301 489-1:2011
    EN 301 489-17:2009
  • Safety - CE/CB/EN61010/UL
  • Shock - 25 g (IEC 60068-2-27)
  • Storage Temperature Range - −30°C to 55°C (−22°F to 131°F)
  • Tripod Mounting - 1/4 in. - 20 on handle bottom
  • Vibration - 2 g (IEC 60068-2-6)
  • Warranty - FLIR 2-10 warranty
