Fluke 117 and 323 Electrician's Multimeter Combo Kit

Fluke
SKU: FLUKE117323
  • Both Fluke 117 and 323 feature True-rms technology for accurate reading
  • Has a VoltAlert™ Non-Contact Voltage Detection for fast troubleshooting
  • CAT III 600V and CAT IV 300V safety rated
More Info
Typically ships in 3-5 working days

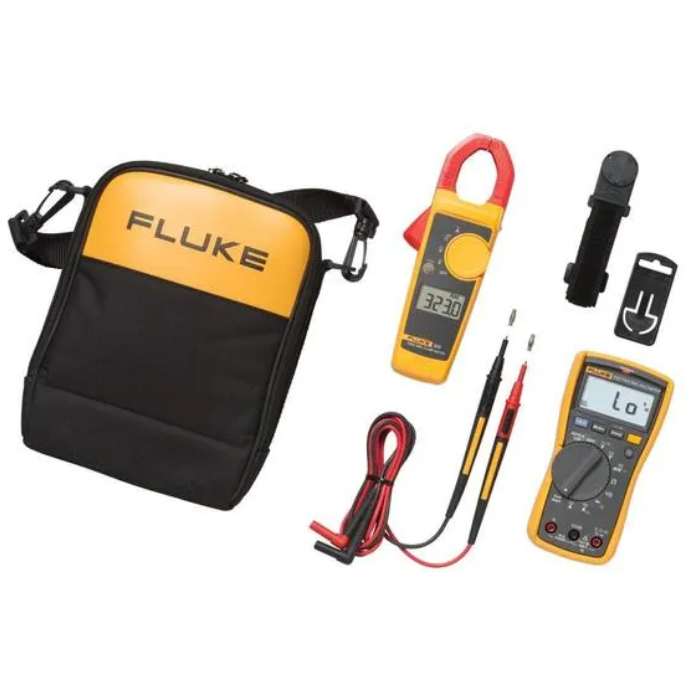

Fluke 117 and 323 Electrician's Multimeter Combo Kit

The Fluke 117 and 323 Electrician's Multimeter Combo Kit provides electricians with a complete electrical testing solution for fast and accurate troubleshooting. The kit includes the Fluke 117 Digital Multimeter and the Fluke 323 True-rms Clamp Meter, covering all essential measurements required for installation, maintenance, and fault finding. Both instruments are supplied in a durable C115 soft carrying case for protection between jobs.

The Fluke 117 Digital Multimeter features VoltAlert™ non-contact voltage detection for quick voltage checks and AutoVolt technology, which automatically selects AC or DC voltage. Its True-rms measurement capability ensures accurate readings on non-linear loads, while low input impedance helps prevent false readings caused by ghost voltage. The meter also measures resistance, continuity, frequency, capacitance, and current up to 10A (20A overload for 30 seconds). Its compact ergonomic design and bright white LED backlight make it ideal for use in tight or poorly lit environments.

Complementing the multimeter is the Fluke 323 True-rms Clamp Meter, which measures AC current up to 400A without breaking the circuit. It also measures AC/DC voltage up to 600V, resistance up to 40kΩ, and continuity. Its slim, rugged design fits easily into crowded panels, while True-rms technology provides dependable and accurate measurements on non-linear electrical systems.

The kit offers CAT III 600V protection for the multimeter and CAT IV 300V/CAT III 600V safety ratings for the clamp meter, giving professionals confidence when working across a wide range of electrical installations.

Part number: 117/323

Key Features

Fluke117 Digital Multimeter

  • VoltAlert™ technology for non-contact voltage detection
  • AutoVolt automatic ac/dc voltage selection
  • Low input impedance: Helps prevent false readings due to ghost voltage
  • Large white LED backlight to work in poorly lit areas
  • True-rms for accurate measurements on non-linear loads
  • Measures 10 A (20 A overload for 30-seconds)
  • Resistance, continuity, frequency and capacitance
  • Min/Max/Average to record signal fluctuations
  • Compact ergonomic design for one-handed operation
  • CAT III 600 V safety rated

Fluke 323 True-rms Clamp Meter

  • 400 A ac current measurement
  • 600 V ac and dc voltage measurement
  • True-rms ac voltage and current for accurate measurements on non-linear signals
  • Resistance measurement up to 40 k? with continuity detection
  • Slim, ergonomic design
  • CAT IV 300V/CAT III 600 V safety rating

What's In The Box?

  • Fluke 117 Digital Multimeter
  • Fluke 323 True-rms Clamp Meter
  • Fluke C115 Soft Carrying Case
Specification

Fluke 117 Digital Multimeter

  • Maximum voltage between any terminal and earth ground: 600 V
  • Surge protection: 6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2
  • Fuse for A input 11 A, 1000 V FAST Fuse (Fluke PN 803293)
  • Display Digital: 6,000 counts, updates 4 per second
  • Bar graph: 33 segments, updates 32 per second
  • Operating temperature: -10°C to +50°C
  • Storage temperature: -40°C to +60°C
  • Battery type: 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
  • Battery life: 400 hours typical, without backlight
  • Size: 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
  • Weight: 550 g
  • Warranty: 3 years

Fluke 323 True RMS Clamp Meter

  • AC current Range: 400.0 A
  • AC Current Accuracy: 2% ±5 digits (45 Hz to 65 Hz) | 5% ±5 digits (65 Hz to 400 Hz)
  • AC voltage Range: 600.0 V
  • AC Voltage Accuracy: 1.5% ±5 digits
  • DC voltage Range: 600.0 V
  • DC Voltage Accuracy: 1.0% ±5 digits
  • Resistance Range/Resolution: 400.0 Ω/ 4000 Ω
  • Resistance Accuracy: 1.0% ±5 digits
  • Continuity: £ 70 Ω
  • AC response: True RMS
  • Data hold: Yes
  • Size H x W x D: 207 x 75 x 34 mm
  • Max wire diameter: 30 mm (600 MCM)
  • Weight: 265 g
  • Category rating: CAT III 600 V | CAT IV 300 V
  • Warranty: 2 year
