Fluke 1550C FC 5kV Insulation Tester

Fluke
SKU: FLUKE1550CFC
  • Test voltage up to 5000V
  • CAT III 1000V, CAT IV 600V safety rating
  • Selectable test voltages in 50V increments from 250V to 1000V, and 100V increments above 1000V
More Info
Typically ships in 5-8 working days

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

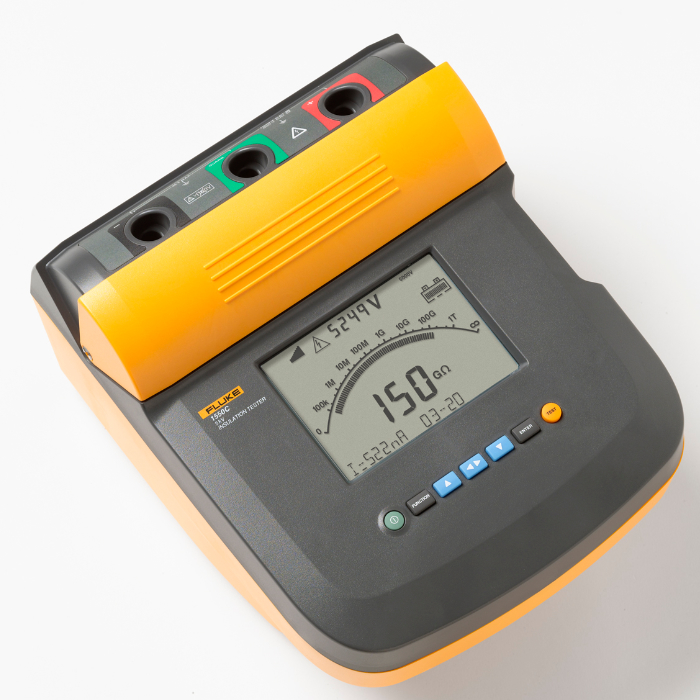

Fluke 1550C FC 5kV Insulation Tester

The Fluke 1550C performs digital insulation testing up to 5kV and is designed to improve user safety and save time whilst installing high voltage equipment such as switchgear, motors, generators and cables. The Fluke 1550C is able to perform test voltage testing at selectable 50V steps from 250V to 1000V and 100V steps above 1000V. With wireless start/stop capability the user is able to work remotely ensure their safety at all times.

The Fluke 1550C allows users to measure a wide range of parameters such as capacitance from 0.01μF to 15μF, leakage current from 1nA to 2mA and resistance measurements up to 1TΩ/2TΩ. The included guard systems allows for the filtering out of surface leakage current on high resistance measurements.

Fluke Connect® App

Through the Fluke Connect® App the 1550C is capable of storing, sharing and analysing data, allowing users to prevent and predict issues in maintenance programs to help identify potential equipment failures before they occur.

The Fluke 1550C has a long battery life of up to 750 tests between charges and an internal memory of 99 memory locations allows users to store recordings with user defined labels, allowing easy recall once testing has been completed. Comprehensive results analysis is capable through the Fluke 1550C's large LCD screen with both digital and analogue displays.

The Fluke 1550C has a safety rating of CAT III 1000V and CAT IV 600V and is capable of conducting the entire range of test voltage specified in IEEE 43-2000. A warning function alerts users whether line voltage is present and gives the voltage reading up to 600V AC or DC for increased user safety.

Key Features

  • Automatic calculation of Dielectric Absorption (DAR) and Polarisation Index (PI) with no additional setup
  • Guard system eliminates the effect of surface leakage current on high-resistance measurements
  • Selectable test voltages in 50V steps from 250V to 1000V, and 100V steps above 1000V
  • CAT III 1000V, CAT IV 600V safety rating
  • Warning function alerts the user that line voltage is present and gives the voltage reading up to 600V AC or DC for increased user safety
  • Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
  • Long battery life gives the user over 750 tests between charges
  • Large digital/analog LCD for easy viewing
  • Capacitance and leakage current measurement
  • Ramp function for breakdown testing
  • Resistance measurements up to 2 TΩ
  • Timer settings up to 99 minutes for timed tests
  • 3-year warranty

What's In The Box?

  • Fluke 1550C
  • Test cables with alligator clips (red, green and black)
  • Infrared adaptor with interface cable
  • AC power cord
  • Soft carry case
  • Quick reference card
  • USB-IR cable installation guide
  • Fluke Connect IR to wireless connector
Specification
    Fluke 1550C:

      Test Voltage DC

      250V

    • Range/Accuracy (± reading):
    • <250kΩ/ Unspecified
    • 250kΩ to 5GΩ/ 5%
    • 5GΩ to 50GΩ/ 20%

    500V

  • Range/Accuracy (± reading):
  • <500kΩ/ Unspecified
  • 500kΩ to 10GΩ/ 5%
  • 10GΩ to 100GΩ/ 20%
  • >50GΩ/ Unspecified

1000V

  • Range/Accuracy (± reading):
  • < <1MΩ/ Unspecified
  • 1MΩ to 20GΩ/ 5%
  • 20GΩ to 200GΩ/ 20%
  • >200GΩ/ Unspecified

    • 2500V

  • Range/Accuracy (± reading):
  • < <2.5MΩ/ Unspecified
  • 2.5MΩ to 50GΩ/ 5%
  • 50GΩ to 500GΩ/ 20%
  • >500GΩ/ Unspecified

    • 5000V

  • Range/Accuracy (± reading):
  • < <5MΩ/ Unspecified
  • 5MΩ to 100GΩ/ 5%
  • 100GΩ to 1TΩ/ 20%
  • >1TΩ/ Unspecified
  • Bar Graph range: 0 to 1TΩ (1550C) - 0 to 2TΩ (1555)
  • Insulation test voltage accuarcy: -0%, +10% at 1 mA load current
  • Induced AC mains current rejection: 2mA maximum
  • Charging rate for capacitive load: 5 seconds per μF
  • Discharge rate for capacitive load: 1.5 s/μF

    • Leakage current measurement

  • Range: 1nA to 2mA
  • Accuracy: ± (5% + 2nA)

    • Capacitance measurement

  • Range: 0.01μF to 15.00μF
  • Accuracy: ±(15% rdg + 0.03μF)

    • Timer

  • Range: 0-99 minutes
  • Resolution setting: 1 minute
  • Resolution indication: 1 second

    • Live Circuit Warning:

  • Warning Range: 30V to 660V AC/DC, 50/60Hz
  • Voltage Accuracy: ±(15% + 2V)

    • Software Specifications:

  • FlukeView Forms™ basic software requires a PC running Windows XP, Windows Vista , Windows 7 or Windows 8.

    • General Specifications:

  • Display: 75mm x 105mm
  • Power: 12V lead-acid rechargeable battery, Yuasa NP2.8-12
  • Charger Input (AC): 85V to 250V AC 50/60Hz 20VA
  • Dimensions: 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
  • Weight: 3.7kg (8.2lb)
  • Temperature (Operating):-20°C to 50°C (-4°F to 122°F)
  • Temperature (storage): -20°C to 65°C (-4°F to 149°F)
  • Humidity: 80% to 31°C decreasing linearly to 50% at 50°C
  • Altitude: 2000m
  • Enclosure: IP40
  • Input overload protection: 1000V AC
  • Electromagnetic compatibility: EN 61326
  • Safety compliance: IEC 61010-1: Overvoltage category II, Pollution Degree 2. IEC 61010-2-030: Measurement 600V CAT IV / 1000V CAT III IEC 61557-1, IEC 61557-2
  • This Class II (double insulated) instrument is supplied with a Class 1 (grounded) power cord. The protective earth terminal (ground pin) is not connected internally. The extra pin is for added plug retention only.
