Fluke 1550C FC 5kV Insulation Tester Kit

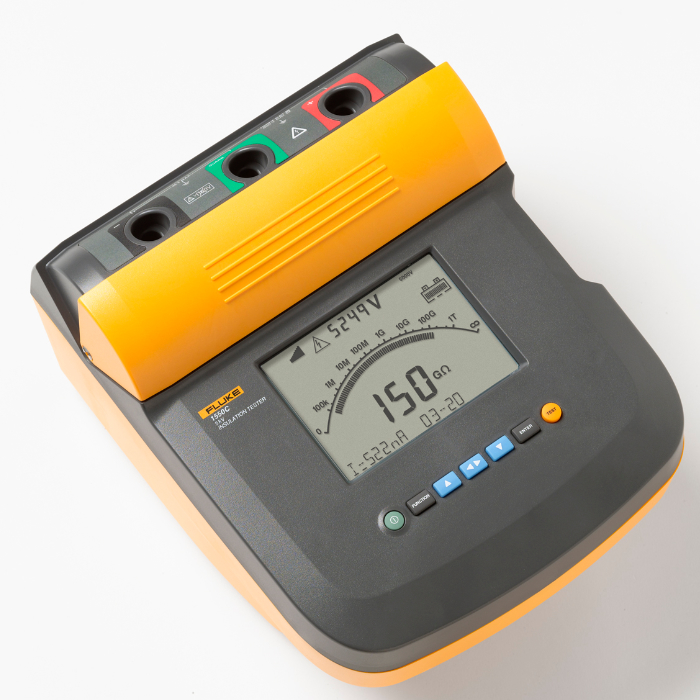

Fluke 1550C FC 5kV Insulation Tester

The Fluke 1550C FC 5kV Insulation Tester Kit performs digital insulation testing up to 5kV with users able to transfer data to a smart device via the included IR3000FC Connector and FlukeConnect App. Also included in the kit is a Fluke hard carry case (IP67 rated) and high voltage test leads. The Fluke 1550C FC is designed to improve user safety and save time whilst installing high voltage equipment such as switchgear, motors, generators and cables. The Fluke 1550C is able to perform test voltage testing at selectable 50V steps from 250V to 1000V and 100V steps above 1000V.

Fluke IR3000FC Connector

Using the included Fluke IR3000FC Connector users are able to wirelessly transfer data from the Fluke 1550C to a smart device. Users are able to immediately graph, save and share any readings with other team members via a smart device.

The Fluke 1550C allows users to measure a wide range of parameters such as capacitance from 0.01μF to 15μF, leakage current from 1nA to 2mA and resistance measurements up to 1TΩ/2TΩ. The included guard systems allows for the filtering out of surface leakage current on high resistance measurements.

Fluke Connect® App

Through the Fluke Connect® App the 1550C is capable of storing, sharing and analysing data, allowing users to prevent and predict issues in maintenance programs to help identify potential equipment failures before they occur.

The Fluke 1550C has a long battery life of up to 750 tests between charges and an internal memory of 99 memory locations allows users to store recordings with user defined labels, allowing easy recall once testing has been completed. Comprehensive results analysis is capable through the Fluke 1550C's large LCD screen with both digital and analogue displays.

The Fluke 1550C has a safety rating of CAT III 1000V and CAT IV 600V and is capable of conducting the entire range of test voltage specified in IEEE 43-2000. A warning function alerts users whether line voltage is present and gives the voltage reading up to 600V AC or DC for increased user safety. With wireless start/stop capability the user is able to work remotely ensure their safety at all times.

Key Features

• Automatic calculation of Dielectric Absorption (DAR) and Polarisation Index (PI) with no additional setup
• Guard system eliminates the effect of surface leakage current on high-resistance measurements
• Selectable test voltages in 50V steps from 250V to 1000V, and 100V steps above 1000V
• Includes a Fluke IR3000 allowing wireless transfer data from Fluke 1550C to a smart device
• CAT III 1000V, CAT IV 600V safety rating
• Warning function alerts the user that line voltage is present and gives the voltage reading up to 600V AC or DC for increased user safety
• Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
• Long battery life gives the user over 750 tests between charges
• Large digital/analog LCD for easy viewing
• Capacitance and leakage current measurement
• Ramp function for breakdown testing
• Resistance measurements up to 2 TΩ
• Timer settings up to 99 minutes for timed tests
• 3-year warranty
