Fluke 1623-2 GEO Earth Resistance Tester

Fluke
SKU: FLUKE16232
  • Accurate earth ground testing with or without stakes
  • IP56 rated for outdoor use
  • Internal storage for 1,500 records
More Info
In Stock - Available Next Day

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

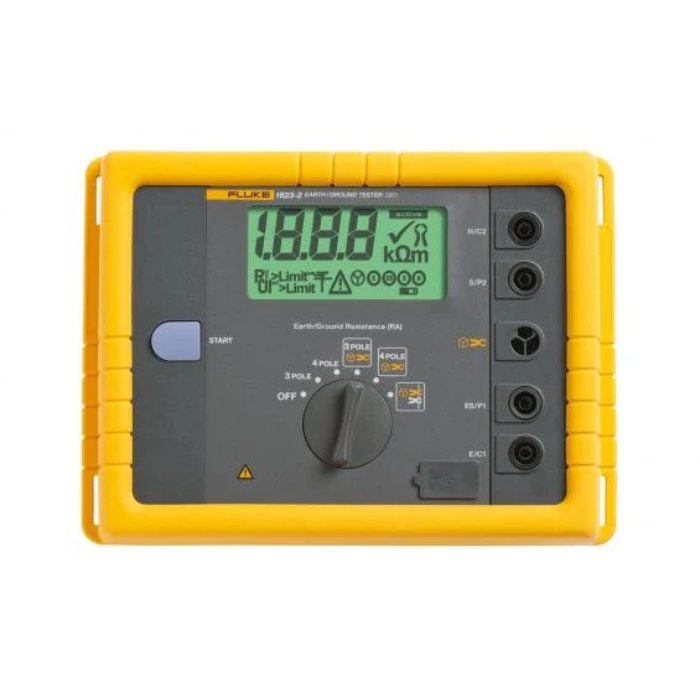

Fluke 1623-2 GEO Earth Resistance Tester

The Fluke 1623-2 GEO Earth Resistance Tester is an IP56 rated unit suitable for both indoor and outdoor earth resistance testing. Highly accurate and sporting a sizeable internal memory, the 1623 impresses with its reliable performance and usability.

This tester can perform selective and stakeless earth ground rod testing, 4 pole soil resistivity testing and 3/4 pole fall-of-potential earth resistance testing. Data collected from each test mode can be stored directly on the integrated memory (1500 records maximum) or exported to PC via USB for further analysis or longterm storage.

As initially mentioned, this model is highly user friendly and possesses some significant quality of life features. This model provides automatic prompts for the required stakes/clamps for each of the 4 test types (3/4 pole fall of potential, 4 pole soil resistivity, selective or stakeless testing) to ensure the correct connections are made. The large rotary dial is also easily manipulated with a gloved hand and test data is displayed in real-time on the large 4 digit LCD.

In summary, this earth resistance tester offers a highly usable instrument with impressive accuracy and functionality, with the unique stakeless testing feature being a highlight of product. To view a kit version of this product, including a variety of additional items, feel free to click here.

Key Features

  • 3 & 4 pole fall-of-potential earth loop resistance testing
  • 4 pole soil resistivity testing
  • Selective earth ground rod testing
  • Stateless earth ground rod testing
  • IP56 ingress protection rating
  • Included carry case
  • USB data transfer to PC

What's In The Box?

  • Fluke 1623 GEO Earth Ground Tester
  • User Manual
  • Batteries
  • Quick Reference Guide
  • 2 x Test Leads
  • USB Cable
Specification
  • Display:1999 digit LCD Display with special symbols, digit height 25 mm
  • Memory: Internal memory storage up to 1500 records accessible via USB port
  • Operating temperature: -10 °C to 50 °C (14 °F to 122 °F)
  • Measuring Method: Current and voltage measurement with probe as IEC61557-5
  • Open circuit voltage: 20/48 V, ac
  • Short circuit current: 250 mA ac
  • Measuring frequency: 94, 105, 111, 128 Hz selected manually or automatic. (AFC) 55 Hz in function R*
  • Noise rejection: 120 dB (162/3, 50 , 60, 400 Hz)
  • Max. overload: Urms = 250 V
  • Measuring time: typ. 8 sec. with a fixed frequency 30 sec. max. with AFC and complete cycle of all measuring frequencies
  • RA 3-pole ground resistance measurement (IEC 1557-5): Resolution - 0.001 Ω to 10 Ω, Range - 0.020 Ω to 19.99 kΩ, Accuracy - ± (2 % rdg + 3 d), Operating Error - ± (5 % rdg + 3 d)
  • RA 4-pole ground resistance measurement (IEC 1557-5): Resolution - 0.001 Ω to 10 Ω, Range - 0.020 Ω to 19.99 kΩ, Accuracy - ± (2 % rdg + 3 d), Operating Error - ± (5 % rdg + 3 d)
  • RA 3-pole selective ground resistance measurement with current clamp (RA): Resolution - 0.001 Ω to 10 Ω, Range - 0.020 Ω to 19.99 kΩ, Accuracy - ± (7 % rdg + 3 d), Operating Error - ± (10 % rdg + 5 d)
  • RA 4-pole selective ground resistance measurement with current clamp (RA): Resolution - 0.001 Ω to 10 Ω, Range - 0.020 Ω to 19.99 kΩ, Accuracy - ± (7 % rdg + 3 d), Operating Error - ± (10 % rdg + 5 d)<
  • Stakeless ground loop measurement: Resolution - 0.001 Ω to 10 Ω, Range - 0.020 Ω to 19.99 kΩ, Accuracy - ± (7 % rdg + 3 d), Operating Error - ± (10 % rdg + 5 d)
