Fluke 1623-2 GEO Earth Ground Resistance Tester Kit

Fluke
SKU: FLUKE16232KIT
  • Kit additions include cable reels, stakes & clamps
  • Complete stakeless testing
  • Onboard data storage & USB/PC export functionality
More Info
Typically ships in 7-10 working days

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

Fluke 1623-2 GEO Earth Ground Resistance Tester Kit

Fluke 1623-2 GEO Earth Ground Resistance Tester Kit is a complete bundle, including every item you need to begin testing immediately. The addition of cable reels, earth ground stakes and clamps provides all of the functionality required for earth ground testing within a variety of applications and settings.

The 1623-2 boasts an impressively sized internal memory, able to store up to 1500 records concurrently. A USB interface allows for the unit to connect to PC and export records for further analysis and storage. The rugged IP56 rated housing offers protection from dust and moisture ingress, allowing for external or internal use within your typical industrial environment.

This tester can perform selective and stakeless earth ground rod testing, 4 pole soil resistivity testing and 3/4 pole fall-of-potential earth resistance testing. The design of the unit is user friendly, with a large 4 digit LCD display showing values, battery levels, sound levels and units. The primary mode selection switch is a well-sized tactile rotary dial, meaning that it can be user even with a gloved hand.

In conclusion, this kit offers great value to those looking for a well-equipped and accuracte tester, with all the neccessary accessories to begin testing immediately.

Key Features

  • 3 & 4 pole fall-of-potential earth loop resistance testing
  • 4 pole soil resistivity testing
  • Selective earth ground rod testing using single clamp
  • Stateless earth ground rod testing using 2 clamps
  • IP56 ingress protection rating for outdoor use
  • Included professional carry case
  • Data storage and USB transfer for PC

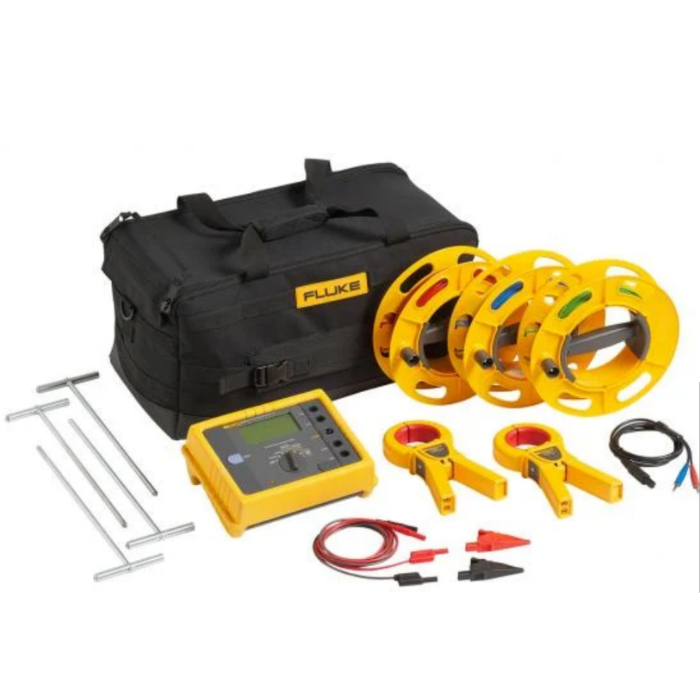

What's In The Box?

  • Fluke 1632 GEO Earth Ground Tester
  • User Manual
  • Batteries
  • Quick Reference Guide
  • 2 x Clamps
  • USB Cable
  • C1620 Professional Carrying Case
  • 4 x Earth Ground Stakes
  • 3 x Cable Reels
Specification
  • Display:1999 digit LCD Display with special symbols, digit height 25 mm
  • Memory: Internal memory storage up to 1500 records accessible via USB port
  • Operating temperature: -10 °C to 50 °C (14 °F to 122 °F)
  • Measuring Method: Current and voltage measurement with probe as IEC61557-5
  • Open circuit voltage: 20/48 V, ac
  • Short circuit current: 250 mA ac
  • Measuring frequency: 94, 105, 111, 128 Hz selected manually or automatic. (AFC) 55 Hz in function R*
  • Noise rejection: 120 dB (162/3, 50 , 60, 400 Hz)
  • Max. overload: Urms = 250 V
  • Measuring time: typ. 8 sec. with a fixed frequency 30 sec. max. with AFC and complete cycle of all measuring frequencies
  • RA 3-pole ground resistance measurement (IEC 1557-5): Resolution - 0.001 Ω to 10 Ω, Range - 0.020 Ω to 19.99 kΩ, Accuracy - ± (2 % rdg + 3 d), Operating Error - ± (5 % rdg + 3 d)
  • RA 4-pole ground resistance measurement (IEC 1557-5): Resolution - 0.001 Ω to 10 Ω, Range - 0.020 Ω to 19.99 kΩ, Accuracy - ± (2 % rdg + 3 d), Operating Error - ± (5 % rdg + 3 d)
  • RA 3-pole selective ground resistance measurement with current clamp (RA): Resolution - 0.001 Ω to 10 Ω, Range - 0.020 Ω to 19.99 kΩ, Accuracy - ± (7 % rdg + 3 d), Operating Error - ± (10 % rdg + 5 d)
  • RA 4-pole selective ground resistance measurement with current clamp (RA): Resolution - 0.001 Ω to 10 Ω, Range - 0.020 Ω to 19.99 kΩ, Accuracy - ± (7 % rdg + 3 d), Operating Error - ± (10 % rdg + 5 d)<
  • Stakeless ground loop measurement: Resolution - 0.001 Ω to 10 Ω, Range - 0.020 Ω to 19.99 kΩ, Accuracy - ± (7 % rdg + 3 d), Operating Error - ± (10 % rdg + 5 d)
Label Type Size Download
pdf FLUKE-1623-1625-SPEC pdf 1.1 MB Download
