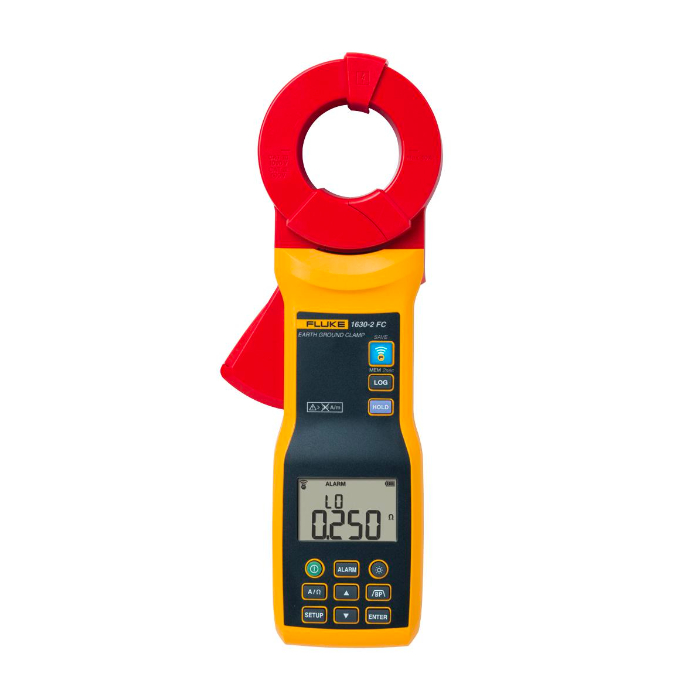

Fluke 1630-2 FC Earth Ground Clamp

Fluke
SKU: FLUKE1630
  • Stakeless earth ground loop & AC leakage current clamp
  • Store up to 32,760 measurements onboard
  • Set custom alarm thresholds
More Info
In Stock - Available Next Day

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

Fluke 1630-2 FC Earth Ground Clamp

The Fluke 1630-2 FC Earth Ground Clamp offers completely stakeless earth ground resistance and AC leakage current testing. With the ability to log up to 32,760 records within the device, the 1630-2 FC enables you to test the grounding components of an electrical system where placing auxiliary testing stakes is not an option.

The stakeless measurement approach enhances the safety and reduces testing times by removing the need to disconnect parallel grounds. The specially designed jaw fits around the earth ground wire or bus bar, with a known voltage induced by the clamp, allowing the tester to determine earth ground loop resistance.

The heavy-duty clamp jaw will stay in alignment even with daily use within industrial environments. The jaws themselves offer a wide opening to ensure access for large conductors, however the slimline design of the overall unit means it’s still suitable for use in more crowded spaces.

This clamp features the ability to set custom low/high alarm settings, allowing for quick evaluation of measured values. The device also sports Fluke Connect compatibility, meaning it can connect wirelessly via the Fluke app to your mobile device or tablet. Through your mobile interface, measurements can be viewed, stored and shared via Fluke Connect Cloud including GPS location data.

The Fluke 1630-2 FC Earth Ground Clamp is a strong choice for looking to reduce testing times, enhance safety and benefit from the raft of powerful Fluke features.

Key Features

  • Stakeless measurement
  • AC leak current measurement
  • Heavy-duty clamp with large jaws
  • Store up to 32,760 measurements
  • Custom user-defined alarm values
  • Up to 15 hours battery life
  • Fluke Connect compatible
  • Band-pass filter removes unwanted noise from AC leakage current measurement

What's In The Box?

  • Fluke 1630-2 FC Earth Ground Clamp with Fluke Connect
  • Hard Case
  • Loop Resistance Standard
  • 4 AA Batteries
  • Safety Information
  • Guide & Quick Reference Document
Specification
  • Maximum voltage to earth ground: 1000V
  • Battery type: 4 x 1.5 V AA alkaline IEC/EN LR6
  • Battery life: More than 15 hours*
  • Frequency range: 40 Hz to 1 kHz
  • Ingress protection: IEC/EN 60529: IP30 with jaw closed
  • LCD digital reading: 9999 counts
  • LCD refresh rate: 4/s
  • Temp: operating -10 °C to +50 °C (14 °F to +122 °F)/storage -20 °C to +60 °C (-4 °F to +140 °F)
  • Operating humidity: Non condensing (<10 °C) (< 50 °F)/≤90 % RH (at 10 °C to 30 °C [50 °F to 86 °F])/≤75 % RH (at 30 °C to 40 °C [86 °F to 104 °F])/≤45 % RH (at 40 °C to 50 °C [104 °F to 122 °F]) (Non condensing)
  • Altitude: operating - 2000m/storage 12,000m
  • Reference temp: 23 °C ±5 °C (73 °F ±9 °F)
  • Temp coefficient: 0.15 % X (specified accuracy)/ °C (<18 °C or >28 °C ([<64.4 °F or >82.4 °F])
  • Overload indication: OL
  • Display Reading Specification with Loop Resistance Standard: Input (Ω) 0.474/0.5/10/100 - minimum 0.417/0.443/9.55/96 - maximum 0.531/0.558/10.45/104.0
  • Data logging capacity: minimum of 32,760 measurements
  • Data logging interval: 1 second to 59 minutes and 59 seconds
  • Safety: IEC/EN 61010-1: Pollution Degree 2 IEC/EN 61557-1/IEC/EN 61010-2-032: CAT IV 600 V / CAT III 1000 V
  • Current clamp for leakage current measurements: IEC/EN 61557-13: Class 2, ≤30 A/m
  • Resistance to Earth: IEC/EN 61557-5
  • Effectiveness of the protective measures: IEC/EN 61557-16: cutoff frequency 20 kHz (-3 dB)
  • Electromagnetic compatibility: IEC/EN 61326-1: Portable Electromagnetic Environment CISPR 11: Group 1, Class B, IEC/EN 61326-2-2

Wireless Radio

  • Frequency range: 2412 MHz to 2462 MHz
  • Output power: <10 mW
  • Radio frequency certification: FCC ID:T68-FBLE IC:6627A-FBLE

General Specification

  • Conductor size: 40mm approx
  • Dimensions: 283 mm x 105 mm x 48 mm (11.1 in x 4.1 in x 1.9 in)
  • Weight: 880g
  • Warranty: 1 year
