Fluke 179 IMSK Industrial Multimeter Service Kit

Fluke 179 IMSK Industrial Multimeter Service Kit

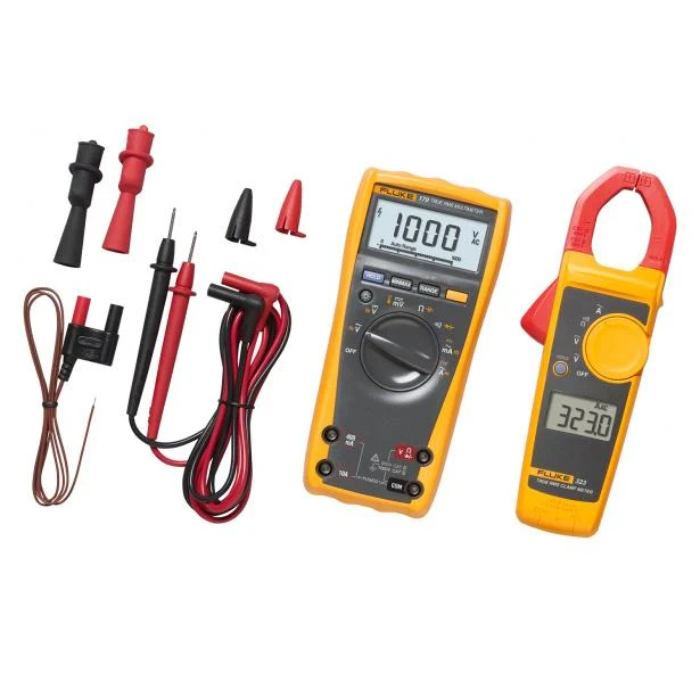

The Fluke 179 IMSK Industrial Multimeter Service Kit combines the Fluke 179 True-RMS digital multimeter and the Fluke 323 True-RMS Clamp meter. Both the Fluke 179 and the Fluke 323 are rugged, reliable and accurate, as well as being easy to operate.

Fluke 179 True-RMS digital multimeter

The Fluke 179 True-RMS dismal multimeter is a comprehensive measurement tool capable of measuring a number of parameters including, AC current, AV voltage, frequency, capacitance, resistance, continuity and diode. The unit has a built in thermometer to measure temperature reducing the need to carry a separate instrument. The Fluke 179 has a safety rating of CAT IV to 600V and CATIII to 1000V and can alert the user to unsafe voltage or voltage overload with the onscreen symbol.

The large backlit screen shows users the readings in digital and barograph form, as well as display hold and auto hold. Additionally, the Fluke 179 can also record minimum, maximum and average values, providing a clear picture of the system performance. The smoothing mode helps the user to filter rapidly fluctuating input values.

Key Features Fluke 179 True-RMS digital multimeter

• AC/DC voltage range: 0 to 1000V
• AC/DC current range: 0 to 10A
• Resistance range: 50MΩ
• Capacitance range: 0 to 10,000µF
• Frequency range: 0 to 100kHz
• Temperature: -40ºC to 400ºC
• Readings given in mV and mA decimals
• True RMS measurement
• Auto and manual ranging
• large backlit digital/analogue screen
• Minimum/maximum/average readings
• 0.09% basic accuarcy
• Smoothing mode for fluctuating inputs
• Auto hold and display hold
• Warnings for unsafe voltage and voltage overload
• CAT IV 600V and CAT III 1000V

Fluke 323 True-RMS Clamp meter

The Fluke 323 True RMS clamp meter is a basic, lightweight clamp meter that can measure up to 400A, AC/DC voltage top to 600V and resistance up to 4000Ω as well as performing continuity testing. Operated with a simple dial, the Fluke 323 offers users two different ranges giving greater flexibility when measuring resistance and the True RMS function allows for greater accuracy when assessing AC values.

Test readings are taken with the supplied with test leads and probes and displayed on the digital screen which also features a data hold. The fluke 323 also has a safety rating of CAT IV up to 300V and CAT III up to 600V and its rugged design make the it suitable for challenging environments. With its light and portable design the Fluke 323 is suitable for use in tight spaces.

Key Features Fluke 323 True-RMS Clamp meter<

• AC current measurement: Up to 400A
• AC/DC voltage measurement: Up to 600V
• Resistance measurement: Up to 4000Ω
• Continuity test
• True-RMS measurement
• Digital screen with data hold
• Safety rating: CAT III 600V, CAT IV 300V
