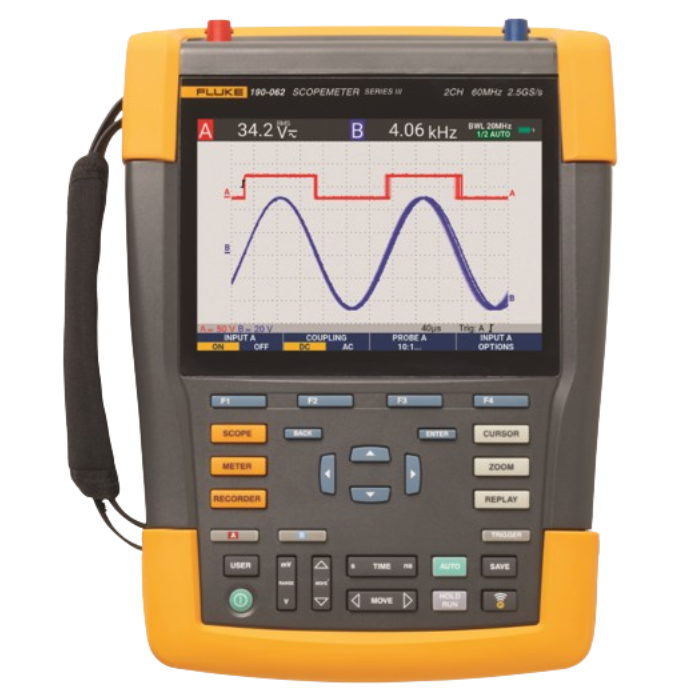

Specification
Input Voltage Range
- Rated maximum floating voltage - CAT III 1000V/CAT IV 600V (maximum voltage between any contact and earth-ground voltage level)
- Probe input voltage VPS410-II - CAT III 1000V/CAT IV 600V (maximum voltage between standard 10:1 probe tip and reference lead)
- Probe input voltage VPS421 - CAT III 1000V/CAT IV 600V (maximum voltage between probe tip or reference lead to GND, 2000V max between probe tip and reference lead)
- Maximum BNC input voltage - CAT IV 300V (maximum voltage on BNC input directly)
- Maximum voltage on meter input - CAT III 1000V/CAT IV 600V (safety designed banana input connectors)
Memory Save and Recall
- Memory locations (internal) - 30 waveform memories plus 10 recording memories plus 9 screen copy memories
- 30 waveform memories - Each memory can contain up to 2 or 4 waveforms plus corresponding setups
- 10 recording memories - Each may contain: a 100 Screen Replay sequence, or a ScopeRecord Roll-mode recording (2 or 4 traces),
or a TrendPlot recording of up to 4 measurements
- External data storage - On PC, using FlukeView™-2 Software, or direct storage on external flash memory drive (maximum 32 GB)
through USB host port
- Screencopies - On PC, using FlukeView™-2 Software, or internally (in instrument) which can be copied on to external flash memory drive as .BMP-file, through USB host port
- Volatility - Saving is done in non-volatile Flash-ROM and all data is secured, independent of battery or power status
- Real-time clock - Provides date and time stamp information for ScopeRecord, for 100 Screen Replay sequences and for TrendPlot recordings
Case
- Design - Rugged, shock-proof with integrated protective holster. Handstrap and hangstrap included as standard.
Kensington lock supported to lock down instrument when left unattended
- Drip and dust proof - IP51 according to IEC60529
- Shock and vibration - Shock 30g, vibration (sinusoidal) 3g/ 0.03g2/Hz (Random), according to MIL-PRF-28800F Class 2
- Display size - 133mm x 90mm (5.3in x 3.5in) LCD
- Resolution - 1120 pixels x 765 pixels
- Brightness - User-adjustable, up to 300 cd/m2
Mechanical Data
- Size - 265mm x 192mm x 70mm (10.5in x 7.6in x 2.8in)
- Weight (including battery) - 2.1kg (4.6lb)
Power
- Line Power - Universal mains adapter/battery charger BC190/830 included, with detachable 2-wire power cords 100Vac to 240Vac, ±10 %, 50-60Hz
- Battery Power - Re-chargeable Li-Ion battery (included). Battery swappable through easily accessible battery door at the rear of the instrument
- Battery type (incl.) and capacity (+opt. battery) - BP290: 10.8V, 2500mAh
- Battery charge indicator - Battery has built-in status indicator for use with external charger, next to battery status indicator on instrument screen
- Battery operating time (with backlight low) - Up to 3.5 using BP290 (included), up to 7 hours using BP291 (optional)
- Battery charging time - 2 1/2 hours using BP290; 5 hours using BP291
- Battery power saving functions - Auto ‘power down’ with adjustable power down time. Automatic ‘display off’ with adjustable power down time. On-screen battery power indicator
Safety
- EN61010-1, Pollution Degree 2; IEC61010-2-030: CAT IV 600V/CAT III 1000V
Environmental
- Operating temperature - Battery discharging: 0°C to 40°C (32°F to 104°F), Battery charging: 0°C to 40°C (32°F to 104°F)
- Storage temperature - -20°C to 60°C (-4°F to 140°F)
- Humidity - 0°C to 10°C (32°F to 50°F): noncondensing, 10°C to 30°C (50°F to 86°F): 95% (±5%), 30°C to 40°C (86°F to 104°F): 75% (±5%), 40°C to 50°C (104°F to 122°F): 45% (±5%)
- Maximum operating altitude - CAT IV 600V, CAT III 1000V: up to 2000m (6,600feet), CAT IV 300V, CAT III 600V, CAT II 1000V: up to 4000m (13,000 feet)
- Maximum storage altitude - 12km (40,000ft)
- Electro-Magnetic Compatibility - IEC 61326-1: Industrial; CISPR 11: Group 1, Class A; Korea (KCC): Class A Equipment (Industrial Broadcasting and Communication Equipment): USA (FCC): 47 CFR 15 subpart C
- Interfaces - Two USB-ports provided. Ports are fully insulated from instrument’s floating measurement circuitry. USB-host port directly connects to external flash memory drive (up to 32GB) for storage of waveform data, measurement results, instrument settings and screen copies. Alternatively, this USB-A port may be used to connect a WiFi. Adaptor for wireless PC connectivity. A mini-USB-B is provided which allows for interconnection to PC for remote control and data transfer under PC-control using FlukeView-2.
- Probe calibration output - Dedicated probe-cal output with reference contact provided, fully insulated from any measurement input channel. Generator Output: 1.225Vpp/500Hz square wave
- Warranty - 3 years on main instrument, 1 year on battery and accessories
|
