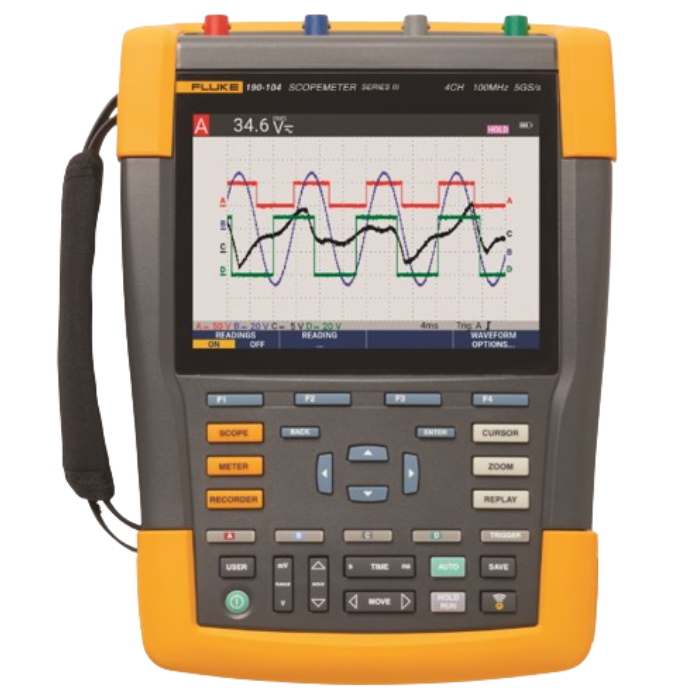

Fluke 190-104-III ScopeMeter Portable Oscilloscope 100MHz
The Fluke 190-104-III ScopeMeter has been designed with high functionality and performance in mind, with the highest available safety ratings and versatility in a range of environments combining into an effective test tool. It builds upon the 190-102-III, adding 2 scope inputs on top of the two that are already offered, as well as a different battery that extends the battery life by up to 3 hours. Suitable for a wide range of troubleshooting tasks, the ScopeMeter can capture noise and other potential issues thanks to a 5.0GS/s and 200ps resolution. An IP51 rating protects the tool from water droplets, dust, humidity, and fluctuating temperatures, which enhances the capabilities across diverse job sites. An upgraded gigasamples per second rate from 1.5GS/s to 5.0GS/s, as well as battery life of 7 hours offers more than the 190-102-III.
Designed for use in the industrial electronics sector, the 190-104 can troubleshoot on Transducers and Sensors, Loop Controllers, and Calibrated Gauges. The bandwidth of 100MHz, combined with the four scopes and an in-built ability to run power measurements, highlights the versatility of the tool for a variety of tasks. When the device is in 'Scope' mode, each channel is able to store up to 10,000 samples, meaning that the 190-104 can hold around 40,000 samples. These can then be compared against other findings in order to consolidate findings and inspect the detailed waveforms. The oscilloscope can run up to 4 automatic scope measurements simultaneously.
The Oscilloscope is also equipped with these exciting features:
- Connect-and-View - this functionality enables precise triggering automatically by recognizing signal patterns. Users are relieved of the need to manually press a button, yet they can witness a reliable and consistent display of almost any signal.
- TrendPlot - this serves as a digital recorder eliminating the need for paper and capable of storing data for up to 22 days, facilitating users in identifying intermittent faults. Pinpointing such faults can be difficult, but the ScopeMeter excels in effectively locating and diagnosing these issues.
- ScopeRecord - the ScopeRecord memory can accommodate up to 30,000 or more data points per channel, adeptly capturing intermittent events and glitches as brief as 8 nanoseconds.
Fluke Connect-and-View
If the wrong settings are used on an oscilloscope, the wrong measurement data will be displayed which can severely impact the accuracy of results. Connect-and-View can recognise signal patterns, set up the correct triggering, and provide a stable and accurate display. The user can sit back as Connect-and-View automatically recognises signal changes.
Optional FlukeView
FlukeView can expand the power of Fluke's testing tools, by addressing the demands for reporting and documentation through documenting, storing, and the analysis of readings or measurements.
By selecting the kit option from the drop-down menu above, you will receive a code for the full version of FlukeView, which allows a user to edit an existing form or create a new form to customize the report to individual needs.
