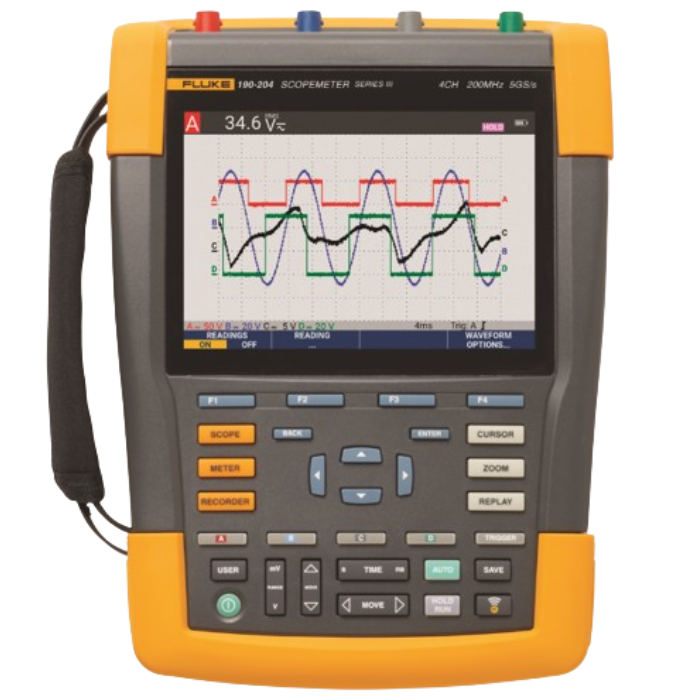

Fluke 190-204-III ScopeMeter Portable Oscilloscope 200MHz

Fluke
SKU: FLUKE190204-CONF
  • Equipped with a 5.0GS/s sampling rate, and a 200ps resolution which is well-suited to deal with troubleshooting issues
  • The 190-204 has a total of four scopes which are able to collectively store up to 40,000 samples for later analysis
  • Choose between the standard version of the product, or opt for a kit including a carry case, WiFi USB and FlukeView software
More Info

Fluke 190-204-III ScopeMeter Portable Oscilloscope 200MHz

The Fluke 190-204-III ScopeMeter has been expertly designed with high-performance and functionality in mind, built with the highest available safety ratings and the versatility to perform in a wide range of difficult and diverse environments. The 204 is one of the most advanced members of the 190-XXX-III range, running 4 scope inputs and a Li-Ion battery with a life of 7 hours. The tool can capture noise and other disturbances thanks to a 5.0GS/s and a 200ps resolution, with an IP51 ratimg ensuring that it is protected from humidity, dust, fluctuating temperatures, and water droplets. Additionally, the 204 offers four isolated inputs that run on up to 1000V.

Designed for use in the industrial electronics sector, the 190-104 can troubleshoot on Transducers and Sensors, Loop Controllers, and Calibrated Gauges. The bandwidth of 100MHz, combined with the four scopes and an in-built ability to run power measurements, highlights the versatility of the tool for a variety of tasks. When the device is in 'Scope' mode, each channel is able to store up to 10,000 samples, meaning that the 190-104 can hold around 40,000 samples. These can then be compared against other findings in order to consolidate findings and inspect the detailed waveforms. The oscilloscope can run up to 4 automatic scope measurements simultaneously.

The 190-204 can troubleshoot on a wide range things in both the Industrial Electronics and Electronic Field Service sectors, and can be used for these specific things:

  • Automation - PLC's, Sensors, Transducers
  • Power Electronic Controls - Inverter Based; Variable Speed Drive Controllers, Uninteruptable Power Supplies, Solar Inverters, Backup Power Systems
  • Medical Imaging - X-Ray, MRI, Ultrasound Imaging Equipment
  • Avionics - Flight Line Navigation Systems, Communication Systems, Radars, On-Board Aircraft Control Systems
  • A/V & Security Systems - Retail Security Devices, Surveilance and Monitoring Equipment, RFID

With a bandwidth of 200MHz, as well as four input channels and an in-built ability to run power measurements, the 204 is able to store up to 40,000 samples. This is split across the 4 channels, with the results then able to be analysed and insepected by the user.

Fluke Connect-and-View

If the wrong settings are used on an oscilloscope, the wrong measurement data will be displayed which can severely impact the accuracy of results. Connect-and-View can recognise signal patterns, set up the correct triggering, and provide a stable and accurate display. The user can sit back as Connect-and-View automatically recognises signal changes.

Optional FlukeView

FlukeView can expand the power of Fluke's testing tools, by addressing the demands for reporting and documentation through documenting, storing, and the analysis of readings or measurements.

By selecting the kit option from the drop-down menu above, you will receive a code for the full version of FlukeView, which allows a user to edit an existing form or create a new form to customize the report to individual needs.

The 190-204-III Kit Option

The 190-204-III is supplied with a wide range of accessories, such as a Battery Charger/Mains Adaptor, BP291 Battery, and various test leads and clips that are listed in full below in the 'What's in the Box?' section. However, if you opt for the kit option, you will receive all of these accessories, plus a carry case, a code for FlukeView Software, and a Wi-Fi dongle.

Fluke Selection Guide - Decide What Is Best for You

Features 123 124 125 190-062 190-102 190-202 190-104 190-204 190-504
Bandwidth (MHz) 20 40 40 60 100 200 100 200 500
Scope Inputs 2 2 2 2 2 2 4 4 4
Dedicated DDM 2 2 2 1 1 1 - - -
Dual Input Trendplot ✓ ✓ ✓ ✓ ✓ ✓ - - -
Four Input Trendplot - - - - - - ✓ ✓ ✓
ScopeRecord Mode - - - ✓ ✓ ✓ ✓ ✓ ✓
Automatic Capture & Replay Mode - - - ✓ ✓ ✓ ✓ ✓ ✓
Cursors - ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Zoom - - - ✓ ✓ ✓ ✓ ✓ ✓
Bus Health Test Mode - - ✓ - - - - - -
Advanced Power Measurements     ✓ ✓ ✓ ✓ ✓ ✓ ✓
EN61010-1 CAT III Safety Rating 600V 600V 600V 1000V 1000V 1000V 1000V 1000V 1000V
EN61010-1 CAT IV Safety Rating - - - 600V 600V 600V 600V 600V 600V
Battery 7 hr NiMH 7 hr NiMH 7 hr NiMH 4 hr Li0Ion (8 hr Opt) 4 hr Li0Ion (8 hr Opt) 7 hr Li-Ion 7 hr Li-Ion 7 hr Li-Ion 7 hr Li-Ion
Optical RS-232 ✓ ✓ ✓ - - - - - -
Isolated USB Opt Opt Opt ✓ ✓ ✓ ✓ ✓ ✓
Isolated USB Memory - - - ✓ ✓ ✓ ✓ ✓ ✓

Fluke part number: 5282463/5282474

Key Features

  • CAT III 1000V/CAT IV 600V safety rated
  • 60MHz bandwidth
  • 1.25GS/s
  • 10,000 samples per channel waveform
  • Dedicated 5000 Count digital multimeter
  • Connect-and-View for automatic triggering
  • ScopeRecord mode that captures waveform sample data
  • TrendPlot offers trend measurement readings up to 22 days
  • Advanced automatic measurements of power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
  • IP51 rating
  • Li-Ion battery for extended operating time

What's In The Box?

Both the FLUKE-190-204-III and FLUKE-190-062-III-S are supplied with:
  • Fluke 190-204-III ScopeMeter
  • Battery Charger/Mains Adaptor
  • BP291 Battery
  • 4 x VPS410-x Probes (1 x red, 1 x blue, 1 x grey, 1 x green)
  • 2 x Large Jaw Crocodile Clips (1 red, 1 blue)
  • Hangstrap
  • Handstrap
  • Download Information for FlukeView-2 Demo Package
  • USB Interface Cable
The following things are only supplied should you opt for the S kit:
  • CXT293 Protective Carry Case
  • Activation Code for FlukeView Software
  • Wi-Fi Dongle
Specification
Input Voltage Range
  • Rated maximum floating voltage - CAT III 1000V/CAT IV 600V (maximum voltage between any contact and earth-ground voltage level)
  • Probe input voltage VPS410-II - CAT III 1000V/CAT IV 600V (maximum voltage between standard 10:1 probe tip and reference lead)
  • Probe input voltage VPS421 - CAT III 1000V/CAT IV 600V (maximum voltage between probe tip or reference lead to GND, 2000V max between probe tip and reference lead)
  • Maximum BNC input voltage - CAT IV 300V (maximum voltage on BNC input directly)
  • Maximum voltage on meter input - -
Memory Save and Recall
  • Memory locations (internal) - 30 waveform memories plus 10 recording memories plus 9 screen copy memories
  • 30 waveform memories - Each memory can contain up to 2 or 4 waveforms plus corresponding setups
  • 10 recording memories - Each may contain: a 100 Screen Replay sequence, or a ScopeRecord Roll-mode recording (2 or 4 traces), or a TrendPlot recording of up to 4 measurements
  • External data storage - On PC, using FlukeView™-2 Software, or direct storage on external flash memory drive (maximum 32 GB) through USB host port
  • Screencopies - On PC, using FlukeView™-2 Software, or internally (in instrument) which can be copied on to external flash memory drive as .BMP-file, through USB host port
  • Volatility - Saving is done in non-volatile Flash-ROM and all data is secured, independent of battery or power status
  • Real-time clock - Provides date and time stamp information for ScopeRecord, for 100 Screen Replay sequences and for TrendPlot recordings
Case
  • Design - Rugged, shock-proof with integrated protective holster. Handstrap and hangstrap included as standard. Kensington lock supported to lock down instrument when left unattended
  • Drip and dust proof - IP51 according to IEC60529
  • Shock and vibration - Shock 30g, vibration (sinusoidal) 3g/ 0.03g2/Hz (Random), according to MIL-PRF-28800F Class 2
  • Display size - 133mm x 90mm (5.3in x 3.5in) LCD
  • Resolution - 1120 pixels x 765 pixels
  • Brightness - User-adjustable, up to 300 cd/m2
Mechanical Data
  • Size - 265mm x 192mm x 70mm (10.5in x 7.6in x 2.8in)
  • Weight (including battery) - 2.2kg (4.8lb)
Power
  • Line Power - Universal mains adapter/battery charger BC190/830 included, with detachable 2-wire power cords 100Vac to 240Vac, ±10 %, 50-60Hz
  • Battery Power - Re-chargeable Li-Ion battery (included). Battery swappable through easily accessible battery door at the rear of the instrument
  • Battery type (incl.) and capacity (+opt. battery) - BP291: 10.8V, 5000mAh
  • Battery charge indicator - Battery has built-in status indicator for use with external charger, next to battery status indicator on instrument screen
  • Battery operating time (with backlight low) - Up to 3.5 using BP290 (included), up to 7 hours using BP291 (optional)
  • Battery charging time - 5 hours using BP291
  • Battery power saving functions - Auto ‘power down’ with adjustable power down time. Automatic ‘display off’ with adjustable power down time. On-screen battery power indicator
Safety
  • EN61010-1, Pollution Degree 2; IEC61010-2-030: CAT IV 600V/CAT III 1000V
Environmental
  • Operating temperature - Battery discharging: 0°C to 40°C (32°F to 104°F), Battery charging: 0°C to 40°C (32°F to 104°F)
  • Storage temperature - -20°C to 60°C (-4°F to 140°F)
  • Humidity - 0°C to 10°C (32°F to 50°F): noncondensing, 10°C to 30°C (50°F to 86°F): 95% (±5%), 30°C to 40°C (86°F to 104°F): 75% (±5%), 40°C to 50°C (104°F to 122°F): 45% (±5%)
  • Maximum operating altitude - CAT IV 600V, CAT III 1000V: up to 2000m (6,600feet), CAT IV 300V, CAT III 600V, CAT II 1000V: up to 4000m (13,000 feet)
  • Maximum storage altitude - 12km (40,000ft)
  • Electro-Magnetic Compatibility - IEC 61326-1: Industrial; CISPR 11: Group 1, Class A; Korea (KCC): Class A Equipment (Industrial Broadcasting and Communication Equipment): USA (FCC): 47 CFR 15 subpart C
  • Interfaces - Two USB-ports provided. Ports are fully insulated from instrument’s floating measurement circuitry. USB-host port directly connects to external flash memory drive (up to 32GB) for storage of waveform data, measurement results, instrument settings and screen copies. Alternatively, this USB-A port may be used to connect a WiFi. Adaptor for wireless PC connectivity. A mini-USB-B is provided which allows for interconnection to PC for remote control and data transfer under PC-control using FlukeView-2.
  • Probe calibration output - Dedicated probe-cal output with reference contact provided, fully insulated from any measurement input channel. Generator Output: 1.225Vpp/500Hz square wave
  • Warranty - 3 years on main instrument, 1 year on battery and accessories
