Fluke 279 FC True RMS Thermal Multimeter With iFLEX

Fluke
SKU: FLUKE279FC
  • Find and repair electrical faults quickly
  • Built-in thermal imager with 102 x 77 resolution
  • True RMS AC voltage and current measuring non-linear signals
More Info
In Stock - Available Next Day

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

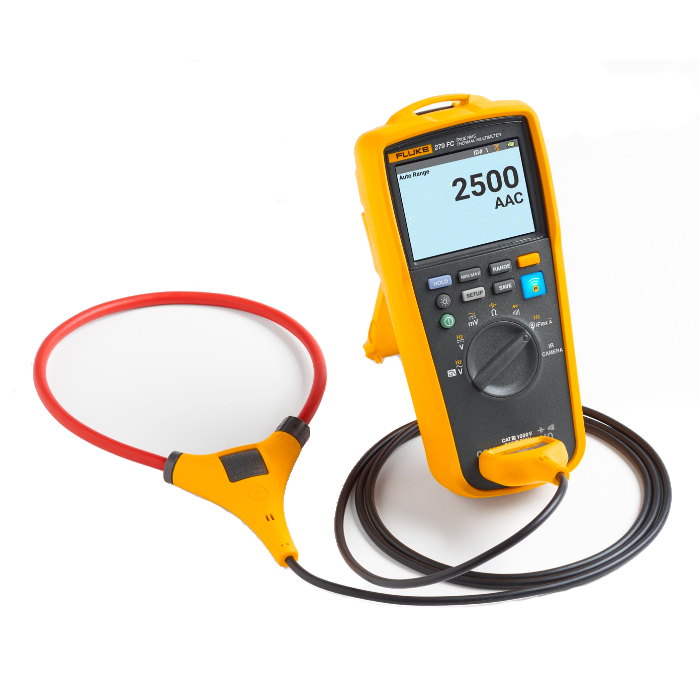

Fluke 279 FC True RMS Thermal Multimeter

The Fluke 279 FC True RMS Thermal Multimeter allows users to identify electrical faults quickly and safely with it's wide range of functionality and built-in thermal imager. Allowing users to identify hot spots on high voltage equipment and transformers, the Fluke 279 FC can detect the heating of wires, fuses, insulators, connectors, splices and switches, unearthing various electrical issues rapidly and from a safe distance.

Designed as a time-saving two-in-one instrument, the Fluke 279 FC is primarily a feature-packed electrical multimeter, boasting a variety of measurement options including AC/DC voltage, resistance, continuity, capacitance, frequency and more. The Fluke 279 FC also includes an iFlex flexible current clamp, allowing AC current measurement up to 2500A in those difficult to reach places.

Utilising it's integral thermal imager, the Fluke 279 FC makes scanning of electrical issues both quick and safe, offering instant visual cues of hot, potentially troublesome areas. With a thermal resolution of 102 x 77 and a measurement range of -10 °C to 200 °C (14 °F to 392 °F), the Fluke 279 FC has an internal memory capable of storing up to 100 images and it's large colour LCD screen ensure images and readings are clearly visible.

Feauturing Fluke Connect, the Fluke 279 FC allows users to wirelessly transmit to a smartphone up to 6.1 m away, allowing test results and measurements to be viewed live on a your smart device or for reports to be generated and forwarded instantly to a customer.

With a CAT III 1000V, CAT IV 600V safety rating and built for durability, the Fluke 279 FC is designed to withstand a 1 m (3 ft) drop, with it's raised rubber holster offering increased protection and offers a three-year standard warranty. With an auto power off function to save power, alongside the 10+ hours lifespan on it's rechargeable lithium ion battery (and a second battery available seperately), the rugid Fluke 279 FC is a great addition to any toolkit.

Fluke part number: 279 FC

Key Features

  • True RMS for voltage and current measurement
  • 15 measurement functions including: voltage AC and DC, resistance, continuity, capacitance, diode test, frequency and more
  • Large colour LCD screen
  • 102 x 77 resolution thermal imager
  • Built in Fluke connect
  • Safety rated CATIII 1000v, CAT IV 600V
  • Built to withstand a 1m (3ft) drop, double insulated with a raised rubber holster
  • Rechargeable lithium ion battery (10+ hours), additional batteries available
  • Auto power off
  • Three year warranty

What's In The Box?

  • Fluke 279 FC True RMS Thermal Multimeter
  • 5.72cm (18in) iFlex Flexible Current probe
  • TL175 Test leads (1 pair)
  • Rechargeable lithium Ion battery and charger
  • Hanging strap
  • Soft carry case
Specification

DMM

  • Basic DC accuracy: 0.09%
  • Bandwidth: 1% 45 Hz to 65 Hz, full time low pass filter
  • Voltage AC/DC: 1000V
  • Current AC: 2500A with included iFlex Flexible current probe
  • Resistance: 50 MΩ
  • Frequency: 100 kHz
  • Capacitance: 9999uF
  • Continuity with beeper: Yes
  • Diode Test: Yes
  • Mix/Max recording: Yes
  • Display hold: Yes

Infrared camera

  • Infrared resolution: 102 x 77
  • Image capture frequency: 8 Hz
  • Field of view: 36º (w) x 27º (h)
  • NETD: <200 mK
  • Centre point: Yes (with centre point temp)
  • Focus mechanism: Fixed focus
  • Temperature range (selectable ºC and ºF): -10ºC to 200ºC (14ºF to 392ºF) Accuracy: +5ºC (9ºF) or (+5% as tested)
  • Emissivity: 0.95 fixed
  • Background compensation: 20ºC fixed
  • Memory storage: Approximately 100 images (internal)
  • File format: Non-radiometric .is2

General Specifications

  • Battery type: Rechargeable lithium ion battery (charge time 4.5 hours)
  • Operating temperature: -10ºC to 50ºC (14 ºF to 122ºF)
  • Storage temperature: -20ºC to 60ºC (-4ºF to 140 ºF) h
  • Relative humidity: 0% to 90% (0ºC to 35ºC) (32ºF to 95ºF) | 0% to 75% (35ºC to 40ºC) (95ºF to 104ºF) | 0% to 45% (40ºC to 50ºC) (104ºF to 122ºF)
  • Altitude 2000 meters (6591 feet)
  • Temperature coefficient: /add 0.1 x specified accuracy for each ºC above 28ºC or below 18ºC (ºF above 82 ºF or below 64ºF)
  • Ingress protection: (IP) IP40 (non-operating)
  • Wireless frequency: 2.4 GHz ISM Band, 20 meter range
  • Certifications: CE, CSA, FCC
  • Safety compliance: IEC 61010-1 Pollution degree 2; IEC 61010-2-033: CATIII 1000 V/CAT IV 600V
  • EMC: EN 61326-1:2012
  • Size: 215.9 x 93.9 x 57.1mm (8.5 x 3.7 x 2.25in)
  • Weight 0.793kg (1.75lb)
  • Warranty: Limited three year warranty
Label Type Size Download
pdf Fluke 279FC Datasheet pdf 1 MB Download
