Fluke 289 IMSK Industrial Multimeter Service Kit

Fluke
SKU: FLUKE289IMSK
  • Combines a multimeter and an AC current clamp to help solve complex problems in electronics, electromechanical equipment, and much more
  • The Fluke 289 IMSK Industrial Multimeter Service Kit enhances productivity on the job and enables the user to save money
  • The IMSK kit is supplied with the Fluke 289, the Fluke i400 A AC Current Clamp, a TL71 Test Lead Set and an AC175 Alligator clip set
More Info
In Stock - Available Next Day

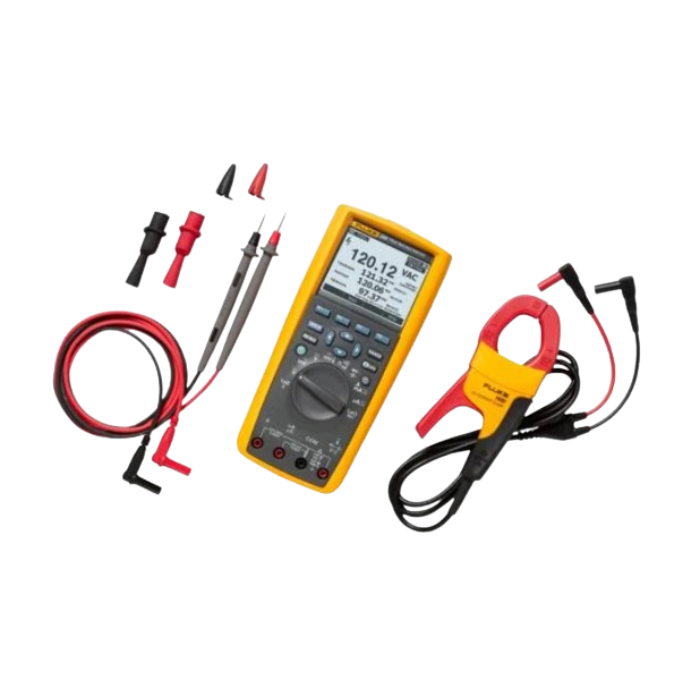

Fluke 289 IMSK Industrial Multimeter Service Kit

The Fluke 289 IMSK Industrial Multimeter Service Kit has been built around the Fluke 289, which is a next-generation high performance industrial multimeter, and the i400 AC Current Clamp. When used in conjunction, these instruments can solve complex problems in electronics, plant automation, power distribution, and electromechanical equipment. The kit is supplied with special accessories, which will save time on the job site with Fluke's efficient and trusted tools. With a lifetime warranty, and a safety rating of CAT III 1000V, CAT IV 600V, the user can feel confident that their Fluke tool is reliable and will last.

The Fluke 289

The Fluke 289 is equipped with high-performance functionalities which make the task at hand a simple one. The 289 can log data, and display it graphically, which allows the user to determine quickly whether anomalies have occurred. With the in-built TrendCapture software, up to 10,000 recorded events can be logged and reviewed, with the ability to zoom in up to 14 times extremely useful for analysis. The Low Pass Filter allows for the simultaneous measurement of voltage and frequency, whether that be on adjustable speed motor drives or other electrically noisy equipment.

The Fluke-i400 AC 400A Current Clamp

The i400 clamp provides accurate current measurements up to 400A AC, without breaking electric circuits. With a high-safety rating, measurements can be taken with confidence and ease, with the supplied AC175 Alligator Clips providing the flexibility to configure leads to individual needs.

Overall, the Fluke 289 Multimeter has true-rms accuracy and advanced functionality that can give you the results you need. When used in conjunction with the Fluke-i400, the 289 becomes a responsive and accurate clamp meter, with accessories like a temperature probe and test leads included.

Fluke part number: FLUKEIMSK

Key Features

  • Kit that is built around the Fluke 289 and the i400 AC Current Clamp
  • This combination helps to solve complex problems in electronics, plant automation, power distribution, and electromechanical equipment
  • The kit includes special accessories to allow the user to be even more productive
  • Provides the ability to log data and show it graphically
  • TrendCapture can display data, and review up to 10,000 recorded events
  • The Low Pass filter allows for accurate voltage and frequency measurements, even if the equipment is noisy
  • The current clamp provides accurate current measurements up to 400A AC without breaking electrical circuits
  • Allows for measurements to be taken safely
  • Has a CAT III 1000V, CAT IV 600V safety rating

What's In The Box?

  • Fluke 289 Industrial Multimeter
  • Fluke i400 400 A AC Current Clamp
  • TL71 Hard Point Test Lead Set
  • AC175 Threaded Alligator Clip Set
Specification

Fluke 289 Specifications

General Specifications

  • Maximum Voltage (between any terminal and earth ground) - 1000V
  • Battery Type - 6 AA alkaline batteries, IEC LR6
  • Battery Life - 100 hours minimum, 200 hours in logging mode
  • Temperature
    Operating - -20°C to 55°C
    Storage - -40°C to 60°C
  • Relative Humidity
    0 to 90% (0°C to 37°C)
    0 to 65% (37°C to 45°C)
    0 to 45% (45°C to 55°C)
  • Electromagnetic Compatibility - IEC 61326-1: Portable
  • Size (HxWxL) - 22.2cm x 10.2cm x 6cm (8.75in x 4.03in x 2.38in)
  • Weight - 870.9g (28oz)

Detailed Specifications

  • DC Volts and AC Volts - Range and Resolution of 50.000mV, 500.00mV, 5.0000V, 50.000V, 500.00V, 1000.0V - Best Accuracy of 0.025% and 0.4% (true-rms)
  • DC Current and AC Current - Range and Resolution of 500.00µA, 5000.0µA, 50.000mA, 400.00mA, 5.0000A, 10.000A - Best Accuracy of 0.15% and 0.7% (true-rms)
  • Temperature (excluding probe) - Range and Resolution of -200.0°C to 1350.0°C (-328.0°F to 2462.0°F) - Best Accuracy of 1.0%
  • Resistance - Range and Resolution of 50.000Ω, 500.00Ω, 5.0000kΩ, 50.000kΩ, 500.00kΩ, 5.0000MΩ, 50.00MΩ, 500.0MΩ - Best Accuracy of 0.05%
  • Capacitance - Range and Resolution of 1.000nF, 10.00nF, 100.0nF, 1.000µF, 10.00µF, 100.0µF, 1000µF, 10.00mF, 100mF - Best Accuracy of 1.0%
  • Frequency - Range and Resolution of 99.999Hz, 999.99Hz, 9.9999kHz, 99.999kHz, 999.99kHz - Best Accuracy of .005%

Additional Features

  • Multiple On-Screen Displays - Yes
  • True-rms AC Bandwidth - 100kHz
  • dBV/dBm - Yes
  • DC mV Resolution - 1 μV
  • Megohm Range - Up to 500MΩ
  • Conductance - 50.00nS
  • Continuity Beeper - Yes
  • Battery/Fuse Access - Battery/Fuse
  • Elapse Time Clock - Yes
  • Time of Day Clock - Yes
  • Min-Max-Avg - Yes
  • Duty Cycle - Yes
  • Pulse Width - Yes
  • Isolated Optical Interface - Yes
  • Auto/Touch Hold - Yes
  • Reading Memory - Yes
  • Log to PC - Yes
  • Interval/Event Logging - Yes
  • Logging Memory - up to 15,000 readings

Fluke i400 Specifications

Specifications

  • Nominal Current Range - 400A
  • Continuous Current Range - 1A - 400A
  • Maximum Non-Destructive Current - 1000A
  • Lowest Measurable Current - 1A
  • Basic Accuracy - 2% + 0.06A, (45-400Hz), (% reading + floor spec)
  • Useable Frequency - 5Hz - 20kHz
  • Output Level(s) - 1mA/A

Safety Specifications

  • Safety - IEC 61010-1: Pollution Degree 2, IEC 61010-2-032 CAT IV 600V, CAT III 1000V
  • Maximum Voltage (between any terminal and earth ground) - 1000V

Mechanical and General Specifications

  • Warranty - 1 year
  • Maximum Conductor Diameter - 32mm (1.25in)
  • Maximum Conductor Size (busbar) - 750 MCM
  • Output Cable Length - 1.5m (59in)
  • Shrouded Banana Plugs - Yes
