Fluke 289 TRMS Industrial Logging Multimeter

Fluke 289 TRMS Industrial Logging Multimeter

The Fluke 289 TRMS Industrial Logging Multimeter is a highly accurate digital multimeter with in built data logging capabilities for up to 15000 results with Flukes onboard TrendCapture. Results can be logged and graphically reviewed and using the included Fluke TrendCapture allows for an 14x zoom to view and analyse the data without the need for a PC

The Fluke 289 is capable of measuring a wide range of parameters including AC and DC Voltage up top 1000V, AC and DC current to 10A, temperature from -200ºC to 1350ºC, resistance from 500Ω to 500MΩ, capacitance from 1nF to 100mF and frequency from 99.99Hz to 999.99kHz.

Used alongside the optional ir3000 FC wireless connector the Fluke 289 is FlukeConnect compatible, allowing users to connect the mulitmeter via their smart device. Users are able to communicate and monitor readings from remote locations. Results can also be shared in real time using ShareLive video call, helping to solve problems quicker and minimise any potential downtime.

The Fluke 289 has a battery life of 100 hours (minimum) and up to 200 hours when in data logging mode. The unit can withstand hazardous 8,000 volt spikes caused by load swtiching and faults on industrial circuits and complies with IEC and ANSI electrical safety standards.

Fluke Connect

The free Fluke Connect App is available on both Android and iOS smartphones and tablets and allows the user to instantly upload results from Fluke smart devices to the FlukeCloud database. This database can be accessed via the app from anywhere in the world so it not only provides a handy, smart database, it also allows colleagues to check and analyse data even when they are not on site.

Key Features

• Share results with ShareLive video call (requires ir3000FC wireless connector (sold separately) and the mobile app Fluke Connect)
• TrendCapture graphically displays logged data sessions allowing for anomalies to spotted
• Zoom up to 14 times with Zoom on trend and analyse data on TrendCapture
• Selectable AC filter (smoothing mode)helps to display a steadier reading when the input reading changing rapidly or noisily
• Low pass filter for accurate voltage and frequency measurements
• Low Volts function Low impedance voltage function
• Log up to 10,000 results without the need to connect to a PC
• Compatible with FlukeConnect and TrendCapture
• AC/DC voltage range: 50mV, 500mV, 5V, 50V, 500V and 1000V
• AC Volts Range: 50mV, 500mV, 5V, 50V, 500V and 1000V
• DC Current Range: 500μA, 5000μA, 50mA, 400mA, 5A, 10A
• AC Current Range: 500μA, 5000μA, 50mA, 400mA, 5A, 10A
• Temperature Range: -200°C to 1350°C (-328°F to 2462°F)
• Resistance Range: 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 50MΩ, 500MΩ
• Capacitance Range: 1nF, 10nF, 100nF, 1μF, 10μ, 100μF, 1000μF, 10mF, 100mF
• Frequency Ranges - 99.99Hz, 999.99Hz, 9.99kHz, 99.99kHz, 999.99kHz
• Peak Capture to record transients as fast as 250μs

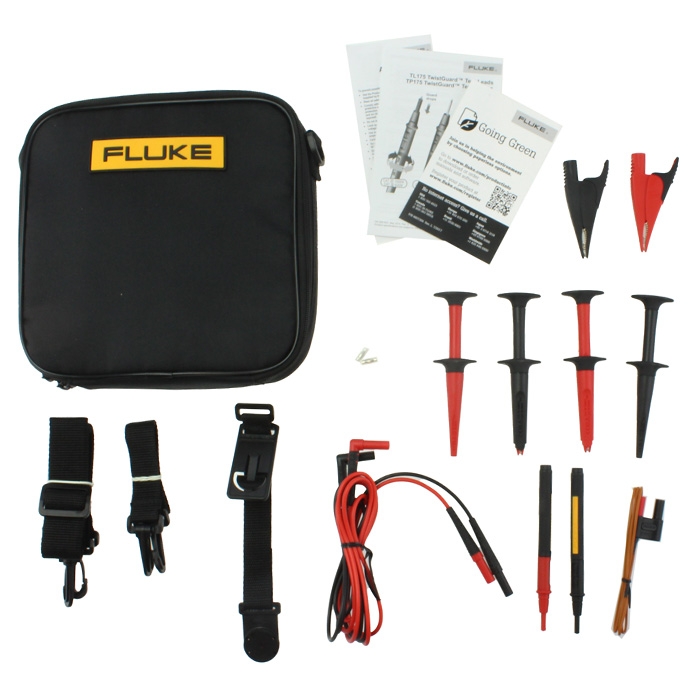

• Test leads and alligator clips included
• FlukeView forms enables you to document, store and analyse individual readings or a series of measurements then convert them into documents
• Large 50,000 count, 1/4 VGA dot matrix display with white backlight
• Adjustable recording and auto thresholds, specify a percentage change in the readings that a begins a new event
• Limited lifetime warranty
