Fluke 3000FC Wireless Digital Multimeter

Fluke
SKU: FLUKE3000FC
  • Measure AC/DC voltage up to 1000V, plus frequency, resistance, continuity and more
  • CAT IV 600V/CAT III 1000V safety rating
  • Compatible with Fluke Connect software
More Info
In Stock - Available Next Day

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

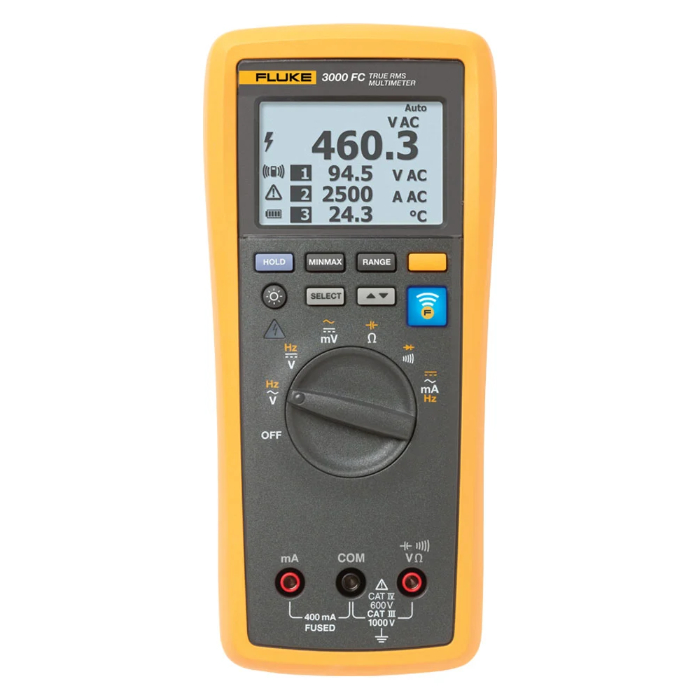

Fluke 3000FC Wireless Digital Multimeter with Fluke Connect™

The Fluke 3000FC wireless digital multimeter with Fluke Connect™ allows professional electricians to perform essential electrical and electronic troubleshooting testing safely and easily. The veristile Fluke 3000FC is able to perform true-RMS voltage and current measurement, alongside frequency, capacitance, resistance, continuity and diode testing.

With a CAT IV 600V/CAT III 1000V safety rating working alongside Fluke Connect™ software, technicians are able to perform testing in hazardous and dangerous conditions from a safe distance away (up to 20M) on up to 3 wireless devices from the same screen, reducing the risk of arc flash by separating the user from hazardous measurement situations.

Fluke Connect™ App

The free Fluke Connect™ App is available on both Android and iOS smartphones / tablets (iOs 4.0 and later and Android 4.3 and above), allowing the user to instantly upload results from Fluke smart devices to the FlukeCloud database. This database can be accessed via the app from anywhere in the world so it not only provides a handy, smart database, it also allows colleagues to check and analyse data even when they are not on site. Data can be captured at a user-set interval between one second and one hour, and using Fluke's ShareLive™, users are able to video call colleagues not on site and share data instantly.

The Fluke 3000FC is a versatile tool that allows the user to perform a wide range of testing, alongside the following compatibale modules, including:

  • iFlex True-rms AC Current Clamp Meter
  • True-rms AC Current Clamp Meter
  • AC Voltage Meter
  • K-Type Temperature Meter
  • AC/DC Current Clamp Meter
  • 2000A DC Current Clamp Meter
  • 4-20 mA DC Current Clamp Meter
  • DC Voltage Meter
  • PC Adaptor

Key Features

  • Full featured multimeter that connects wirelessly to Fluke Connect™ modules
  • AC/DC measurements up to 1000V, AC and DC current and temperature
  • Backlit screen showing up to four readings simultaneously
  • Connects to a smartphone or tablet allowing realtime analysis
  • Safety rated CAT IV 600V, CAT III 1000V and IP54 rated
  • Share the results on Fluke cloud storage and Sharelive video call allowing remote sharing to colleagues not in the field
  • Provides True-RMS voltage and current measurement with 6000-count resolution
  • Continuity, resistance, diode test, capacitance and frequency testing and min/max readings
  • Up to 250 hour battery life running on three AA alkaline batteries

What's In The Box?

  • Fluke 3000FC True-RMS wireless multimeter
  • TL175 test leads
  • AC175 Alligator clips
  • Quick reference guide
Specification

AC Voltage

  • Range/Resolution:
  • 600mV/0.1mV
  • 6.000V/ 0.001V
  • 60.00V/0.01V
  • 600.0V/0.1V
  • 1000V/1V

Accuracy

  • 45Hz to 500Hz: 1.0% +3
  • 500Hz to 1kHz: 2.0% +3

DC Voltage, Continuity, Resistance, Diode Test and Capacitance

  • Millivot: Range/Resolution: 600.0mV/ 0.1mV
  • Accuracy: 0.09% +2
  • Voltage: Range and Resolution:
  • 6.000V/ 0.001V
  • 60.00V/0.01V
  • 600.0V/0.1V
  • 1000V/1V
  • Accuracy: 0.09% +2/0.15% +2

Ohms

  • Range/resolution: 600Ω/ Ω
  • Accuracy: Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer

Ohms

  • Range/resolution
  • 600.0 Ω / 0.1 Ω
  • 6.000 kΩ / 0.001 kΩ
  • 60.00 kΩ / 0.01 kΩ
  • 60.00 kΩ / 0.1 kΩ
  • 600.0 kΩ / 0.001 MΩ
  • 50.00 MΩ / 0.01 MΩ
  • Accuracy: 0.5% +2, 0.5% +2, 1.5% +3

Diode Test

  • Range/resolution: 2.000V/ 0.001V
  • Accuracy: 1% +2

Capacitance

  • Range/resolution:
  • 1000 nF / 1 nF
  • 10.00 μF / 0.01 μF
  • 100.0 μF / 0.1 μF
  • 9999 μF1 / 1 μF
  • Accuracy: 1.2% +2, 10% typical

AC and DC Current

  • mA AC (45 Hz to 1 kHz)
  • Range/resolution: 60.00mA/0.01mA, 400.0 mA3/ 0.1 mA
  • Accuracy: 1.5% |+3
  • mA DC2
  • Range/resolution: 60.00 mA / 0.01 mA, 400.0 mA3 / 0.1 mA
  • Accuracy: 0.5% +3

Frequency

  • Range/resolution:
  • 99.99 Hz/ 0.01 Hz
  • 999.9 Hz/ 0.1 Hz
  • 9.999 kHz/ 0.001 kHz
  • 99.99 kHz/ 0.01 kHz
  • Accuracy: 0.1% +1

Input Characteristics

  • Overload protection: 1100V RMS
  • Input impedance (nominal): >10MΩ <100pF
  • Common mode rejection ratio (1kΩ unbalance): >120dB at DC, 50Hz or 60Hz
  • Normal mode rejection: >60dB at 50Hz or 60Hz
  • Overload protection: 1100V RMS
  • Input impedance (nominal): >10MΩ <100pF
  • Common mode rejection ratio (1kΩ unbalance): >60dB, DC to 60Hz
  • Normal mode rejection: >60dB at 50Hz or 60Hz
  • Overload protection: 1100V RMS
  • Input impedance (nominal): >10MΩ <100pF
  • Common mode rejection ratio (1kΩ unbalance): >120 dB at DC, 50Hz or 60Hz
  • Normal mode rejection: >60dB at 50Hz or 60Hz

Open Circuit Test Voltage

  • Overload Protection: 1100V RMS
  • Input impedance (nominal) <2.7V DC
  • Full Scale Voltage to 6: <0.7V DCMΩ
  • Full scale voltage 50 MΩ: <0.9V DC
  • Typical Short Curcuit Current: <350mA
  • Overload Protection: 1100V RMS
  • Input Impedance (nominal): <2.7V DC
  • Full Scale Voltage to 6MΩ/50MΩ 2.000V DC
  • Typical Short Circuit Current: <1.1mA

mA Function

  • DC Functions: Fused, 44/100A, 1000V FAST Fuse
  • Overload:
  • 600 mA overload for 2 minutes maximum, 10 minutes rest minimum

Min/Max Recording Accuracy:

  • DC Functions: ±12 counts for changes >350 mS in duration
  • AC Functions: ±40 counts for changes >900 mS in duration

General Specifications

  • Maximum Voltage between any Terminal and Earth Ground: 1000V DC or AC RMS
  • Ω fuse protection from A inputs: 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only
  • Display LCD: Update Rate: 4/Sec, Volts, amps and ohms: 6000 Counts, Frequency: 10,000 Counts, capacitance: 1000 Counts
  • Update Rate: 4/Sec
  • Volts, amps and ohms: 6000 Counts
  • Frequency: 10,000 Counts
  • Capacitance: 1000 Counts
  • Battery Type: Three AA Alkaline Batteries
  • Battery Life: Minimum 250 hours
  • RF Communications: 2.4 GHZ ISM Band
  • RF Communication Range: Open air, unobstructed up to 20m/ Obstructed, Sheetrock wall up to 6.5m
  • Obstructed, concrete wall, or steel electrical enclosure: Up to 3.5m
  • Temperature: Operating -10°C to 50°C/ Storage -40°C to 60°C
  • Temperature Coefficient: 0.1 X (specified accuracy) /°C(< 18°C or >28°C)
  • Relative Humidity: 0% to 90% (0°C to 35°C), 0% to 75% (35°C to 40°C), 0% to 45% (40°C to 50°C)
  • Altitude: Operating 2000m, Storage 12,000m
  • Electromagnetic compatibility EMI, RFI, EMC, RF: EN 61326–1:2006, EN 61326–2–2:2006 ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008 FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID : FCC: T68–FDMMBLE IC: 6627A–FDMMBLE
  • Certifications: CSA, FCC ,CE
  • Ingress Protection (IP) Rating: IP54
  • Pollution Degree: 2
  • Size (HxWxL): 4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in)
  • Weight 340g
  • Warranty: 3 years
Label Type Size Download
pdf Fluke 3000FC datasheet pdf 2 MB Download
